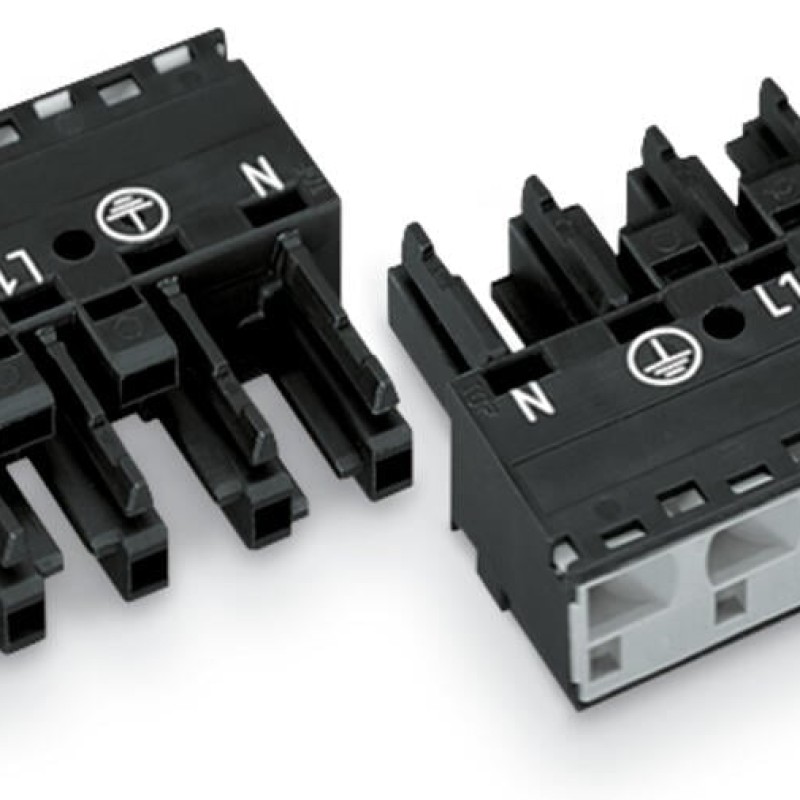

Description 770-405 Socket;5-pole;Cod. A;black

Female connector/socket WINSTA® MIDI A coding

Use effective pluggable connections instead of laborious screw connections: With the WINSTA® MIDI female connector/socket with protection type IP20. Our pluggable installation connectors with spring pressure connection technology function without screw connections. They allow resource-efficient, error-free installation in a large number of possible uses. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20 (When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). Standard mains applications for almost any domain of use can be implemented with WINSTA® MIDI pluggable installation connectors with A coding. The rated current and voltage are important criteria for selecting a pluggable installation connector: They provide information about possible domains of use and applications. This product has a current rating of 25 A – as a result it is also suitable for high power loads. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates safe electrification. Due to the included test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and costs.

Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!

The WINSTA® Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Use of this pre-assembled system reduces assembly times and errors during installation at the construction site. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO.

protection against mismating eliminates errors
pre-assembled versions
with A coding for a large number of uses
custom-engineered solutions
quick replacement of defective units during ongoing operation

Main attributes 770-405 Socket;5-pole;Cod. A;black

Connection 1

Actuation type Push-in

Conductor entry direction to mating direction 0 °

Connection technology Push-in CAGE CLAMP^®

Fine-stranded conductor 0.5 … 4 mm² / 20 … 12 AWG

Fine-stranded conductor; with ferrule; push-in termination 1.5 mm² / 16 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 1.5 mm² / 20 … 16 AWG

Fine-stranded conductor; with uninsulated ferrule 0.25 … 2.5 mm² / 20 … 14 AWG

Nominal cross-section 4 mm² / 12 AWG

Pole number 5

Solid conductor 0.5 … 4 mm² / 20 … 12 AWG

Solid conductor; push-in termination 1.5 … 4 mm² / 16 … 12 AWG

Stranded conductor 0.5 … 2.5 mm² / 20 … 14 AWG

Strip length 9 mm

Connection data

Clamping units 5

Total number of potentials 5

Environmental requirements

Continuous operating temperature -35 … +85 °C

Note on continuous operating temperature Insulating parts for temperatures ≤ 105 °C

Processing temperature -5 … +40 °C

Material data

Clamping spring material Chrome-nickel spring steel (CrNi)

Color black

Contact material Copper or copper alloy; surface-treated

Contact plating Tin

Cover color gray

Fire load 0.272 MJ

Flammability class per UL94 V0

Insulation material (main housing) Polyamide (PA66)

Material group I

Weight 15.8 g

Mechanical data

Coding A

Marking N ⏚ L1 L2 L3

Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)

Number of mating cycles 200, without resistive load

Potential marking N ⏚ L1 L2 L3

Protection type IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Retention force of a plug-in connection Locked: > 80 N

Unmating force of a plug-in connection Unlocked: approx. 20 … 70 N (depending on pole number)

Use General mains applications

Variable coding Yes

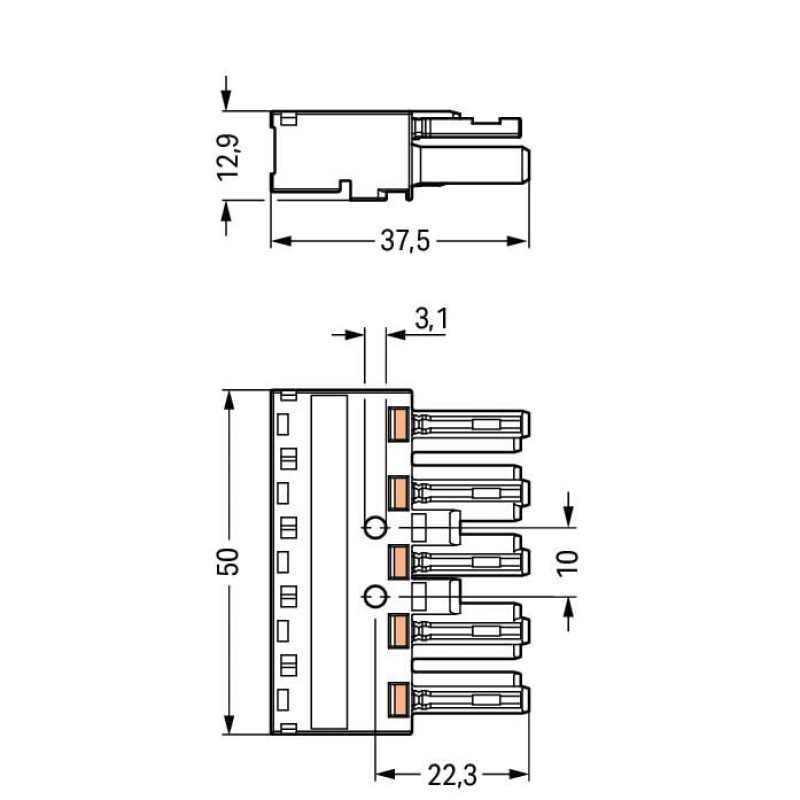

Physical data

Depth 37.5 mm

Height 12.9 mm

Pin spacing 10 mm

Width 50 mm

Plug-in connection

Connector (connection type) for conductor

Contact type (pluggable connector) Female connector/socket

Locking lever Can be retrofitted

Locking of plug-in connection locking lever

Mismating protection Yes

Note on locking system All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers

Note on mismating protection All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180  
c.) plugging while laterally staggered
d.) plugging one pole 
