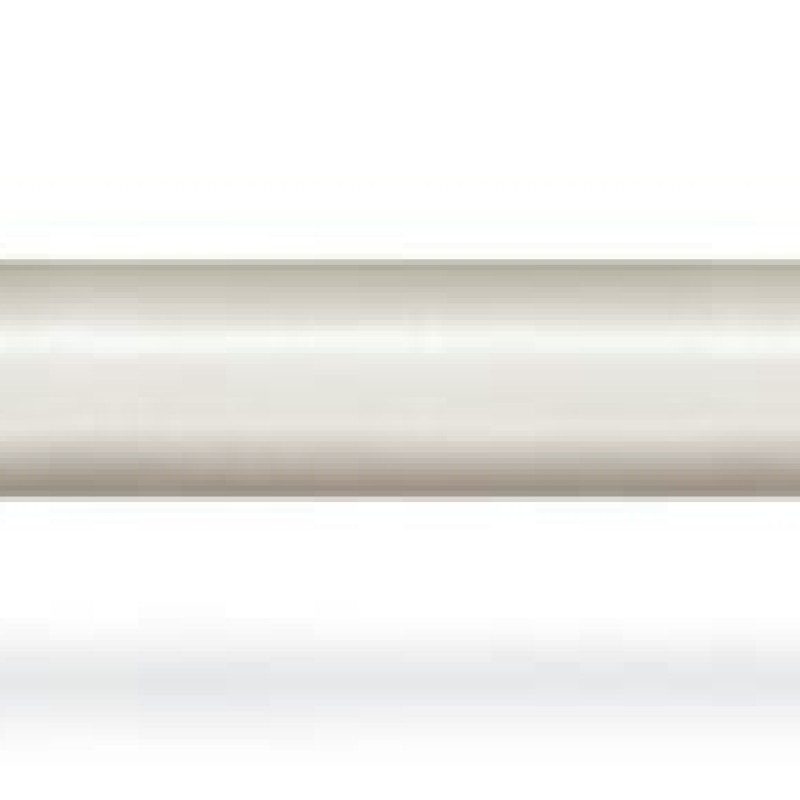

771-8982/016-302 pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. I; H05Z1Z1-F 2 x 1,50 mm²; 3 m; 1,50 mm²; blue

Name: 771-8982/016-302 pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. I; H05Z1Z1-F 2 x 1,50 mm²; 3 m; 1,50 mm²; blue
Brand: Wago
Price: 589.60 UAH
Availability: OutOfStock

New

Pre-Order

Date Available: 19/08/2026

Article: 771-8982/016-302

Brand: Wago

589.60 грн.

Found it cheaper?

Short description

Cable assembly WINSTA® MIDI I codingFor signal and power transmission: The WINSTA® MIDI cable assembly with protection against mismating. WAGO pluggable installation connectors are used when requirements repeat or are pl...

Description 771-8982/016-302 pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. I; H05Z1Z1-F 2 x 1,50 mm²; 3 m; 1,50 mm²; blue

Cable assembly WINSTA® MIDI I coding

For signal and power transmission: The WINSTA® MIDI cable assembly with protection against mismating. WAGO pluggable installation connectors are used when requirements repeat or are planned on a specified pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). That results in the fact that users' fingers will never come into contact with energised elements. WINSTA® MIDI pluggable installation connectors with I coding in blue are particularly suitable for lighting management, for instance for the dimming function of DALI lights. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in can be found in a variety of projects you can use for quick, easy, flexible, and secure installation. This product meets all the mandatory fire protection requirements of fire class E; as a result it can be used in areas where fire safety is relevant. In the manufacturing of this cable assembly, halogens were deliberately omitted. That is an important contribution to climate protection.

Fast, secure pluggable connections – cable assemblies from WAGO

The cable is pre-assembled with a socket and a plug. WINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables. Now you can also lower installation expenses without compromising quality and safety: with protection type IP20 eliminates the need for servicing and prevents unnecessary downtime.

effective protection against mismating
for automation controllers
with I coding for controlling light (DALI standard)
exact dimensions
quick replacement of defective units during ongoing operation

Main attributes 771-8982/016-302 pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. I; H05Z1Z1-F 2 x 1,50 mm²; 3 m; 1,50 mm²; blue

Connection 1

Connection type Socket - Plug

Pole number 2

Wire cross-section 1.5 mm²

Connection data

Total number of potentials 2

Environmental requirements

Continuous operating temperature -35 … +85 °C

Note on continuous operating temperature Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C

Processing temperature -5 … +40 °C

Material data

Color blue

Connector color blue

Contact material Copper or copper alloy; surface-treated

Contact plating Tin

Copper weight of the pipe 0.029 kg/m

Fire class per EN 50575 E_ca

Fire load 89.368 MJ

Flammability class per UL94 V0

Halogen-free Yes

Insulation material (main housing) Polyamide (PA66)

Printing color of sheathed cable black

Rubber cable No

Sheath material Halogen-free

Sheathed cable color white

Silicon-free Yes

Strain relief color white

Weight 259.7 g

Mechanical data

Cable type H05Z1Z1-F 2x1.5

Coding I

Connection type Socket - Plug

Marking DA+ DA-

Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)

Number of mating cycles 200, without resistive load

Potential marking DA+ DA-

Protection type IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Retention force of a plug-in connection when locked: > 80N

Type of pre-assembled cable Interconnecting cable

Unmating force of a plug-in connection when unlocked: approx. 20 … 70 N (depending on pole number)

Use DALI, Lighting Management

Variable coding No

Physical data

Height 15.9 mm

Pin spacing 10 mm

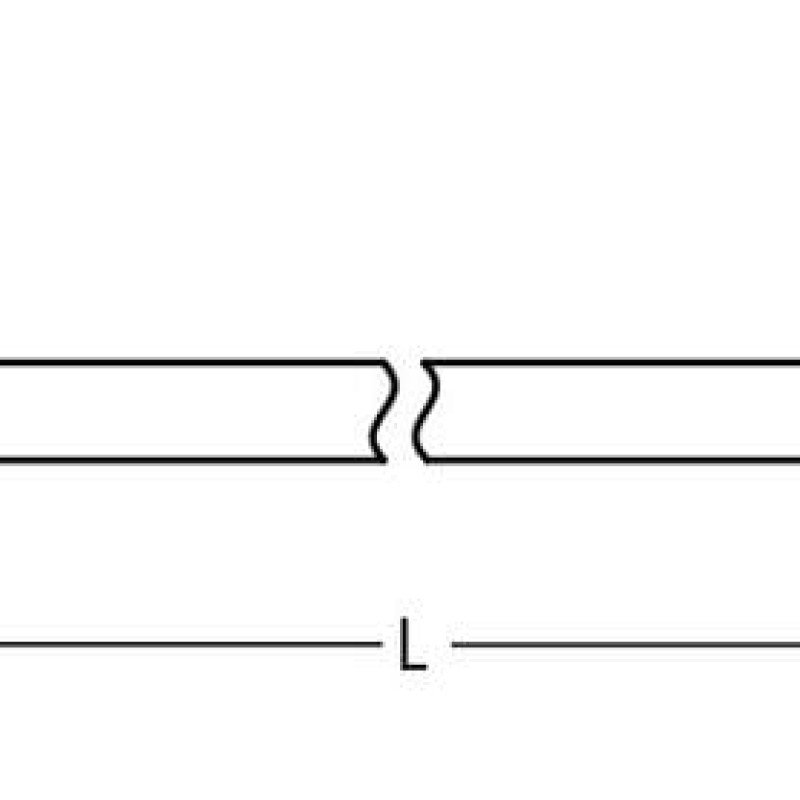

Total length 3 m

Width 24.6 mm

Plug-in connection

Locking lever Can be retrofitted

Locking of plug-in connection locking lever

Mismating protection Yes

Note on locking system All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers

Note on mismating protection All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180  
c.) plugging while laterally staggered
d.) plugging one pole 
