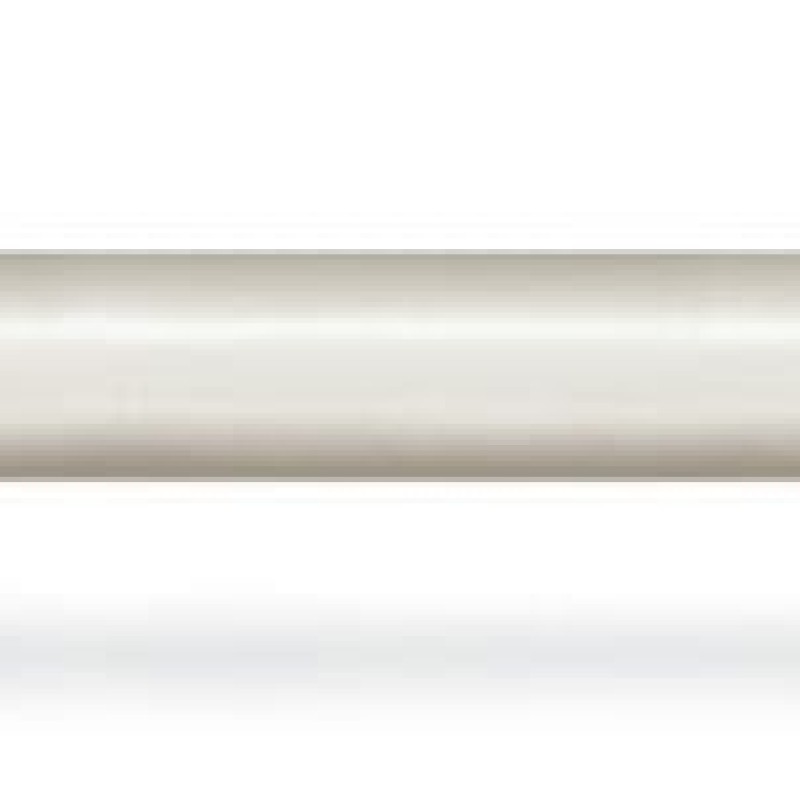

Description 771-8982/016-304 pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. L; H05Z1Z1-F 2 x 1,50 mm²; 3 m; 1,50 mm²; dark gray
Cable assembly WINSTA® MIDI L coding
Use effective pluggable connections instead of laborious screw connections: With the WINSTA® MIDI cable assembly with protection against mismating. Whether on PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to establish connections according to many different requirements in no time flat. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). WINSTA® MIDI pluggable installation connectors with L coding (2-pole or 5-pole) are ideal for supplying power to power supply units or small servo motors. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates safe electrification. Thanks to the integrated test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and costs. This product meets all the mandatory safety requirements of fire class E; therefore it can be used in areas where fire safety is relevant. In the production of this cable assembly, halogens were deliberately omitted. That is an important contribution to environmental protection.
Fast, secure pluggable connections – cable assemblies from WAGO
The cable assembly is provided with a socket and a plug. The WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Choose quality and durability – with protection type IP20 from WAGO makes the electrical installation of electrical components noticeably easier.
- effective protection against mismating
- simple circuits
- with L coding for supplying power in automation
- ready for immediate use
- quick replacement of defective units during ongoing operation
Main attributes 771-8982/016-304 pre-assembled interconnecting cable; Eca; Socket/plug; 2-pole; Cod. L; H05Z1Z1-F 2 x 1,50 mm²; 3 m; 1,50 mm²; dark gray
Connection 1
Connection type
Socket - Plug
Pole number
2
Wire cross-section
1.5 mm²
Connection data
Total number of potentials
2
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
dark gray
Connector color
dark gray
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.029 kg/m
Fire class per EN 50575
Eca
Fire load
89.369 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
black
Rubber cable
No
Sheath material
Halogen-free
Sheathed cable color
white
Silicon-free
Yes
Strain relief color
white
Weight
259.7 g
Mechanical data
Cable type
H05Z1Z1-F 2x1.5
Coding
L
Connection type
Socket - Plug
Marking
L' N'
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
L' N'
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Interconnecting cable
Unmating force of a plug-in connection
when unlocked: approx. 20 … 70 N (depending on pole number)
Use
Emergency power supply
Variable coding
No
Physical data
Height
15.9 mm
Pin spacing
10 mm

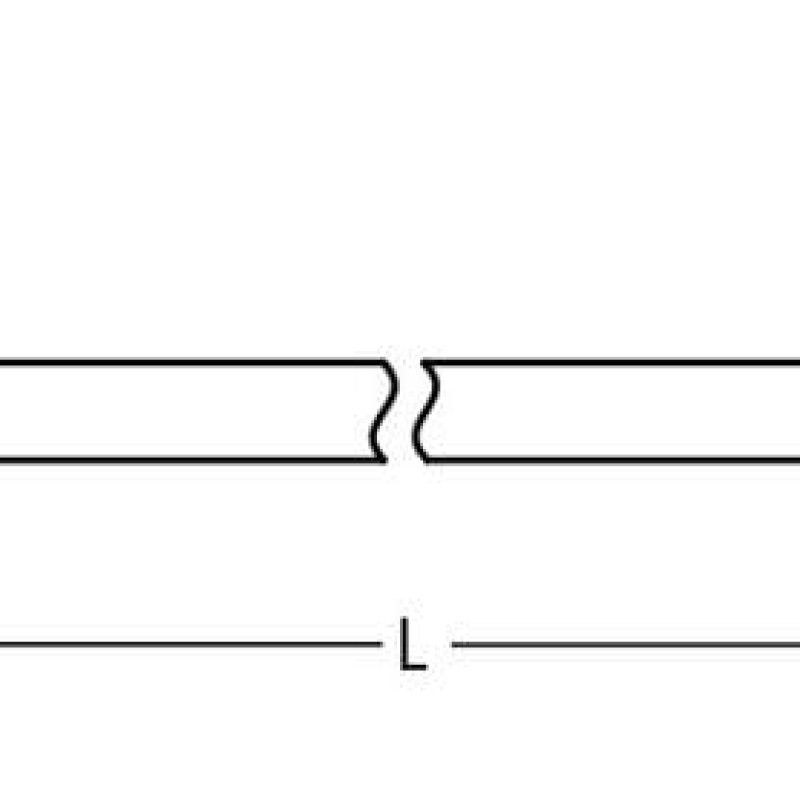

Total length
3 m
Width
24.6 mm
Plug-in connection
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
