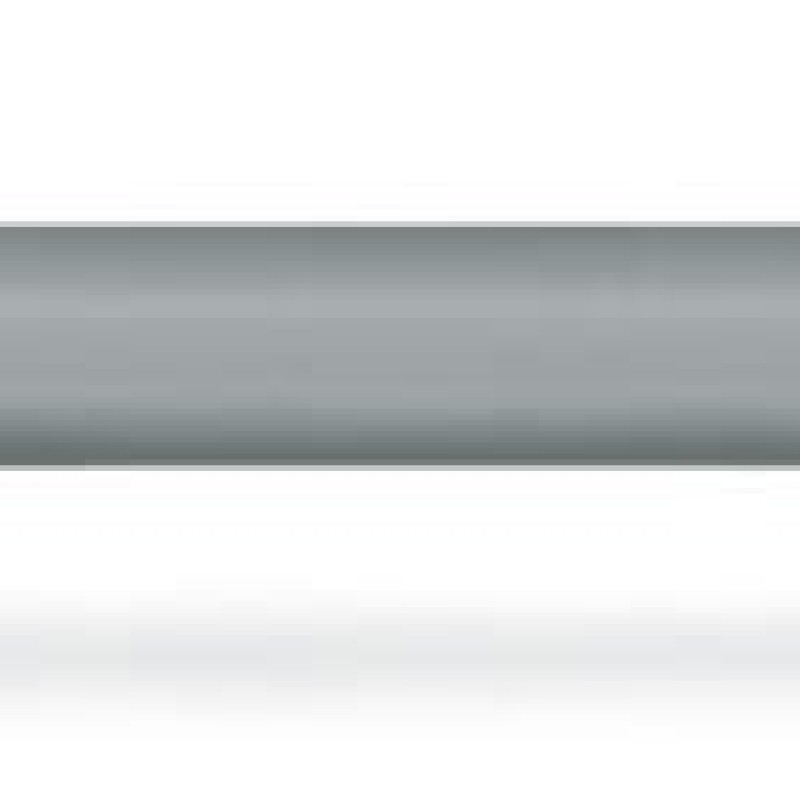

Description 771-8992/106-507 pre-assembled connecting cable; Eca; Socket/open-ended; 2-pole; Cod. B; Control cable 2 x 1.5 mm²; 5 m; 1,50 mm²; pink
Cable assembly WINSTA® MIDI with strain relief
The WINSTA® MIDI cable assembly with protection type IP20 provides the foundation for assembly of solid and fine-stranded conductors. The pluggable installation connectors with spring pressure connection technology function without screw connections. They allow flexible, error-free installation in a large number of possible uses. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). Pluggable installation connectors with B coding from the WINSTA® MIDI line are available in pink, light green, or gray, allowing you to distinguish different circuits, for example for light, pumps or, sun blinds. Your own pole marking is possible, too. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates safe electrification. Due to the included test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and costs. According to the European CPR, the fire class of the cables used in construction is decisive for the safety of buildings as well. For buildings with medium-level safety requirements, cable assemblies with fire class E are suitable.
Fast, secure pluggable connections – cable assemblies from WAGO
A socket and a free end are available. The WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Now you can also lower installation costs without compromising safety and quality: with marking reduces the need for servicing and prevents unnecessary downtime.
- protection against mismating eliminates errors
- pre-assembled versions
- with B coding for controllers such as sun blinds and lighting fixtures
- custom-engineered solutions
- quick replacement of defective units during ongoing operation
Main attributes 771-8992/106-507 pre-assembled connecting cable; Eca; Socket/open-ended; 2-pole; Cod. B; Control cable 2 x 1.5 mm²; 5 m; 1,50 mm²; pink
Connection 1
Connection type
Socket - Free end
Pole number
2
Strip length
9 mm
Strip length (outer insulation)
35 mm
Wire cross-section
1.5 mm²
Connection data
Conductor preparation
ultrasonically tip-bonded
Total number of potentials
2
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
pink
Connector color
pink
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.029 kg/m
Fire class per EN 50575
Eca
Fire load
0.38 MJ
Halogen-free
No
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
black
Rubber cable
No
Sheath material
PVC
Sheathed cable color
gray
Silicon-free
Yes
Strain relief color
black
Weight
336.7 g
Mechanical data
Cable type
Control line 2 x 1.5
Coding
B
Connection type
Socket - Free end
Marking
1 2
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
1 2
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Connecting cable
Unmating force of a plug-in connection
when unlocked: approx. 20 … 70 N (depending on pole number)
Use
Control technology
Variable coding
No
Physical data
Height
15.9 mm
Pin spacing
10 mm

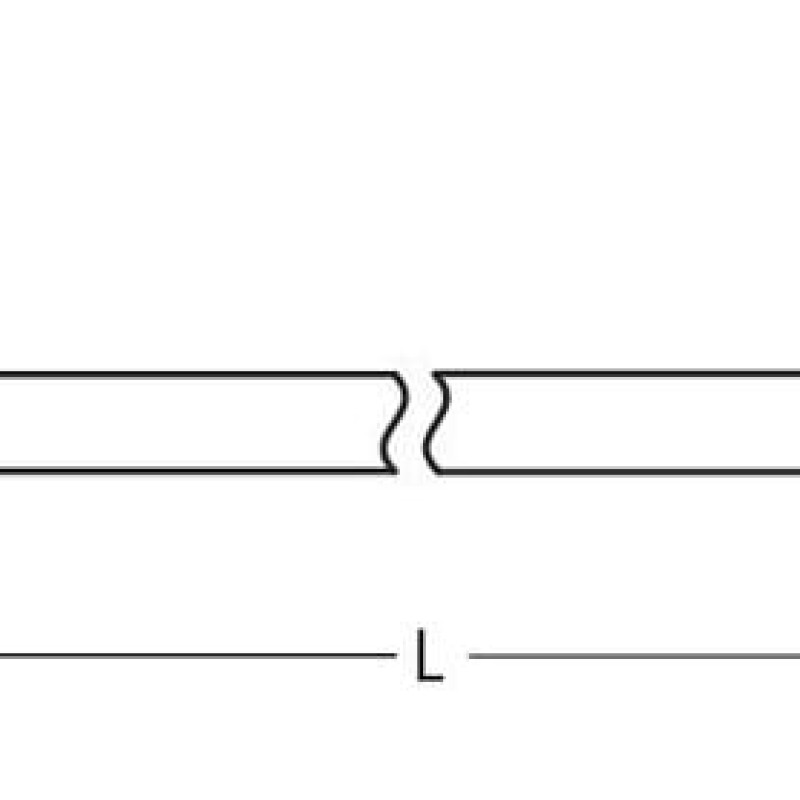

Total length
5 m
Width
24.6 mm
Plug-in connection
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
