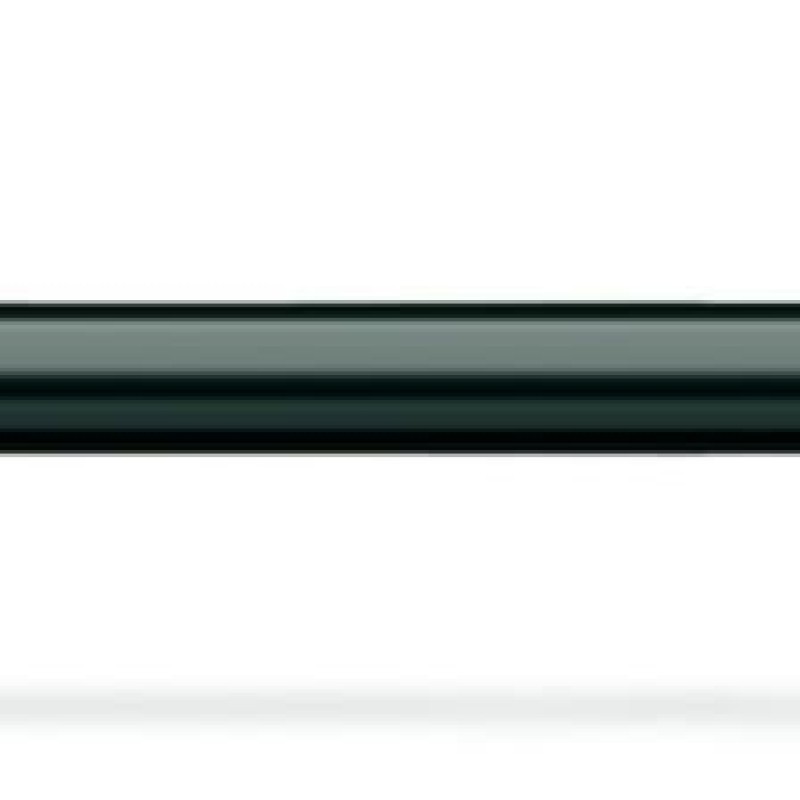

Description 771-9285/117-701 pre-assembled connecting cable;B2ca;Socket/open-ended;blue
Cable assembly WINSTA® MIDI I coding
Use effective pluggable connections instead of laborious screw connections: With the WINSTA® MIDI cable assembly I coding. Our pluggable installation connectors with spring pressure connection technology function entirely without screw connections. They allow flexible, error-free installation in a large number of possible uses. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). Controlled lighting, as implemented with the DALI standard, for example, is the main use of WINSTA® MIDI pluggable installation connectors with I coding. The rated current and voltage are important criteria for selecting a pluggable installation connector: They tell us about the product's domains of use. This product has a current rating of 20 A – as a result it is suitable for high power loads. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates precise electrification. Due to the integrated test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money. Anyone who needs to worry about technical safety requirements for fire protection reasons for electrical installation should be able to rely on the quality of the components. Our product satisfies the important safety standards of fire class B2. In the production of this cable assembly, we eliminated the use of halogen. This is an important contribution to environmental protection.
Fast, error-free assembly thanks to cable assemblies from WAGO
The cable assembly is provided with a socket and a free end. The WINSTA® Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, even more reliable, and error-free. Using this pre-assembled system reduces assembly times and installation errors at the construction site. Now you can also lower installation expenses without compromising quality and safety: with marking eliminates the need for servicing and prevents unnecessary downtime.
- protection against mismating eliminates errors
- simple circuits
- with I coding for controlling light (DALI standard)
- exact dimensions
- convenient installation and commissioning
Main attributes 771-9285/117-701 pre-assembled connecting cable;B2ca;Socket/open-ended;blue
Connection 1
Connection type
Socket - Free end
Pole number
5
Strip length
9 mm
Strip length (outer insulation)
55 mm
Wire cross-section
2.5 mm²
Connection data
Conductor preparation
ultrasonically tip-bonded
PE function
Preceding PE contact
Total number of potentials
5
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
blue
Connector color
blue
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.12 kg/m
Fire class per EN 50575
B2ca
Fire load
0.582 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
white
Printing color of strain relief
white
Rubber cable
No
Sheath material
Halogen-free
Sheathed cable color
black
Silicon-free
Yes
Strain relief color
black
Weight
1737.4 g
Mechanical data
Cable type
H05Z1Z1-F 5G2.5
Coding
I
Connection type
Socket - Free end
Marking
N ⏚ L DA- DA+
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
N ⏚ L DA- DA+
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Connecting cable
Unmating force of a plug-in connection
when unlocked: approx. 20 … 70 N (depending on pole number)
Use
DALI, Lighting Management
Variable coding
No
Physical data
Height
15.38 mm
Pin spacing
10 mm

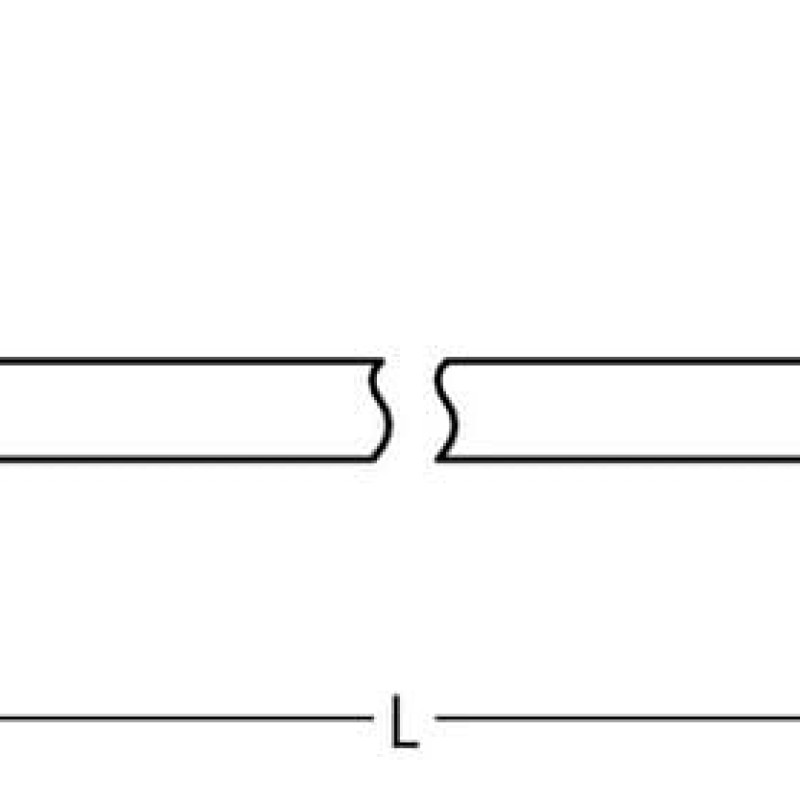

Total length
7 m
Width
47 mm
Plug-in connection
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
