Description 771-9385/066-502 pre-assembled interconnecting cable;Cca;Socket/plug

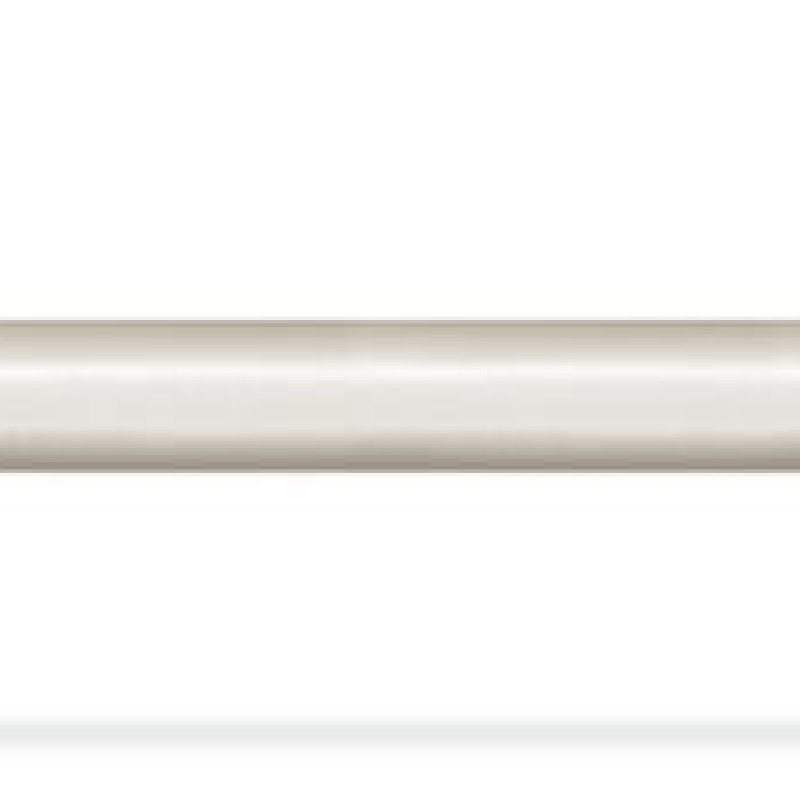

Cable assembly WINSTA® MIDI with protection type IP20
For signal and power transmission: The WINSTA® MIDI cable assembly 5-pole. WAGO pluggable installation connectors are used when criteria repeat or are planned on a specified grid, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). This means that users' fingers will never come into contact with live elements. Controlled lighting, as used in the DALI standard, for example, is the primary domain of use of WINSTA® MIDI pluggable installation connectors with I coding. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is found in can be found in a variety of projects you can use for quick, easy and maximally flexible electrical installation. Anyone who needs to worry about technical safety requirements related to fire protection for electrical installation should be able to rely on the quality of the components. Our product meets the official safety standards of fire class C. In the production of this cable assembly, halogens were deliberately omitted. This is an important contribution to environmental protection.
Pluggable connections instead of screw connections – cable assemblies from WAGO
The cable assembly is equipped with a socket and a plug. The WINSTA® Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, even more reliable, and error-free. Using this pre-assembled system decreases time spent on assembly and errors during installation at the construction site. Choose quality and durability – with protection type IP20 from WAGO makes the electrical installation of electrical components visibly easier.
- pluggable installation connectors with protection against mismating
- for automation controllers
- with I coding for controlling light (DALI standard)
- exact dimensions
- rapid, structured electrical installation
Main attributes 771-9385/066-502 pre-assembled interconnecting cable;Cca;Socket/plug
Connection 1
Connection type
Socket - Plug
Pole number
5
Wire cross-section
1.5 mm²
Connection data
PE function
Preceding PE contact
Total number of potentials
5
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Connector color
blue
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.072 kg/m
Fire class per EN 50575
Cca
Fire load
1.206 MJ
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
black
Rubber cable
No
Sheath material
Halogen-free
Sheathed cable color
white
Silicon-free
Yes
Strain relief color
white
Weight
838.8 g
Mechanical data
Cable type
H05Z1Z1-F 5G1.5
Coding
I
Connection type
Socket - Plug
Marking
N ⏚ L DA- DA+
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
N ⏚ L DA- DA+
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Interconnecting cable
Unmating force of a plug-in connection
when unlocked: approx. 20 … 70 N (depending on pole number)
Use
DALI, Lighting Management
Variable coding
No
Physical data
Height
15.38 mm
Pin spacing
10 mm

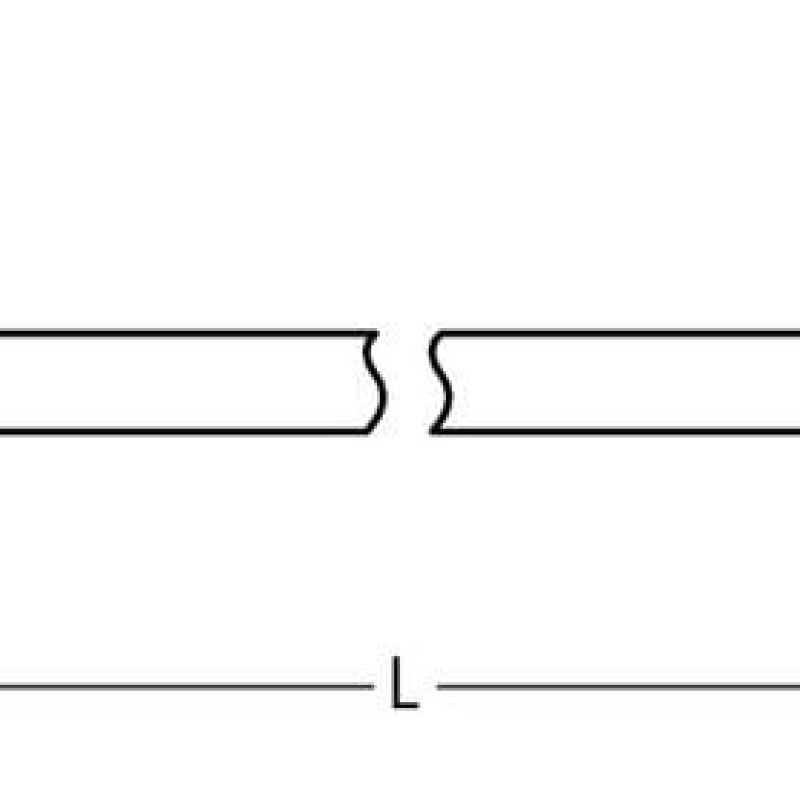

Total length
5 m
Width
47 mm
Plug-in connection
Locking lever
Can be retrofitted
Locking of plug-in connection
Locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
