771-9393/166-502 pre-assembled connecting cable;Cca;Socket/open-ended

Name: 771-9393/166-502 pre-assembled connecting cable;Cca;Socket/open-ended
Brand: Wago
Availability: OutOfStock

New

Pre-Order

Date Available: 28/06/2026

Article: 771-9393/166-502

Brand: Wago

0.00 грн.

Found it cheaper?

Short description

Cable assembly WINSTA® MIDI with protection type IP20The WINSTA® MIDI cable assembly with protection against mismating supports rapid, correct installation. Our pluggable installation connectors with spring pressure conn...

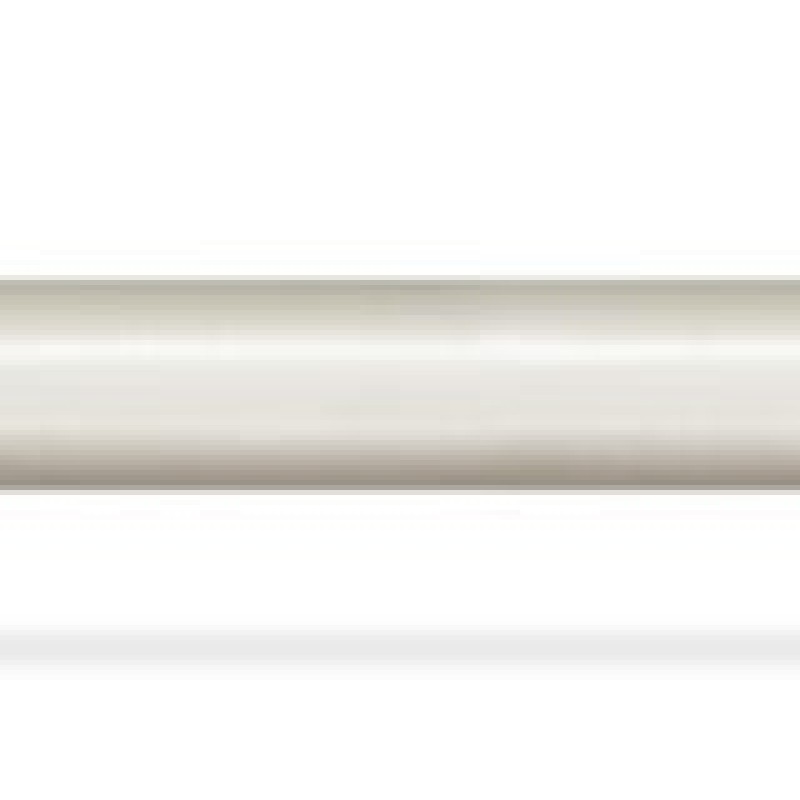

Description 771-9393/166-502 pre-assembled connecting cable;Cca;Socket/open-ended

Cable assembly WINSTA® MIDI with protection type IP20

The WINSTA® MIDI cable assembly with protection against mismating supports rapid, correct installation. Our pluggable installation connectors with spring pressure connection technology function completely without screw connections. They allow resource-efficient, error-free installation in numerous possible uses. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). That results in the fact that users' fingers will never come into contact with energised elements. Standard mains applications for almost any domain of use can be implemented with WINSTA® MIDI pluggable installation connectors with A coding. Our WINSTA® MIDI product line guarantees total flexibility for the electrical installation. Through its Push-in CAGE CLAMP® spring pressure connection technology, it guarantees error-free, time-saving installation and offers customization and flexibility for meeting all installation requirements. Anyone who needs to worry about technical safety requirements for fire protection reasons for electrical installation should be able to rely on the quality of the components. Our product satisfies the official safety standards of fire class C. The cable assembly is free of halogen. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials do not easily ignite.

Fast, error-free assembly thanks to cable assemblies from WAGO

The cable is pre-assembled with a socket and a free end. The WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Now you can also lower installation expenses without compromising safety and quality: with fire class C eliminates the need for servicing and prevents unnecessary downtime.

protection against mismating eliminates errors
for automation controllers
with A coding for use in many general mains applications
exact dimensions
convenient installation and commissioning

Main attributes 771-9393/166-502 pre-assembled connecting cable;Cca;Socket/open-ended

Connection 1

Connection type Socket - Free end

Pole number 3

Strip length 9 mm

Strip length (outer insulation) 55 mm

Wire cross-section 1.5 mm²

Connection data

Conductor preparation ultrasonically tip-bonded

PE function Preceding PE contact

Total number of potentials 3

Environmental requirements

Continuous operating temperature -35 … +85 °C

Note on continuous operating temperature Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C

Processing temperature -5 … +40 °C

Material data

Connector color white

Contact material Copper or copper alloy; surface-treated

Contact plating Tin

Copper weight of the pipe 0.043 kg/m

Fire class per EN 50575 C_ca

Fire load 0.292 MJ

Flammability class per UL94 V0

Halogen-free Yes

Insulation material (main housing) Polyamide (PA66)

Printing color of sheathed cable black

Printing color of strain relief black

Rubber cable No

Sheath material Halogen-free

Sheathed cable color white

Silicon-free Yes

Strain relief color white

Weight 562.1 g

Mechanical data

Cable type H05Z1Z1-F 3G1.5

Coding A

Connection type Socket - Free end

Marking L ⏚ N

Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)

Number of mating cycles 200, without resistive load

Potential marking L ⏚ N

Protection type IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Retention force of a plug-in connection when locked: > 80N

Type of pre-assembled cable Connecting cable

Unmating force of a plug-in connection when unlocked: approx. 20 … 70 N (depending on pole number)

Use General mains applications

Variable coding Yes

Physical data

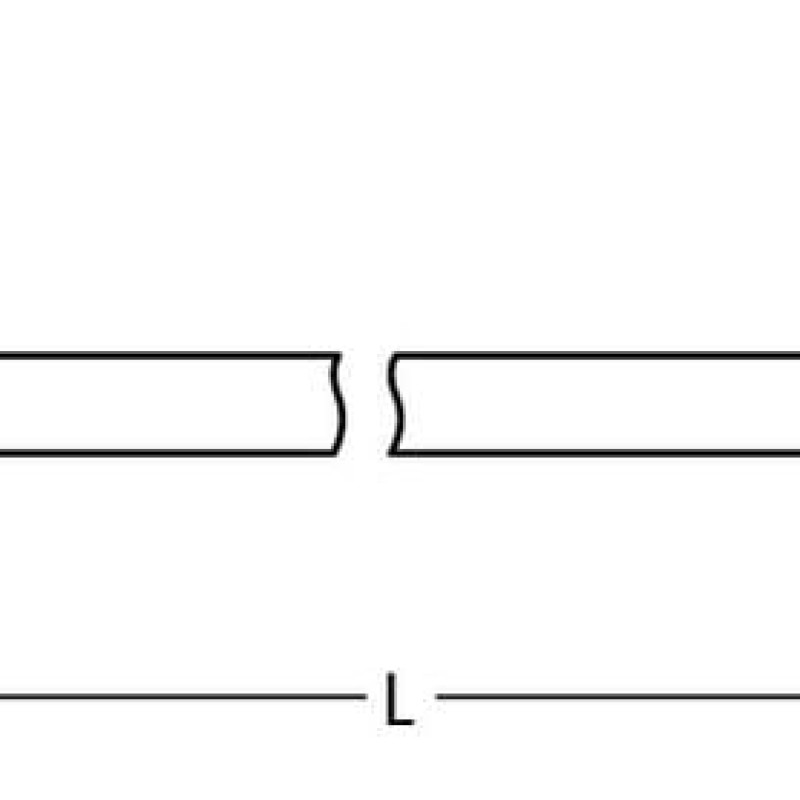

Height 12.9 mm

Pin spacing 10 mm

Total length 5 m

Width 27 mm

Plug-in connection

Locking lever Can be retrofitted

Locking of plug-in connection Locking lever

Mismating protection Yes

Note on locking system All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers

Note on mismating protection All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180  
c.) plugging while laterally staggered
d.) plugging one pole 
