771-9975/016-401 pre-assembled interconnecting cable; Eca; Socket/plug; 5-pole; Cod. P; H05Z1Z1-F 5G 1.5 mm²; 4 m; 1,50 mm²; red

Name: 771-9975/016-401 pre-assembled interconnecting cable; Eca; Socket/plug; 5-pole; Cod. P; H05Z1Z1-F 5G 1.5 mm²; 4 m; 1,50 mm²; red
Brand: Wago
Price: 1501.00 UAH
Availability: OutOfStock

New

Pre-Order

Date Available: 09/07/2026

Article: 771-9975/016-401

Brand: Wago

1501.00 грн.

Found it cheaper?

Short description

Cable assembly WINSTA® MIDI with protection against mismatingThe WINSTA® MIDI cable assembly with protection type IP20 is the pluggable solution for your application in control cabinets, for lighting connections or on PC...

Description 771-9975/016-401 pre-assembled interconnecting cable; Eca; Socket/plug; 5-pole; Cod. P; H05Z1Z1-F 5G 1.5 mm²; 4 m; 1,50 mm²; red

Cable assembly WINSTA® MIDI with protection against mismating

The WINSTA® MIDI cable assembly with protection type IP20 is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. Whether on PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to establish connections according to a huge variety of requirements in next to no time. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). UPS applications for IT technology frequently use the red WINSTA® MIDI pluggable installation connectors with P coding. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in can be found in a variety of projects you can use for quick, easy, flexible, and secure electrical installation. This product meets all the relevant fire protection requirements of fire class E; therefore it can be used in areas where fire safety is relevant. Eliminating halogens as an additive in the manufacture of this cable assembly significantly improves fire safety and reduces environmental contamination.

Fast, error-free assembly thanks to cable assemblies from WAGO

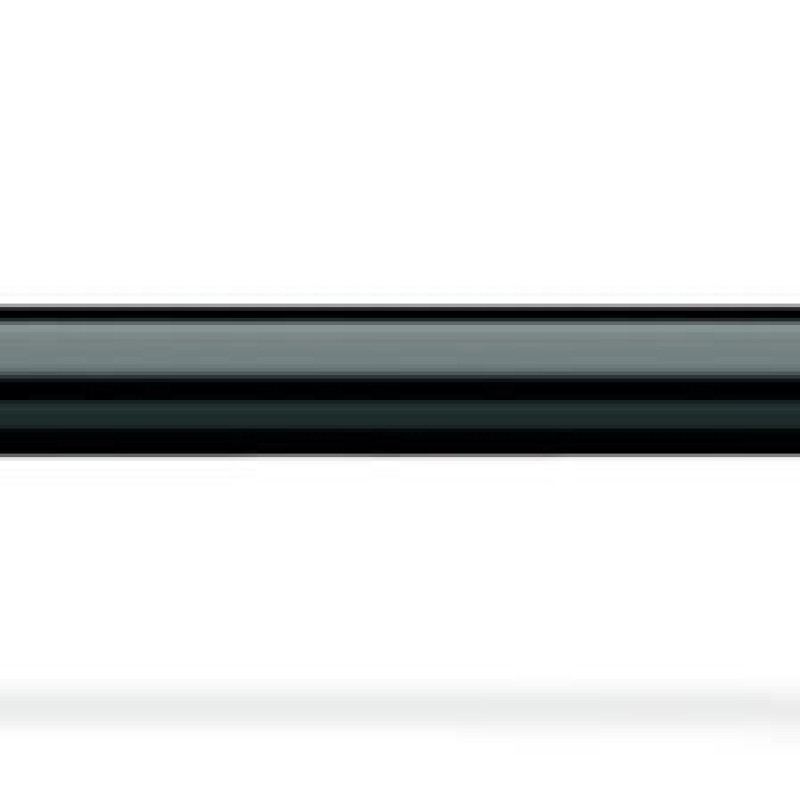

The cable is pre-assembled with a socket and a plug. The WINSTA® Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Choose quality and durability – with protection against mismating from WAGO makes the electrical installation of electrical components significantly easier.

pluggable installation connectors with protection against mismating
simple circuits
for UPS applications
custom-engineered solutions
fast, secure installation

Main attributes 771-9975/016-401 pre-assembled interconnecting cable; Eca; Socket/plug; 5-pole; Cod. P; H05Z1Z1-F 5G 1.5 mm²; 4 m; 1,50 mm²; red

Connection 1

Connection type Socket - Plug

Pole number 5

Wire cross-section 1.5 mm²

Connection data

PE function Preceding PE contact

Total number of potentials 5

Environmental requirements

Continuous operating temperature -35 … +85 °C

Note on continuous operating temperature Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C

Processing temperature -5 … +40 °C

Material data

Color red

Connector color red

Contact material Copper or copper alloy; surface-treated

Contact plating Tin

Copper weight of the pipe 0.072 kg/m

Fire class per EN 50575 E_ca

Fire load 120.296 MJ

Halogen-free Yes

Insulation material (main housing) Polyamide (PA66)

Printing color of sheathed cable white

Printing color of strain relief white

Rubber cable No

Sheath material Halogen-free

Sheathed cable color black

Silicon-free Yes

Strain relief color black

Weight 658 g

Mechanical data

Cable type H05Z1Z1-F 5G1.5

Coding P

Connection type Socket - Plug

Marking N ⏚ L1 L2 L3

Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)

Number of mating cycles 200, without resistive load

Potential marking N ⏚ L1 L2 L3

Protection type IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Retention force of a plug-in connection when locked: > 80N

Type of pre-assembled cable Interconnecting cable

Unmating force of a plug-in connection when unlocked: approx. 20 … 70 N (depending on pole number)

Use EDV (UPS)

Variable coding No

Physical data

Height 15.38 mm

Pin spacing 10 mm

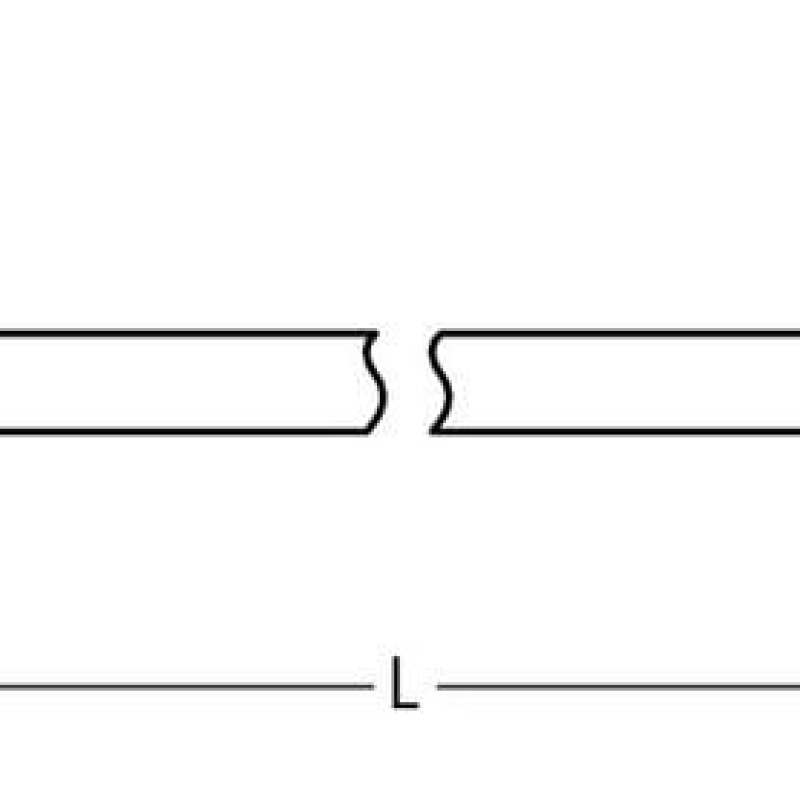

Total length 4 m

Width 47 mm

Plug-in connection

Locking lever Can be retrofitted

Locking of plug-in connection locking lever

Mismating protection Yes

Note on locking system All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers

Note on mismating protection All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180  
c.) plugging while laterally staggered
d.) plugging one pole 
