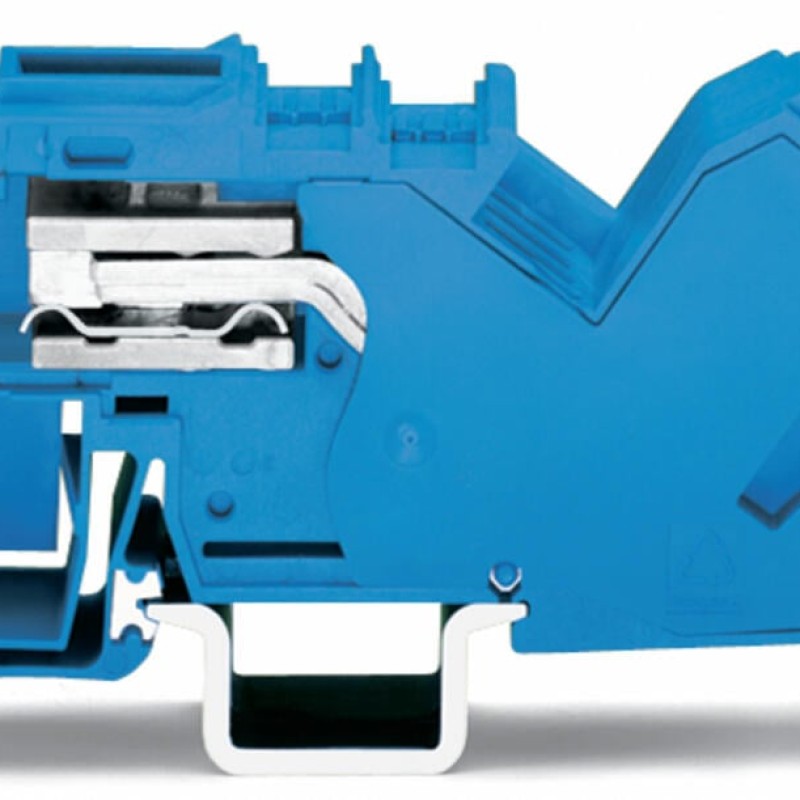

Description 785-613 1-conductor N-disconnect terminal block;35 mm²;with integrated end plate;blue
Easily, quickly and safely connect conductors with this N-disconnect terminal block (item number 785-613). Strip lengths must be 23 mm when connecting conductors to this N-disconnect terminal block. Featuring conductor terminals along with CAGE CLAMP®, this connector outperforms the competition. Our trusted universal connection known as CAGE CLAMP® is the industry standard for connection technology and electrical interconnections. Depending on the type of conductor, this N-disconnect terminal block is suitable for conductor cross sections ranging from 6 mm² to 35 mm².
Main attributes 785-613 1-conductor N-disconnect terminal block;35 mm²;with integrated end plate;blue
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
6 … 35 mm² / 8 … 2 AWG
Solid conductor
6 … 35 mm² / 8 … 2 AWG
Stranded conductor
6 … 35 mm² / 8 … 2 AWG
Strip length
23 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
1
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
blue
Fire load
1.085 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
93.3 g
Mechanical data
Design
angled
Marking level
Center/side marking
Mounting (note)
only suitable for DIN 35 x 15 rail
Mounting type
DIN-35 rail

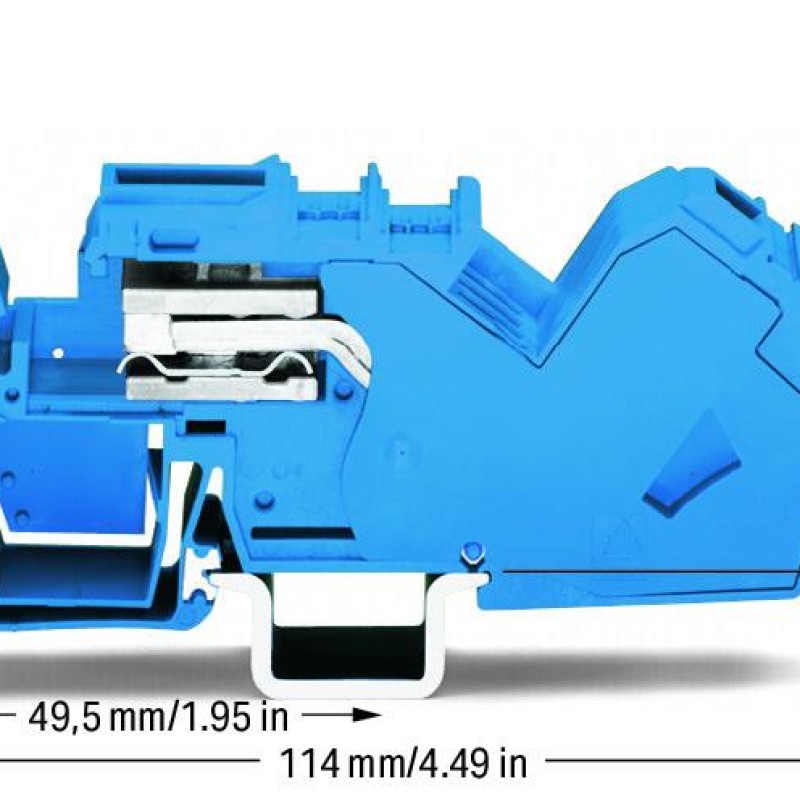

Physical data
Depth from upper-edge of DIN-rail
44.5 mm
Height
116.5 mm
Width
16 mm
