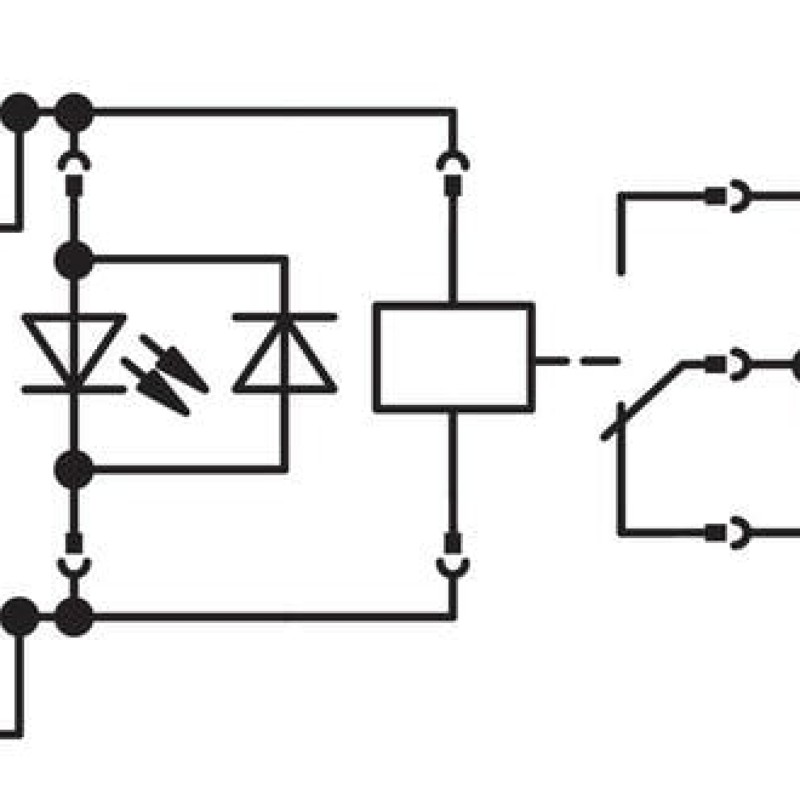

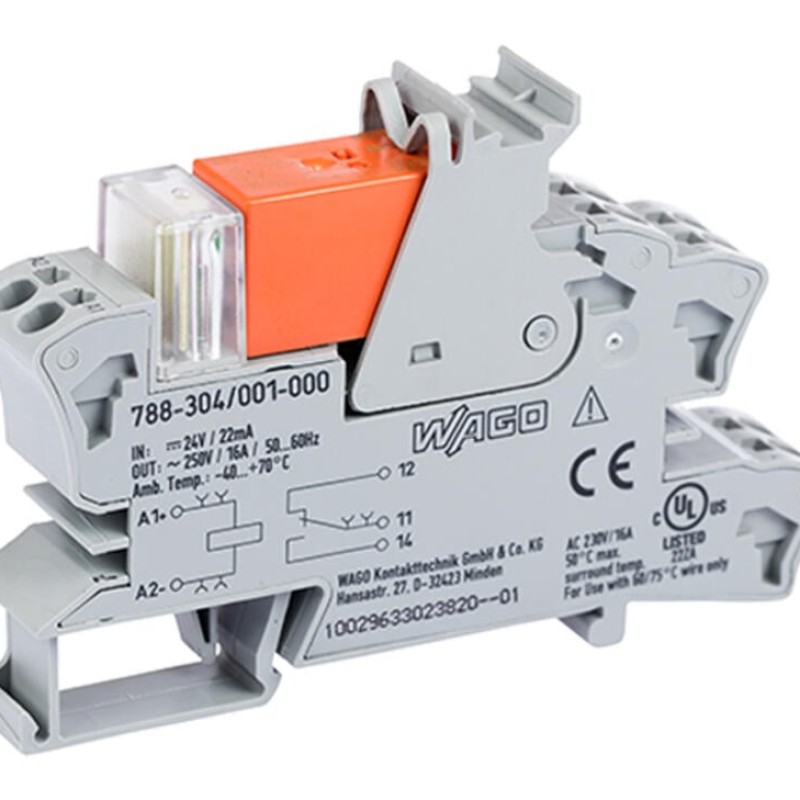

Description 788-304/001-000 Relay module;Nominal input voltage: 24 VDC;1 changeover contact
Main attributes 788-304/001-000 Relay module;Nominal input voltage: 24 VDC;1 changeover contact
Connection data
Fine-stranded conductor
0.34 … 2.5 mm² / 22 … 14 AWG
Solid conductor
0.34 … 2.5 mm² / 22 … 14 AWG
Strip length
9 … 10 mm
Control circuit
Input voltage range
±10 %
Nominal input current at Uₙ
19 mA
Nominal input voltage Uₙ
DC 24 V
Environmental requirements
Ambient temperature (operation at Uₙ>)
-40 … +70 °C
Ambient temperature (storage)
-40 … +70 °C
Processing temperature
-25 … +50 °C
Temperature range of connection cable
≥ (Tambient + 20 K)
Load circuit
Bounce time (typ.)
6 ms
Contact material (relay)
AgNi 90/10
Drop-out time (typ.)
6 ms
Electrical life (NO; resistive load; 23 °C)
30 x 10³ switching operations
Inrush current (resistive) max.
(AC) 30 A / 4 s

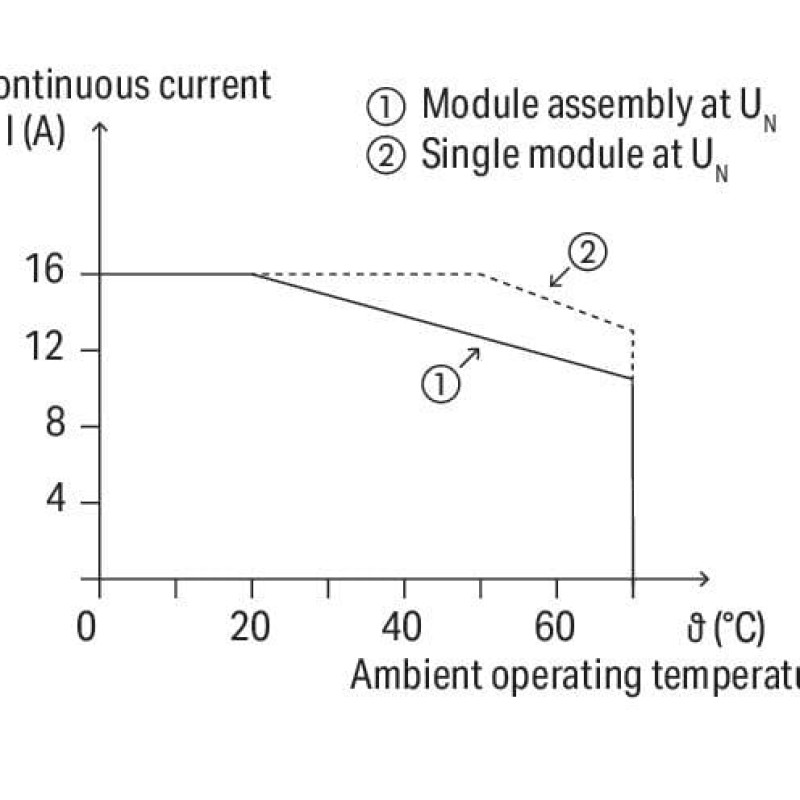

Limiting continuous current
16 A
Mechanical life
30 x 10⁶ switching operations
Number of changeover/switchover contacts
1
Pull-in time (typ.)
8 ms
Recommended minimum load
12 V / 10 mA
Switching capacity
AC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V
Switching frequency with/without load (max.)
6 min-1 / 1200 min-1

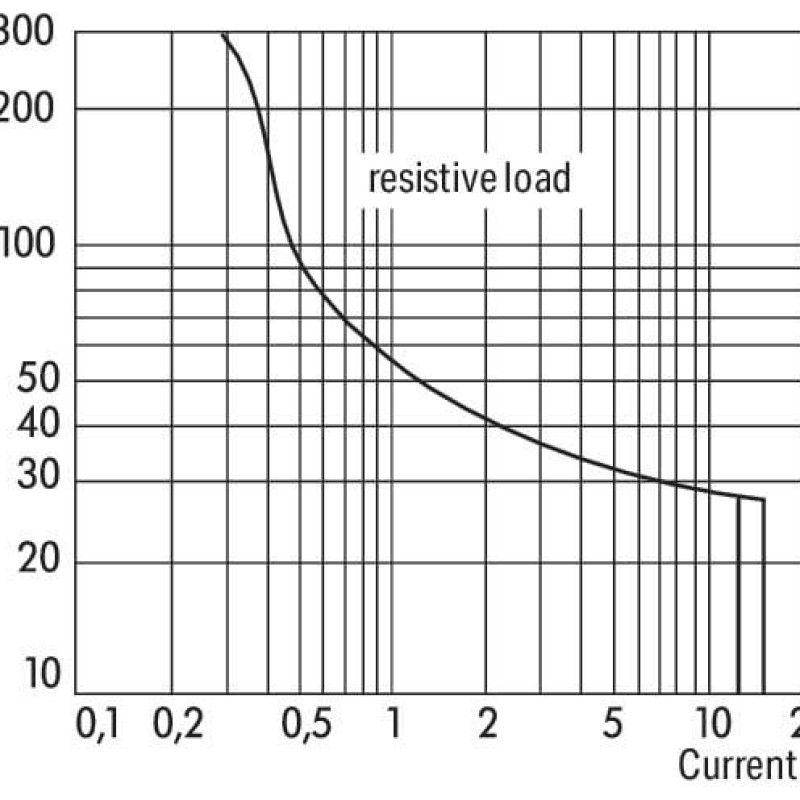

Switching power (resistive) max.
AC 4000 VA; DC (see load limit curve)
Switching Voltage, Max.
AC 250 V
Material data
Fire load
0.923 MJ
Weight
45.6 g
Physical data
Depth from upper-edge of DIN-rail
54 mm
Height
86 mm
Width
15 mm
Safety and protection
Dielectric strength (control/load circuit) (AC, 1 min)Dielectric strength (control/load circuit) (AC, 1 min)
5 kVrms
Dielectric strength (open contact) (AC, 1 min)
1 kVrms
Pollution degree
3
Protection type
IP20
Rated surge voltage
4 kV
Rated voltage
250 V
Safety information
A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
Signaling
Status indicator
Green LED
Standards and specifications
Standards/specifications
UL 508 (max. 10 A)
