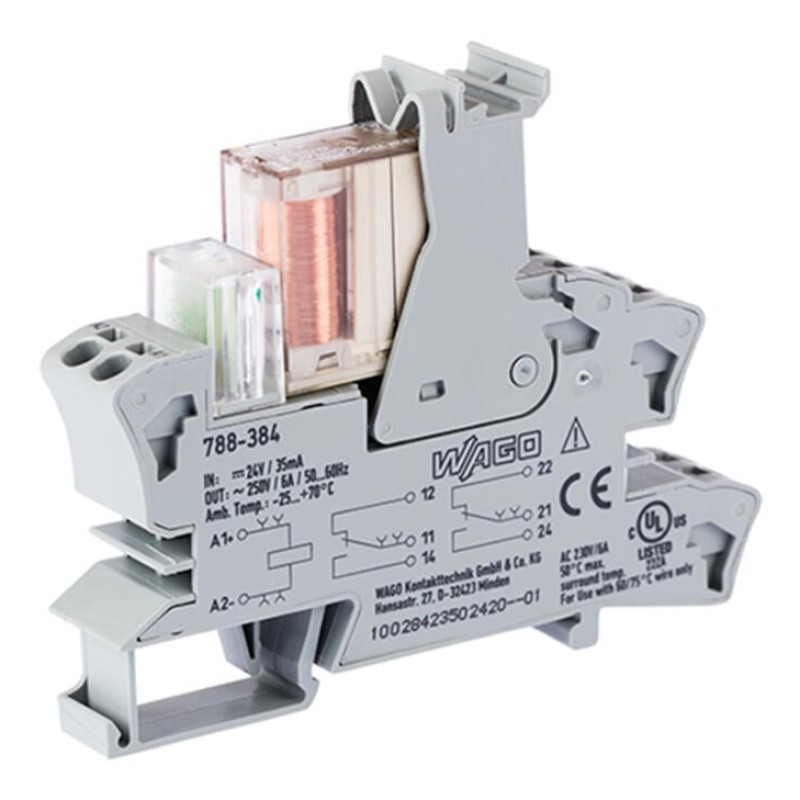

Description 788-384 Relay module with driven contacts;Nominal input voltage: 24 VDC;2 changeover contacts;gray
Main attributes 788-384 Relay module with driven contacts;Nominal input voltage: 24 VDC;2 changeover contacts;gray
Basic relay
WAGO basic relay
788-902
Connection data
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.34 … 2.5 mm² / 22 … 14 AWG
Solid conductor
0.34 … 2.5 mm² / 22 … 14 AWG
Strip length
9 … 10 mm
Control circuit
Input voltage range
-15 … +10 %
Nominal input current at Uₙ
31 mA
Nominal input voltage Uₙ
DC 24 V
Environmental requirements
Ambient temperature (operation at Uₙ>)
-40 … +70 °C
Ambient temperature (storage)
-40 … +70 °C
Ambient temperature UL (operation at Uₙ)
-40 … +50 °C
Processing temperature
-25 … +50 °C
Temperature range of connection cable
≥ (Tambient + 20 K)
Load circuit
Contact material (relay)
AgNi
Drop-out time (typ.)
4 ms
Electrical life (NO; resistive load; 23 °C)
100 x 10³ switching operations
Inrush current (resistive) max.
(AC) 14 A / 4 s

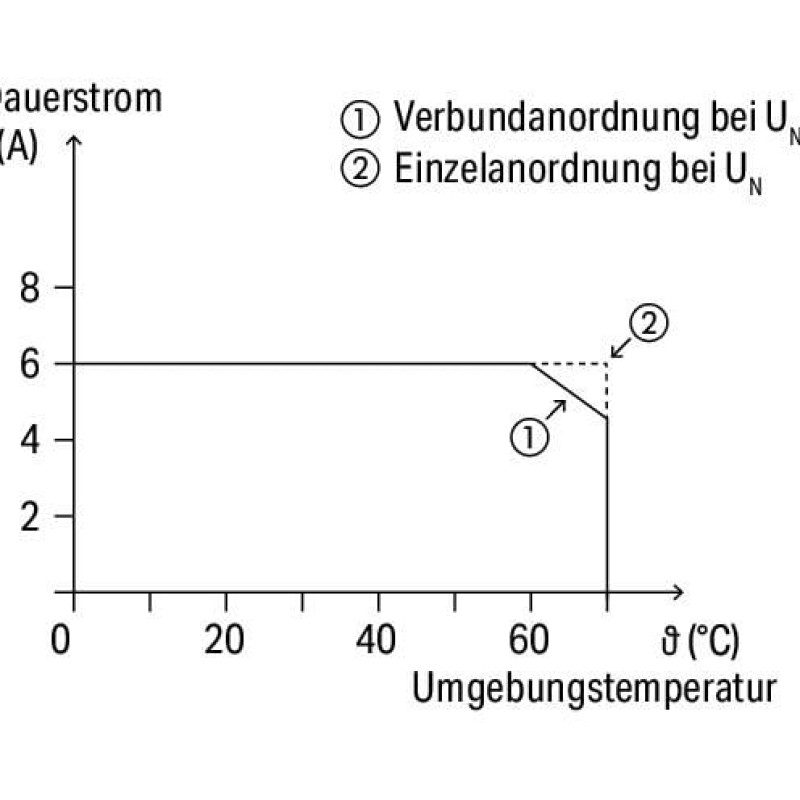

Limiting continuous current
6 A
Mechanical force control
Type A
Mechanical life
10 x 10⁶ switching operations
Number of changeover/switchover contacts
2
Pull-in time (typ.)
10 ms
Recommended minimum load
5 V / 10 mA
Switching capacity
AC-15: 3 A / AC 250 V; DC-13: 3 A / DC 24 V
Switching frequency with/without load (max.)
6 min-1 / 300 min-1
Switching power (resistive) max.

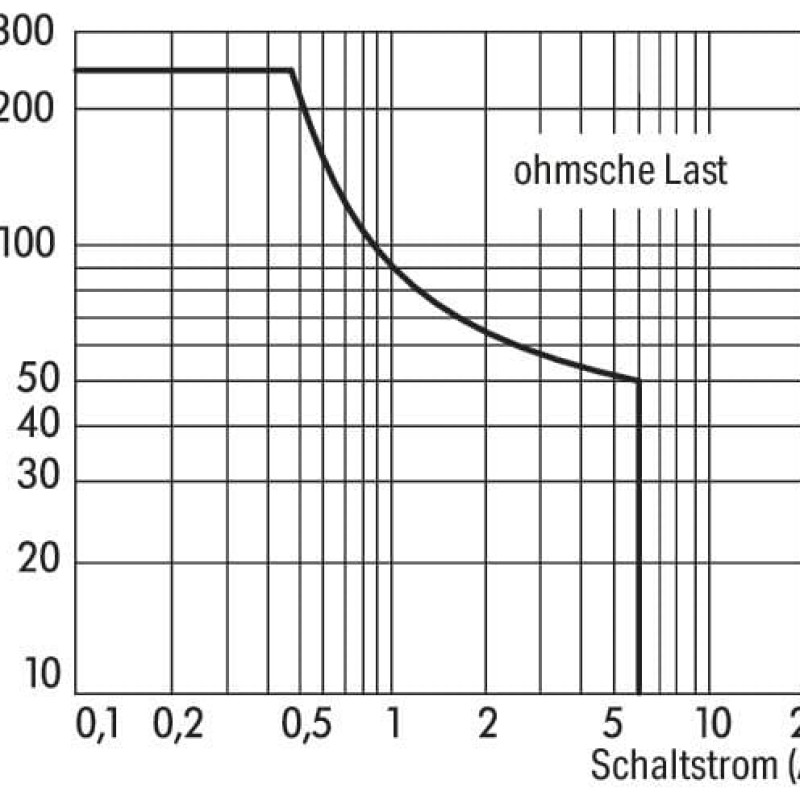

AC 1500 VA; DC see load limit curve
Switching Voltage, Max.
AC 250 V
Material data
Color
gray
Fire load
0.939 MJ
Weight
50.3 g
Mechanical data
Mounting type
DIN-35 rail

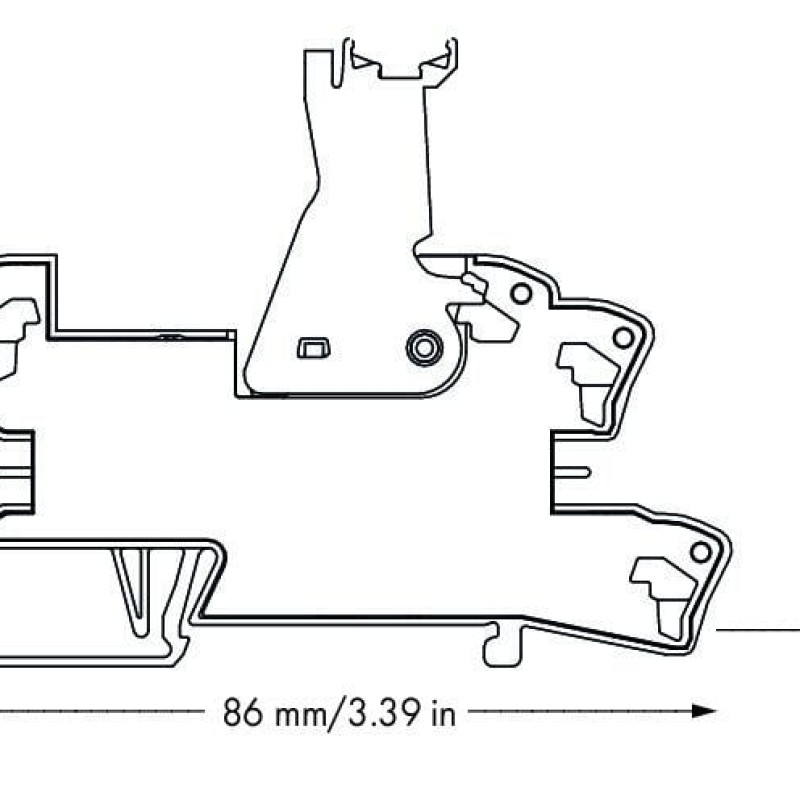

Physical data
Depth from upper-edge of DIN-rail
64 mm
Height
86 mm
Width
15 mm
Safety and protection
B10d (AC 1)
250 V; 6 A; 1 NO: 600,000 switching operations
B10d (AC 15)
250 V; 3 A; 1 NO: 180,000 switching operations
B10d (DC 13)
24 V; 3 A; 1 NO: 360,000 switching operations
Dielectric strength (control/load circuit) (AC, 1 min)Dielectric strength (control/load circuit) (AC, 1 min)
4 kVrms
Dielectric strength (load/load circuit) (AC, 1 min)
3 kVrms
Dielectric strength (open contact) (AC, 1 min)
1.5 kVrms
Pollution degree
3
Protection type
IP20
Rated surge voltage
6 kV
Rated voltage
250 V
Safety information

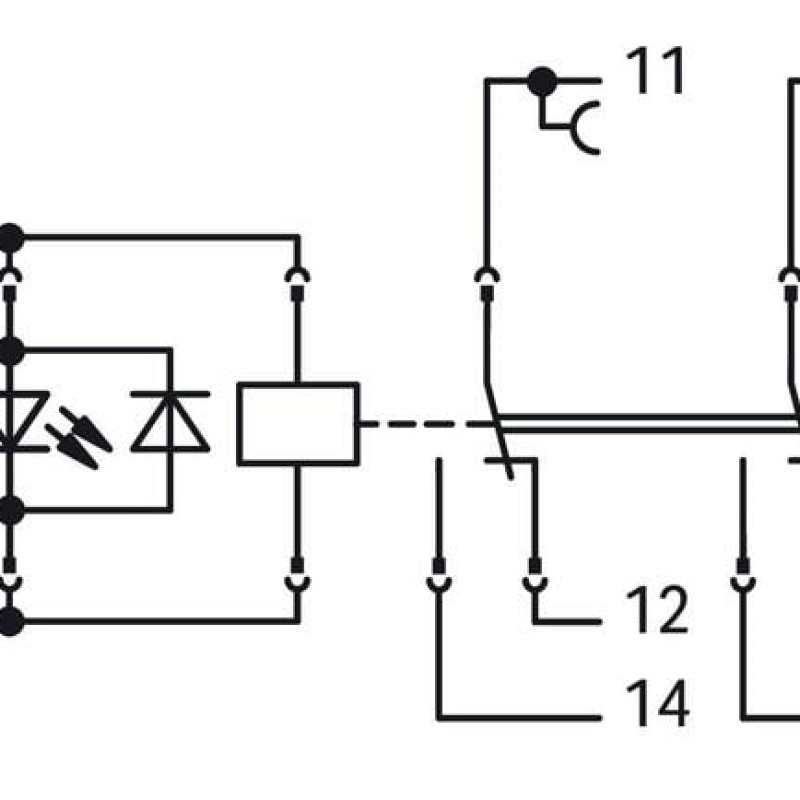

- Per EN 61810-3, it is only permitted to use 1 make contact/1 break contact for safety circuits (11-14 and 22-21 or 12-11 and 21-24).
- A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between
Signaling
Status indicator
Red LED
Standards and specifications
Standards/specifications
UL 508
