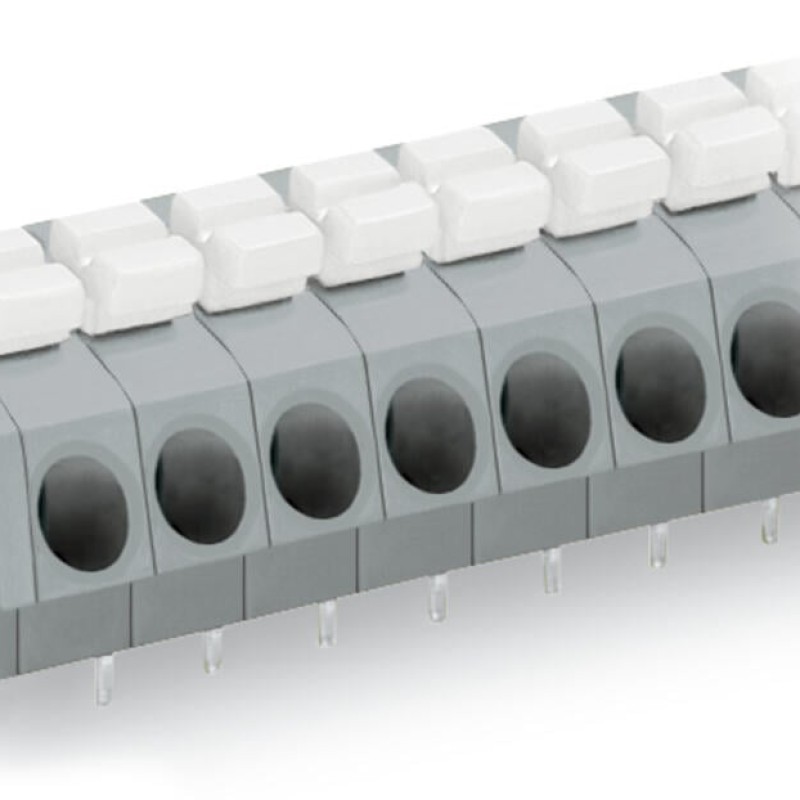

Description 804-102/000-051 PCB terminal block; push-button; 2.5 mm²; Pin spacing 5 mm; 2-pole; Push-in CAGE CLAMP®; 2,50 mm²; pink
- PCB terminal strips with push-buttons and Push-in CAGE CLAMP® connection
- Push-in termination of solid and ferruled, fine-stranded conductors
- A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
- Terminal strips with spacers to increase pin spacing
- Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor
Main attributes 804-102/000-051 PCB terminal block; push-button; 2.5 mm²; Pin spacing 5 mm; 2-pole; Push-in CAGE CLAMP®; 2,50 mm²; pink
Connection 1
Actuation type
Push-button
Conductor connection direction to PCB
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.25 … 2.5 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Pole number
2
Solid conductor
0.25 … 2.5 mm² / 20 … 12 AWG
Strip length
10 … 11 mm
Connection data
Clamping units
2
Number of connection types
1
Number of levels
1
Total number of potentials
2
Environmental requirements
Limit temperature range
-60 … +105 °C
Material data
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
pink
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.032 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
2.2 g
PCB contact
Number of solder pins per potential
2
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (staggered)

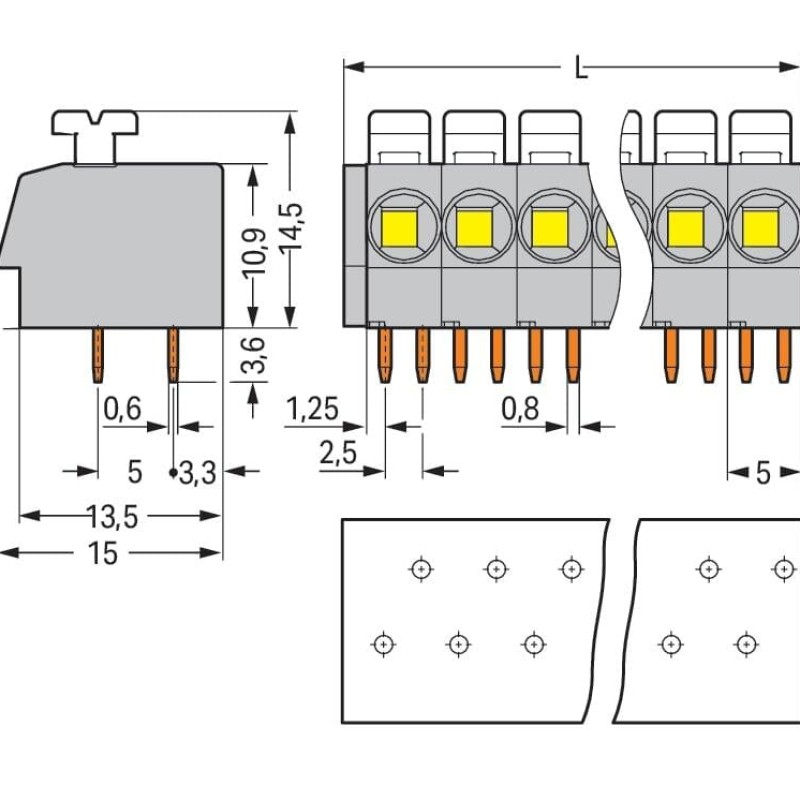

Physical data
Depth
15 mm
Drilled hole diameter with tolerance
1.1 (+0.1) mm
Height
18.1 mm
Height from the surface
14.5 mm
Pin spacing
5 mm
Solder pin dimensions
0.8 x 0.6 mm
Solder pin length
3.6 mm
Width
11.5 mm
