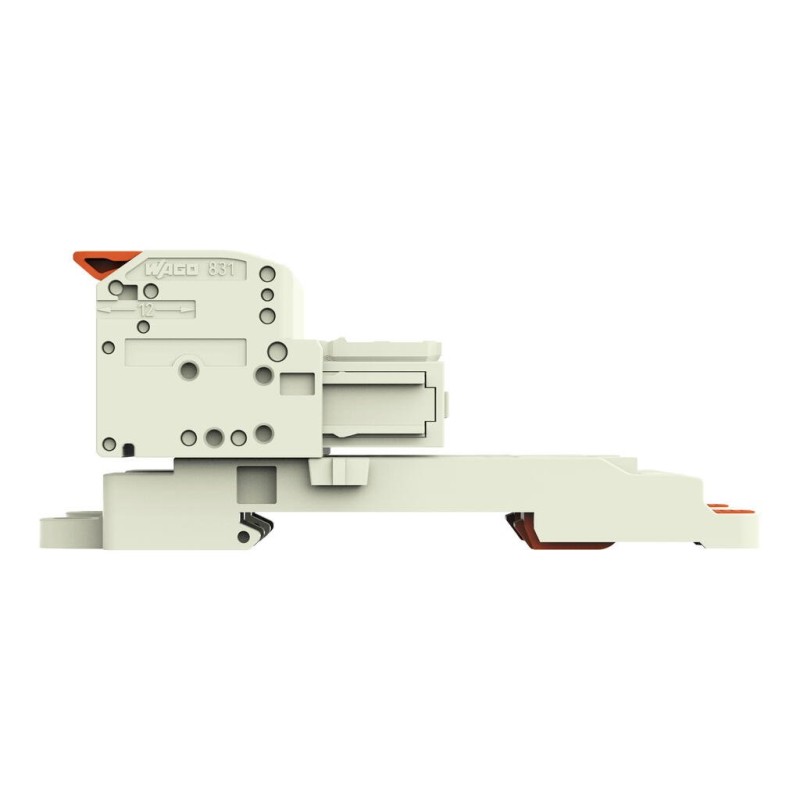

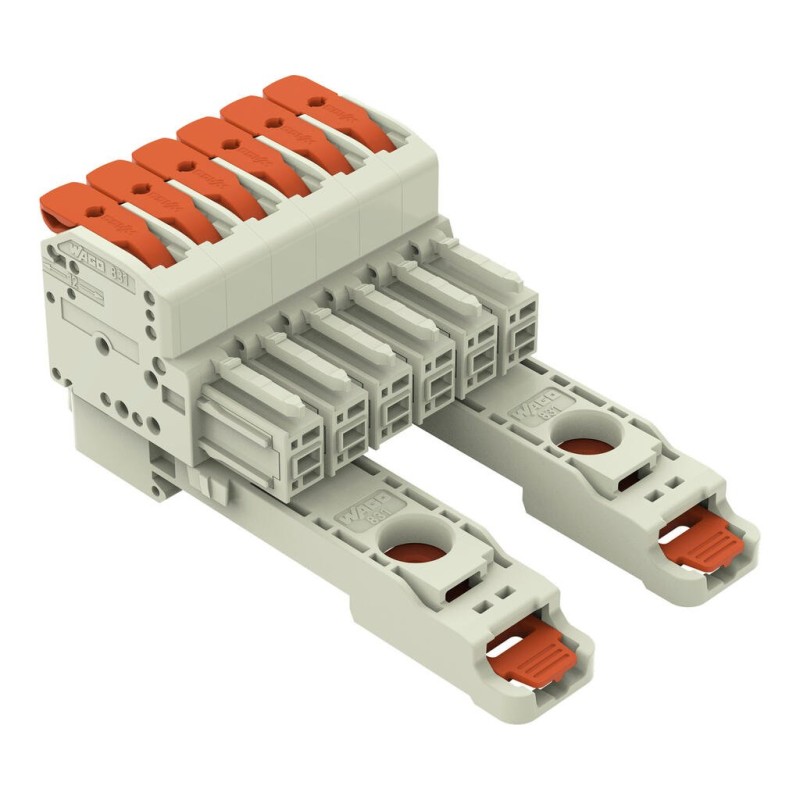

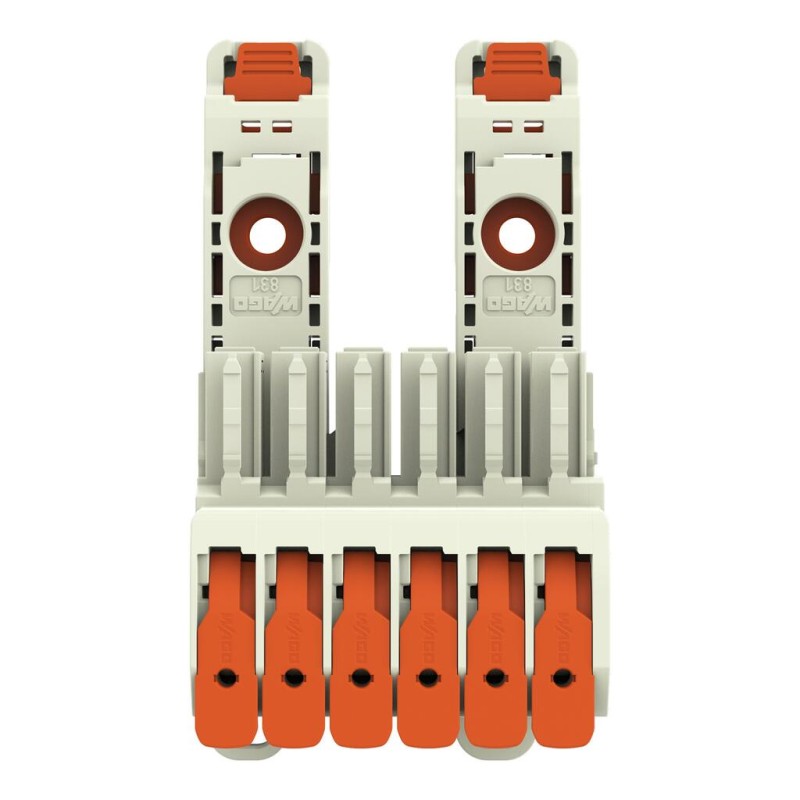

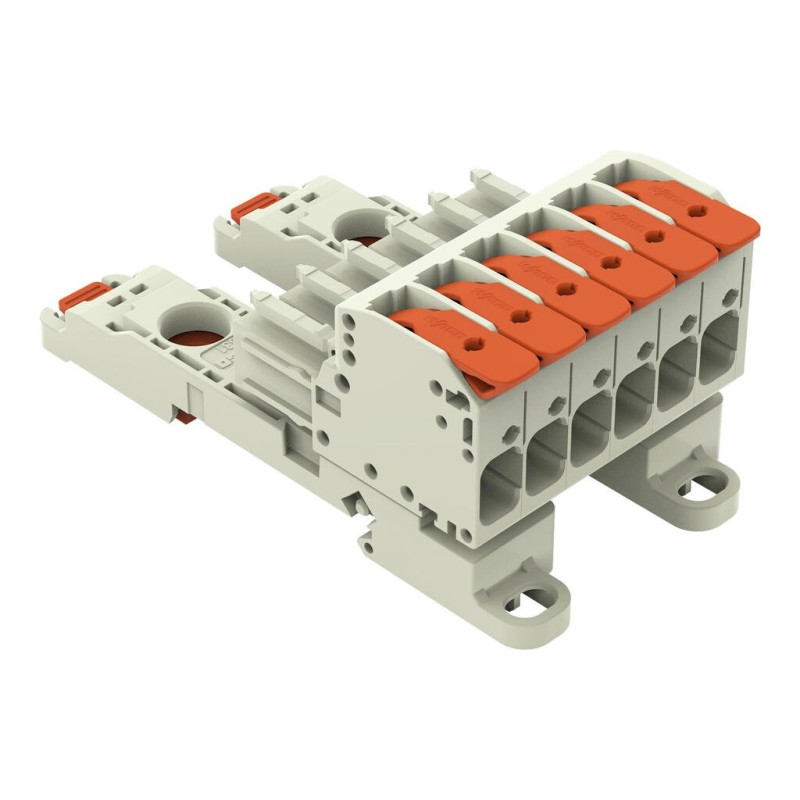

Description 831-1106/306-000 1-conductor female connector;lever;Push-in CAGE CLAMP®;light gray
- Intuitive and tool-free lever actuation
- Universal connection for all conductor types
- Push-in termination of solid and ferruled conductors
- Test slot 0° and 90° to conductor entry
- 100% protected against mismating
- Coding option available
Main attributes 831-1106/306-000 1-conductor female connector;lever;Push-in CAGE CLAMP®;light gray
Connection 1
Actuation type
Lever
Conductor entry direction to mating direction
0 °
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 6 mm²
Fine-stranded conductor; with uninsulated ferrule
0.5 … 6 mm²
Pole number
6
Solid conductor
0.5 … 10 mm² / 20 … 8 AWG
Strip length
11 … 13 mm
Connection data
Number of connection types
1
Number of levels
1
Total number of potentials
6
Environmental requirements
Limit temperature range
-60 … +105 °C
Processing temperature
-35 … +60 °C
Material data
Actuator color
orange
Clamping spring material
Chrome-nickel spring steel (CrNi)
Color
light gray
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.535 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
51.5 g
Mechanical data
Anti-rotation protection
Yes
Mounting type
Panel mounting
Variable coding
Yes
Physical data
Depth
88.4 mm
Height
36.2 mm
Height from upper-edge of DIN-rail
31.6 mm
Pin spacing
7.62 mm
Width
47.6 mm
Plug-in connection
Connector (connection type)
for conductor
Contact type (pluggable connector)
Female connector/socket
Locking of plug-in connection
none
Mismating protection
Yes
Plugging without loss of pin spacing
No
