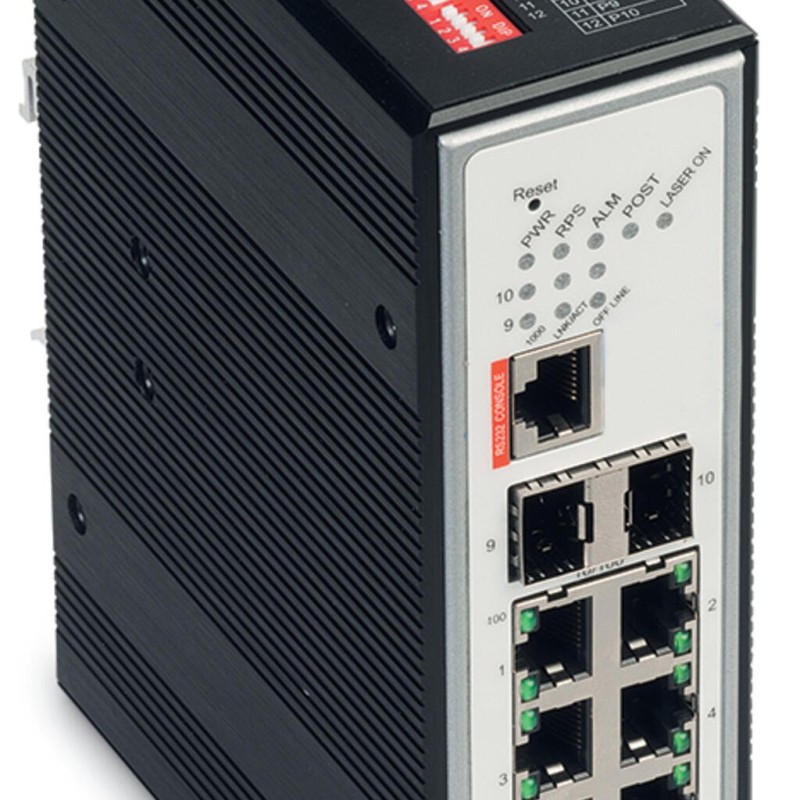

Description 852-303 Industrial Managed Switch;8-port 100Base-TX;2-Slot 1000BASE-SX/LX;black metallic
The configurable 852-303 Industrial ETHERNET Switch is equipped with eight ports 10/100BASE-TX and two SFP slots 100BASE-FX/1000BASE-FX/SX (SFP modules are available as an option).Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. These functions, along with extensive ETHERNET switch options, make it ideal for a wide range of applications.
Features:
- Web-based/SNMP management
- Redundant DC power supply
- Wide supply voltage range: 12 … 60 VDC
- DIP switch to set alarm functions
- Fully compatible with IEEE 802.3, 802.3u, 802.3z, 802.3x, 802.3ad, 802.3ab, 802.1d, 802.1q, 802.1p, 802.1w and 802.1x standards
- Xpress Ring (redundant ring, recovery < 50 ms)
- Non‐blocking, store‐and‐forward switching, rapid spanning tree protocol (RSTP)
- Autonegotiation at all 10/100BASE-TX ports
- Auto‐MDI/MDIX (crossover) at all 10/100BASE‐TX ports
- VLAN (802.1q) VID
- IGMP snooping for multicast filtering
- Port configuration, status, statistics
- Port trunking
- SNMP v1/v2 and RMON
Main attributes 852-303 Industrial Managed Switch;8-port 100Base-TX;2-Slot 1000BASE-SX/LX;black metallic
Connection data
Connection technology: communication/fieldbus
Copper cable: 8 x RJ-45; Fiber optic: 2 x SFP slots (e.g., with SFP module and LC fiber-optic connector)
Connection technology: supply
1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000
Environmental requirements
Ambient temperature (operation)
-40 … +70 °C
Ambient temperature (storage)
-40 … +80 °C
EMC emission of interference
per EN 61000-6-4
EMC immunity to interference
per EN 61000-6-2
Fire load
0.302 MJ
Mounting type
DIN-35 rail
Protection type
IP30
Relative humidity (without condensation)
95 %
Shock resistance
per IEC 60068-2-27
Vibration resistance
per IEC 60068-2-6
Mechanical data
Color
black metallic
Conformity marking
CE
Housing material
Aluminum
Weight
910 g
Physical data
Depth
120 mm
Height
162 mm
Width
50 mm
Technical data
Communication standards
IEEE 802.3z 1000BASE-SX/LX
Configuration options
SNMPv1/v2c/v3
Control Elements
14 x DIP switch: Alarm function power supplies and ports 1 … 10, 100/1000 Mbps fiber optic ports; 1 x Reset button: system restart
Diagnostics
Signal contact, Modbus/TCP, port status, port statistics, port load, traffic monitor, SFP information, syslog, mail alarm, SNMP traps
ESD (contact/air discharge)
8 KV / 15 KV

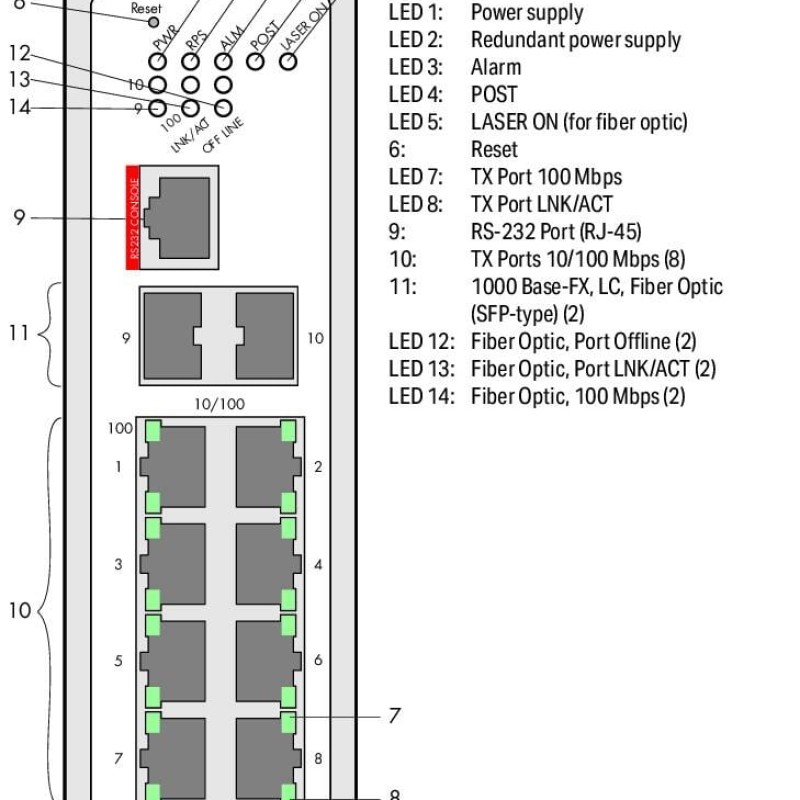

Indicators
Device: LED (PWR, RPS, POST) green: Power supply (primary), redundant power supply (secondary), POST function; LED (ALM) red: Alarm; LED (LASER ON) yellow, LED (LNK/ACT, 100) green, LED (OFFLINE) red: Status of fiber optic ports; per port: LED (100, LNK/A
Jumbo frame size
10000. Byte
MAC table (size)
16000 addresses
Number of 1 Gb/s ports SFP
2
Number of 100 Mbps ports
8
Optical fiber type
Single-Mode and Multi-Mode
Power consumption (max.)
12 W
Redundancy function
Redundant DC power supply; STP; RSTP; MSTP; Jet Ring < 300 ms; Xpress Ring < 20 ms; Dual Homing < 20 ms; Dual Ring; ERPSv2 < 50 ms; LCAP
Supply voltage
12 … 60 VDC; Cable length: < 3 m
Switching mode
Store-and-forward; non-blocking
Transmission medium (communication/fieldbus)
Copper cable: Cat. 5e or higher, 100 m maximum cable length; Fiber optic: SX Multi-Mode, LX Single-Mode
Transmission rate
Copper cable: 10/100 Mbit/s; Fiber optic:1000 Mbit/s
VLAN
Port-based and tag-based (4k VIDs)
