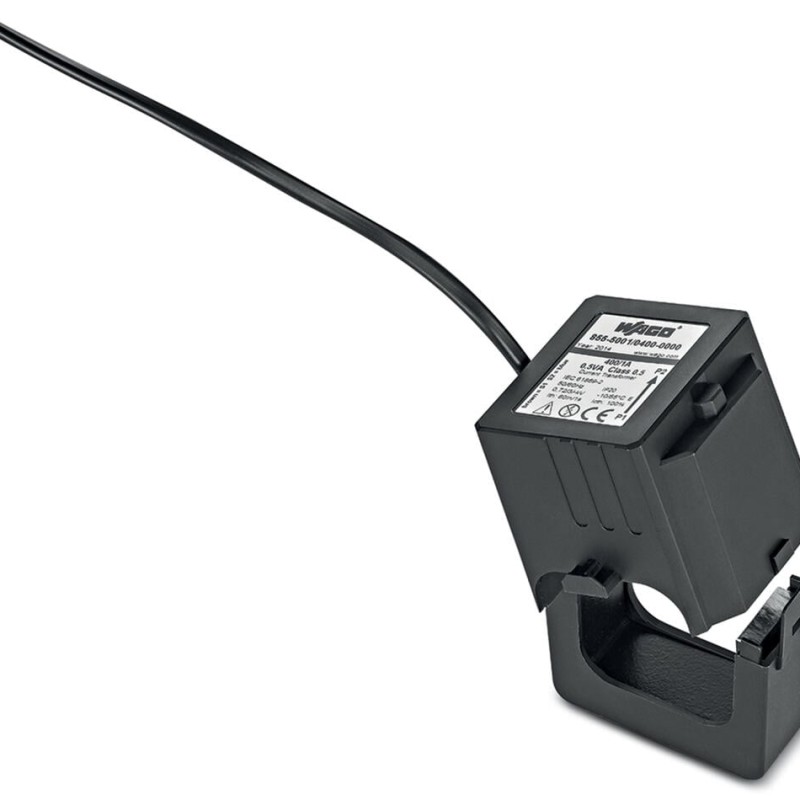

855-5005/500-001 Split-core current transformer;Primary rated current: 500 A;Secondary rated current: 5 A

855-5005/500-001 Split-core current transformer;Primary rated current: 500 A;Secondary rated current: 5 A
855-5005/500-001 Split-core current transformer;Primary rated current: 500 A;Secondary rated current: 5 A
855-5005/500-001 Split-core current transformer;Primary rated current: 500 A;Secondary rated current: 5 A
New
Pre-Order
Date Available: 10/07/2026
Article: 855-5005/500-001
Brand: Wago
7,043.52 грн.
Found it cheaper?
Payment
Delivery
Delivery by Nova Poshta
Delivery by Nova Poshta
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
Pickup (Kyiv)
For free

Description 855-5005/500-001 Split-core current transformer;Primary rated current: 500 A;Secondary rated current: 5 A

Short description:

WAGO's compact split-core current transformers are ideal for retrofitting existing systems. They are perfect for applications in which the current path must not be disrupted. The transformer's accuracy permits extremely precise current measurements. The split-core current transformers are capable of supplying the specified rated power at the end of the secondary cable. All transformers are supplied with color-coded cables. Two UV-resistant cable ties are also included for secure and easy mounting.

Features:
  • Current ratios from 500 A (primary side) and 5 A (secondary side)
  • No primary cable interruption
  • Ideal for use in very confined spaces
  • Rapid mounting
  • For use around insulated cables (up to 42 mm Ø)
  • Compact and hinged
  • Color-coded connection cable (3 m)

Main attributes 855-5005/500-001 Split-core current transformer;Primary rated current: 500 A;Secondary rated current: 5 A

Connection data
Cable type 2 x 1.5 mm²; fine-stranded
Color code black = S1; red = S2
Feedthrough for measurement conductor Ø 42 mm
Environmental requirements
Ambient temperature (operation) -10 … +55 °C
Ambient temperature (storage) -20 … +70 °C
Operating altitude (max.) 2000 m
Relative humidity 5 … 85 % (without condensation)
Input
Measured variable Current
Input – current transformer
Primary rated current 500 A
Rated continuous thermal current Iₜₕ 100 %
Rated frequency 50 … 60 Hz
Rated short-time thermal current Iₜₕ 60 x IN / 1 s
Rated surge current Iᵈyₙ 2.5 x Ith
Material data
Weight 537 g
Measurement error
Accuracy class 1
Mechanical data
Mounting type Split-core current transformer (suspended)
Output – current transformer
Rated power Sᵣ 0.5 VA
Secondary rated current 5 A

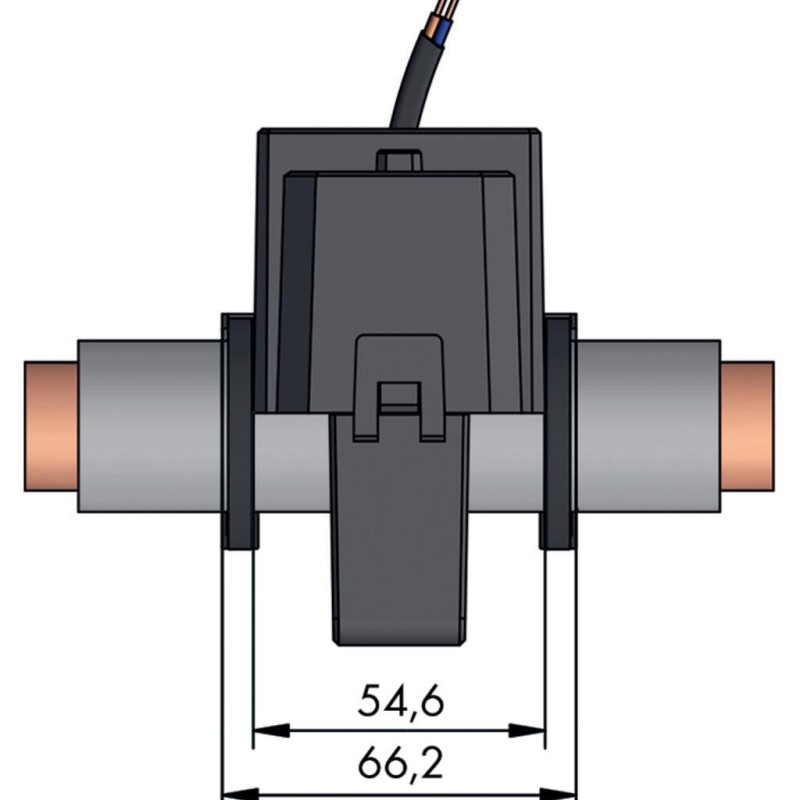

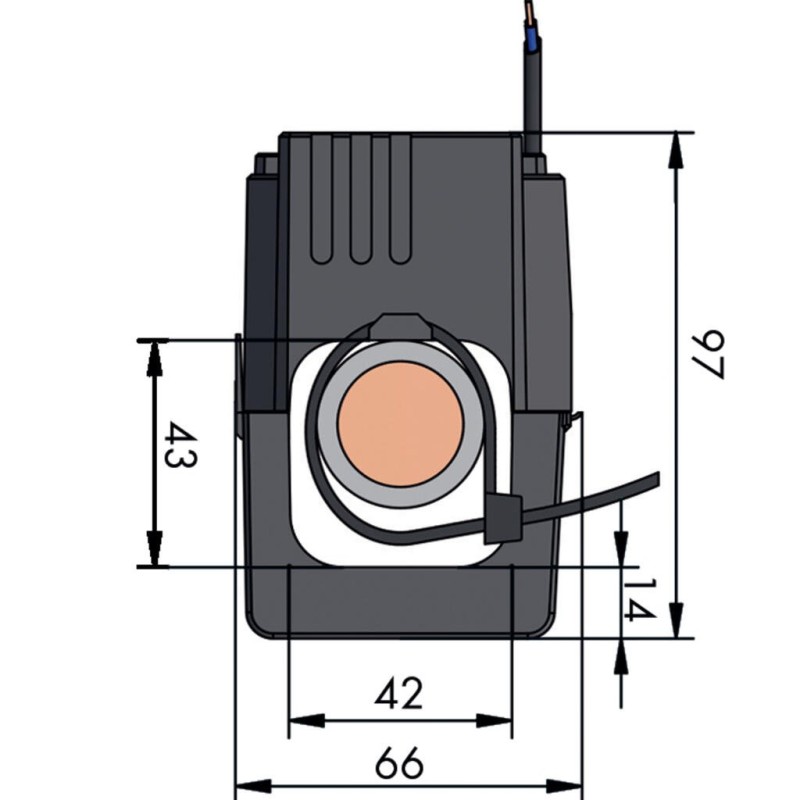

Physical data
Cable length 3 m
Depth 66 mm
Height 97 mm
Width 66.2 mm
Safety and protection
Highest voltage for equipment Uₘ AC 720 Vrms
Protection type IP20
Test voltage AC 3 kV; 50 Hz; 1 min
Standards and specifications
Conformity marking CE
Standards/specifications EN 61869-2
