Description 855-505/400-1001 Plug-in current transformer;Primary rated current: 400 A;Secondary rated current: 5 A
Short description:WAGO's plug-in current transformers (855 Series) are inductive, single-conductor current transformers. Due to the measurement principle used, these current transformers are exclusively designed for AC network applications.
Features:- Screwless CAGE CLAMP® connection technology
- Several mounting options available
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120 % the nominal primary current
- Low-voltage current transformer for operating voltages up to max. 1.2 kV
- For 690 V power networks
- UL recognized components
Main attributes 855-505/400-1001 Plug-in current transformer;Primary rated current: 400 A;Secondary rated current: 5 A
Connection 1
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 4 mm² / 28 … 12 AWG
Solid conductor
0.08 … 4 mm² / 28 … 12 AWG
Strip length
9 … 10 mm
Environmental requirements
Ambient temperature (operation)
-5 … +50 °C
Ambient temperature (storage)
-25 … +70 °C
Operating altitude (max.)
1000 m
Input
Measured variable
Current
Input – current transformer
Overcurrent limiting factor
FS5 / FS10 (type dependent; see type plate inscription)
Primary rated current
400 A
Rated continuous thermal current Iₜₕ
1.2 x IN
Rated frequency
50 … 60 Hz
Rated short-time thermal current Iₜₕ
60 x IN / 1 s (max. 100 kA / 1 s)
Material data
Insulation class
E
Weight
366 g
Measurement error
Accuracy class
1
Mechanical data
Mounting type
Installation on round cable
Output – current transformer
Rated power Sᵣ
10 VA
Secondary rated current
5 A

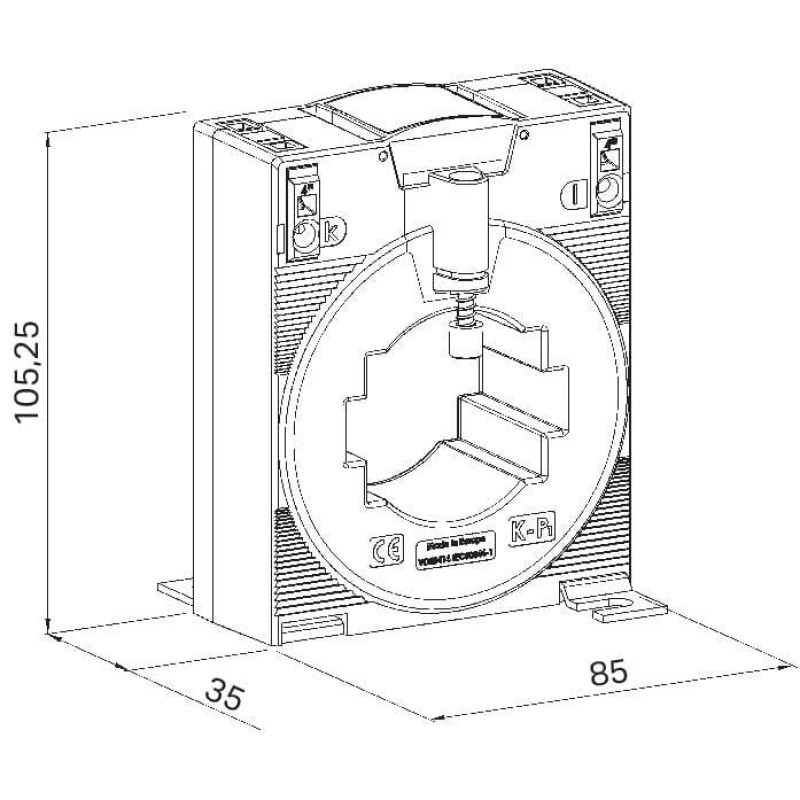

Physical data
Depth
52 mm
Height
105.25 mm
Width
85 mm
Safety and protection
Highest voltage for equipment Uₘ
AC 1.2 kVrms
Test voltage
AC 6 kV; 50 Hz; 1 min
Standards and specifications
Conformity marking
CE
Standards/specifications
UL: E356480
