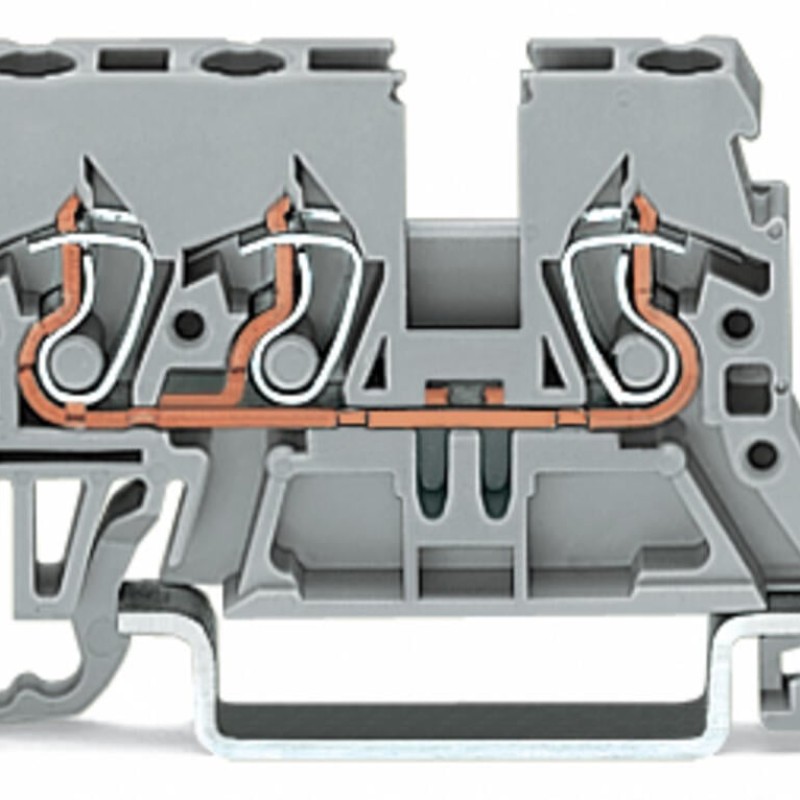

Description 870-681 3-conductor through terminal block;2.5 mm²;lateral marker slots;gray
This through terminal block (item number 870-681) is designed for quick and easy connections. Conductors should only be connected to this through terminal block if their strip length is between 6 and 7 mm . Our mini rail-mount terminal blocks are perfect for working in tight spaces thanks to their compact design. With various mounting and actuation options, they offer maximum flexibility. Featuring conductor terminals along with CAGE CLAMP®, this connector delivers reliable performance. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
An operating tool is used to operate this mini rail-mount terminal block.
Main attributes 870-681 3-conductor through terminal block;2.5 mm²;lateral marker slots;gray
Connection 1
Actuation type
Operating tool
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 4 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.08 … 1.5 mm² / 28 … 14 AWG
Solid conductor
0.08 … 2.5 mm² / 28 … 12 AWG
Strip length
6 … 7 mm
Wiring direction
Front-entry wiring

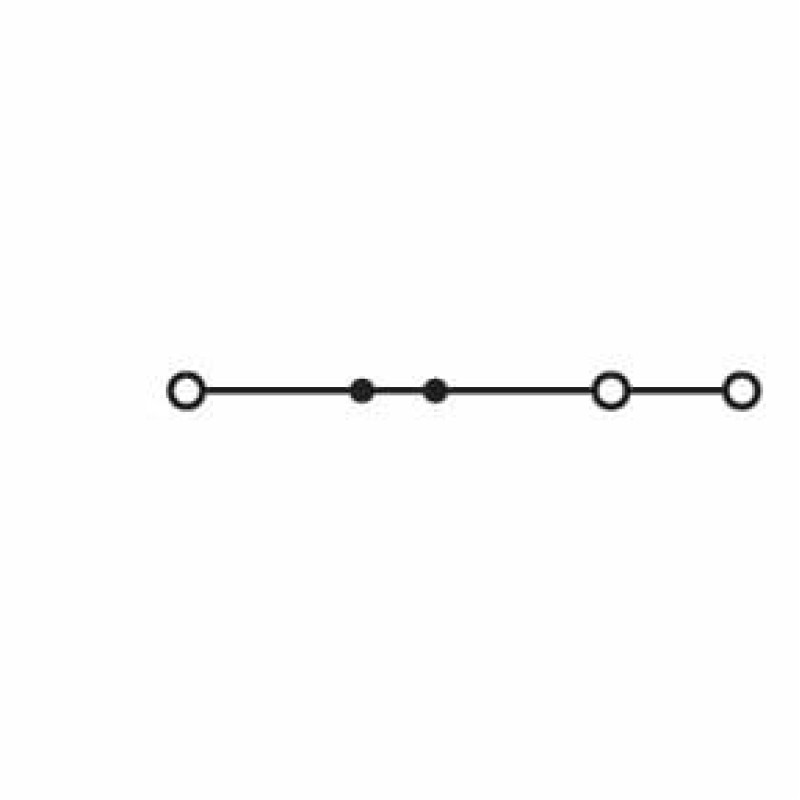

Connection data
Clamping units
3
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
gray
Fire load
0.099 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
6 g
Mechanical data
Design
horizontal type
Marking level
Side marking
Mounting type
DIN-35 rail

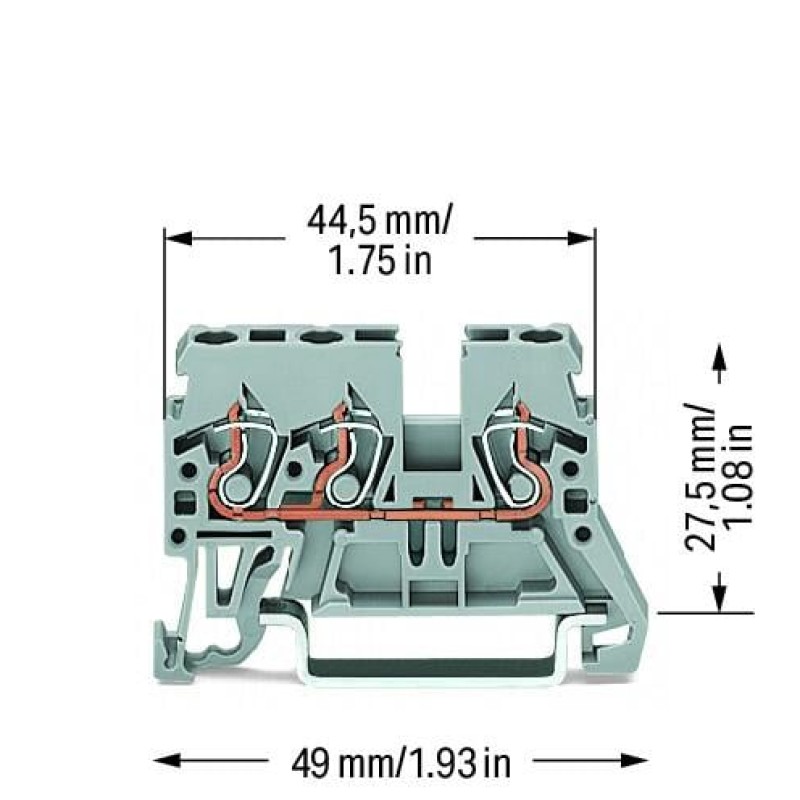

Physical data
Depth from upper-edge of DIN-rail
27.5 mm
Height
49 mm
Width
5 mm
