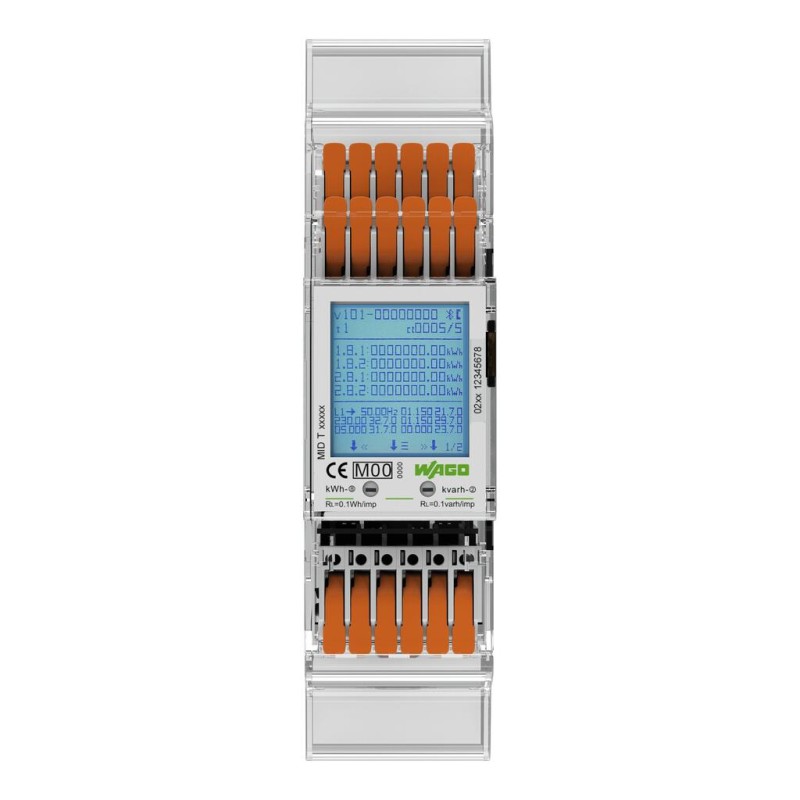

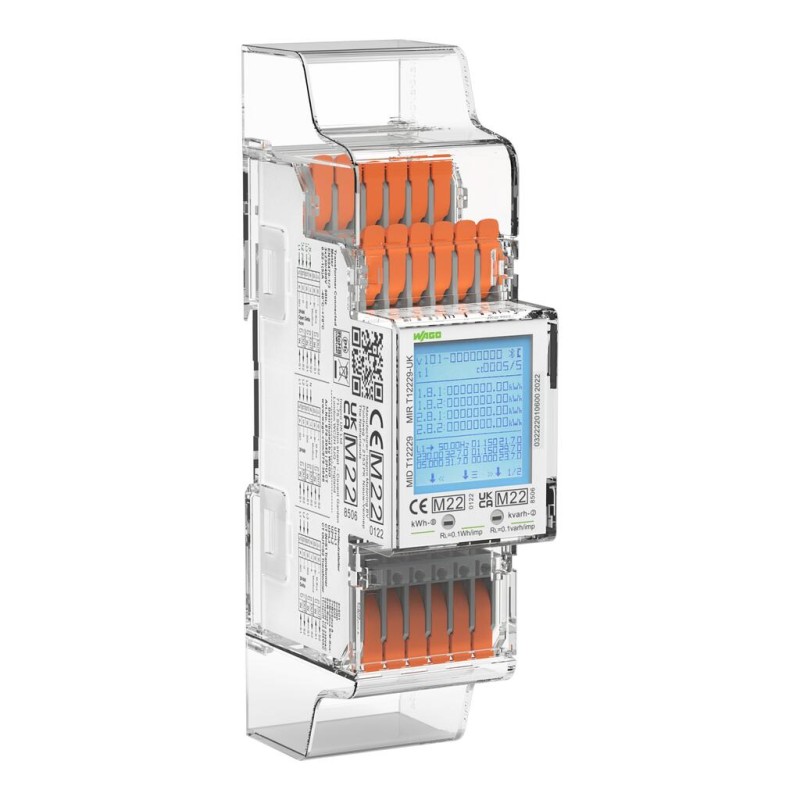

Description 879-3040 Energy meter (MID25);for transformer connection;1 A / 5 A
Short description:Crucial for trimming costs, comprehensive energy measurement is necessary to optimize energy consumption. WAGO’s portfolio now has new energy meters that simplify this task while offering several key advantages. They use push-in connection technology with a lever, making them connect quickly and easily. Versions for current transformers are even slimmer at only 35 mm. These slim profiles save a tremendous amount of control cabinet space. In addition to the values for active and reactive energy, the energy meters also record the mains frequency, as well as current, voltage and power for all phases. And the user can conveniently scan all of these energy characteristics at a glance on a large, illuminated display.
Features:
- Push-in CAGE CLAMP® and lever save time at every stage
- Real space savings: 35 mm wide (2PUCT)
- Measurement of supply and purchase
- Energy measurement in four tariffs
- The communications pro: M-Bus/Modbus® interface and two S0 pulse outputs
- Full transparency at a glance: display energy quality characteristics on an illuminated full-format display
- Intuitive configuration: touch-sensitive controls and configuration app via Bluetooth®
Main attributes 879-3040 Energy meter (MID25);for transformer connection;1 A / 5 A
Communication
Communications
Modbus®
Indicators
LCD with backlight
Interface
RS-485 (2-wire); 2x S0 interfaces (configurable)
Speed control input
230 VAC
Configuration
Configuration options
Touch-sensitive controls

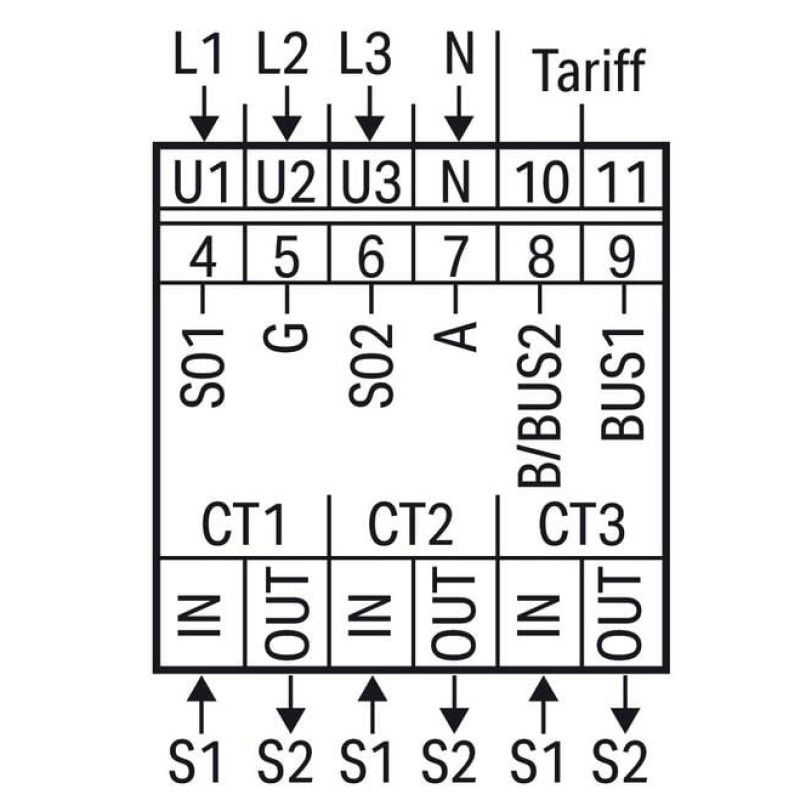

Connection 1
Actuation type
Lever
Connection technology
Push-in CAGE CLAMP®
Connection type 1
Voltage/current
Fine-stranded conductor
0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5 mm²
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5 mm²
Solid conductor
0.2 … 4 mm² / 24 … 12 AWG
Strip length
9 … 11 mm
WAGO connector
WAGO 2604 Series
Connection 2
Actuation type 2
Lever
Connection technology 2
Push-in CAGE CLAMP®
Connection type 2
Communication/rate control input
Fine-stranded conductor 2
0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor; with insulated ferrule 2
0.25 … 2.5 mm²
Fine-stranded conductor; with uninsulated ferrule 2
0.25 … 2.5 mm²
Solid conductor 2
0.2 … 4 mm² / 24 … 12 AWG
Strip length 2
9 … 11 mm
WAGO 2 connector
WAGO 2604 Series
Connection data
Connection position
Output on the bottom (PU)
Design
2PU CT
Environmental requirements
Ambient temperature (operation)
-40 … +70 °C
Relative humidity
≤ 75% (during storage ≤ 95 %)
Input
Current transformation ratio
1:1 … 9999 : 1 / 5:5 … 9995 : 5
Current transformer (secondary)
5 A
Frequency range
45 … 60 Hz
Input current Iₗ
≤ 5 A
Input signal type
Voltage
Input voltage range
±20 %
Measured variable
Voltage
Network configuration
Two-wire, three-wire and four-wire networks
Nominal input voltage Uᵢ ₙₒₘ
3 x AC 230 … 400 V
Reference current Iᵣₑf
1 A
Material data
Housing material
PC 940A
Weight
165 g
Measurement error
Accuracy class
Class B (= 1 % error); Active energy per EN 50470-3
Calibration validity period
8 Jahre
Mechanical data
Housing design
DIN-rail-mount enclosure
Mounting type
DIN-35 rail

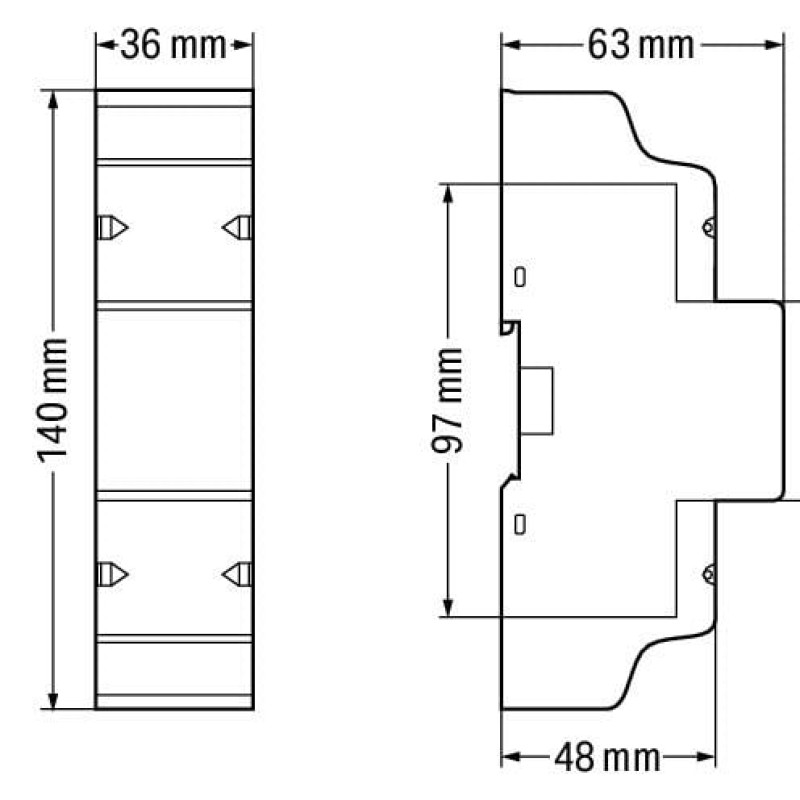

Physical data
Depth
63 mm
Height
97 mm
Note (dimensions)
Height with cover: 140 mm
Width
36 mm
Power supply
Power consumption Pₘₐₓ. (phase; active power)
2 W
Power consumption Pₘₐₓ.</sub> (phase; apparent power)
10 VA
Power supply type
Via measurement circuit
Safety and protection
Dielectric strength
4 kV; 1 min
Impulse withstand voltage (1.2/50 μs)
6 kV
Pollution degree
2
Protection class
II
Protection type
IP51 / IP20; IP51 (front side); IP20 (connection)
Signal processing
Measured variables (calculated)
Active and reactive energy in supply and reference direction
Measurement type (load profile)
No
Obtaining the measured value
for transformer connection;
Standards and specifications
Accounting instructions
MID
Conformity marking
CE
Standards/specifications
EN 50470-1/3
