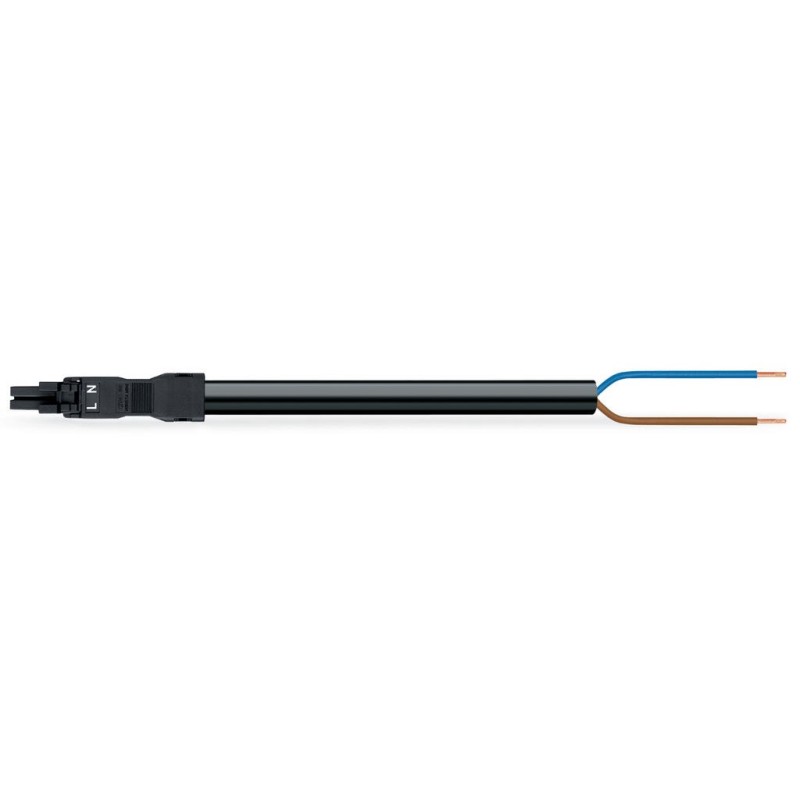

Description 891-8992/116-801 pre-assembled connecting cable;Eca;Socket/open-ended;black
Cable assembly WINSTA® MINI A coding
The WINSTA® MINI cable assembly with protection type IP40 provides the foundation for assembly of fine-stranded and solid conductors. WAGO pluggable installation connectors are used when specifications repeat or are distributed on a defined grid, for example for installing grid lighting or flush-mount lighting. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid granular objects with a diameter of less than 1 mm in accordance with protection type IP40. The WINSTA® MINI pluggable installation connector with A coding in black or white is normally used for general mains applications in power distribution. Due to its particularly small dimensions, our WINSTA® MINI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology is very suitable in very tight spaces, i.e., for connections when very little room is available. This product meets all the mandatory fire protection requirements of fire class E; as a result it can be used in domains where fire safety is relevant. The cable assembly is free of halogen. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials do not easily ignite.
Fast, secure pluggable connections – cable assemblies from WAGO
The cable is pre-assembled with a socket and a free end. WINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with fire class E from WAGO.
- effective protection against mismating
- consistent IP40 protection
- with A coding for use in many general mains applications
- ready to install and use immediately
- quick replacement of defective units during ongoing operation

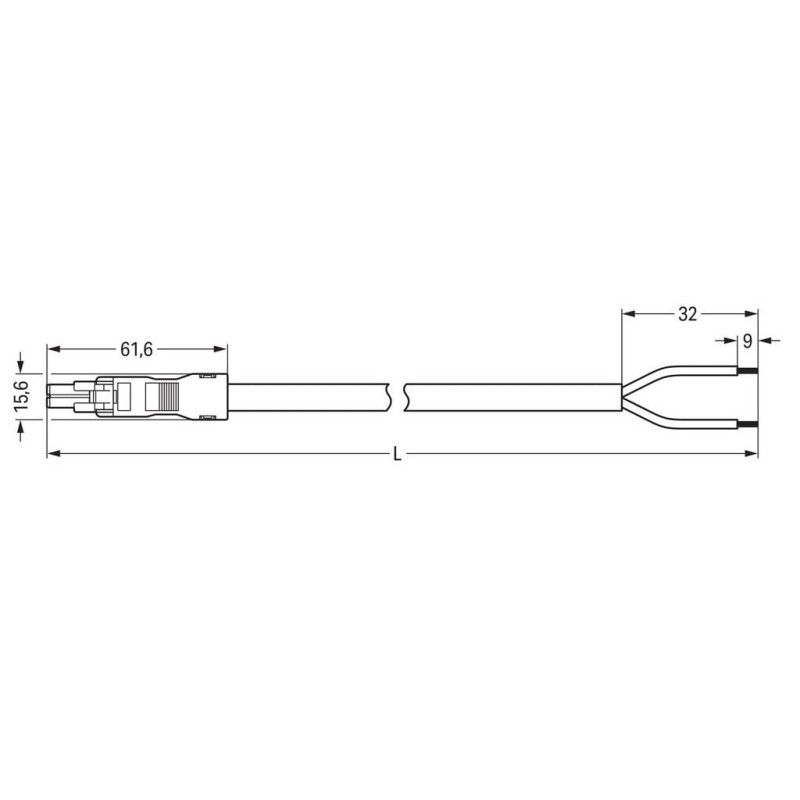

Main attributes 891-8992/116-801 pre-assembled connecting cable;Eca;Socket/open-ended;black
Connection 1
Connection type
Socket - Free end
Pole number
2
Strip length
9 mm
Strip length (outer insulation)
32 mm
Wire cross-section
1.5 mm²
Connection data
Conductor preparation
ultrasonically tip-bonded
Total number of potentials
2
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
black
Connector color
black
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.029 kg/m
Fire class per EN 50575
Eca
Fire load
239.686 MJ
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
white
Rubber cable
No
Sheath material
Halogen-free
Sheathed cable color
black
Silicon-free
Yes
Strain relief color
black
Weight
630.8 g
Mechanical data
Cable type
H05Z1Z1-F 2x1.5
Coding
A
Connection type
Socket - Free end
Marking
L N
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
L N
Protection type
IP40
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Connecting cable
Unmating force of a plug-in connection
when unlocked: approx. 20 … 70 N (depending on pole number)
Use
General mains applications
Variable coding
No
Physical data
Height
13.2 mm
Pin spacing
4.4 mm
Total length
8 m
Width
15.6 mm
Plug-in connection
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
