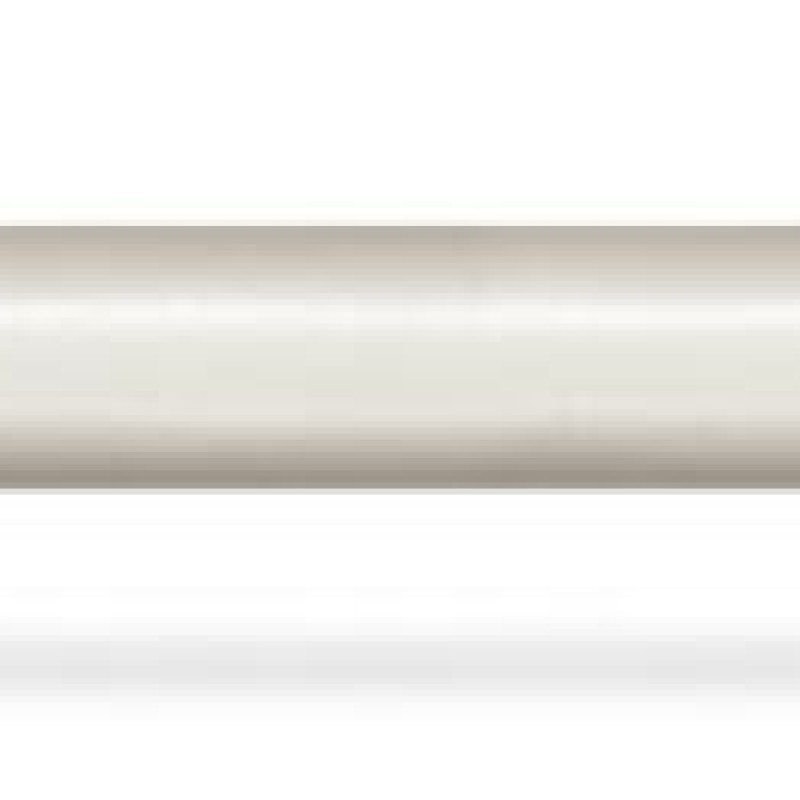

Description 891-8993/016-302 pre-assembled interconnecting cable;Eca;Socket/plug;white
Cable assembly WINSTA® MINI 3-pole
For power and signal transmission: The WINSTA® MINI cable assembly with protection type IP20. On PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to establish connections according to an enormous variety of requirements in no time flat. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. Standard mains applications for almost any domain of use can be implemented with WINSTA® MINI pluggable installation connectors with A coding. Thanks to its particularly compact dimensions, our WINSTA® MINI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology is specifically suitable in very restricted spaces, i.e., for installations when very little room is available. According to the European CPR, the fire class of the cables used in construction is decisive for the safety of buildings, too. For houses with average safety requirements, cable assemblies with fire class E are suitable. Eliminating halogens as an additive in the manufacture of this cable assembly substantially increases fire safety and reduces environmental pollution.
Fast, secure pluggable connections – cable assemblies from WAGO
The cable assembly is provided with a socket and a plug. The WINSTA® Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, more reliable, and error-free. Using this pre-assembled system decreases time spent on assembly and installation errors at the construction site. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with strain relief hosting from WAGO.
- pluggable installation connectors with protection against mismating
- compact design for conductors with a cross-section up to 1.5 mm²
- with A coding for use in many general mains applications
- custom-engineered solutions
- quick replacement of defective units during ongoing operation
Main attributes 891-8993/016-302 pre-assembled interconnecting cable;Eca;Socket/plug;white
Connection 1
Connection type
Socket - Plug
Pole number
3
Wire cross-section
1.5 mm²
Connection data
PE function
Preceding PE contact
Total number of potentials
3
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
white
Connector color
white
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.043 kg/m
Fire class per EN 50575
Eca
Fire load
90.069 MJ
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
black
Rubber cable
No
Sheath material
Halogen-free
Sheathed cable color
white
Silicon-free
Yes
Strain relief color
white
Weight
305.7 g
Mechanical data
Cable type
H05Z1Z1-F 3G1.5
Coding
A
Connection type
Socket - Plug
Marking
L ⏚ N
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Potential marking
L ⏚ N
Protection type
IP20; IP40 when mated
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Interconnecting cable
Unmating force of a plug-in connection
when unlocked: approx. 20 … 70 N (depending on pole number)
Use
General mains applications
Variable coding
No
Physical data
Height
14 mm
Pin spacing
4.4 mm

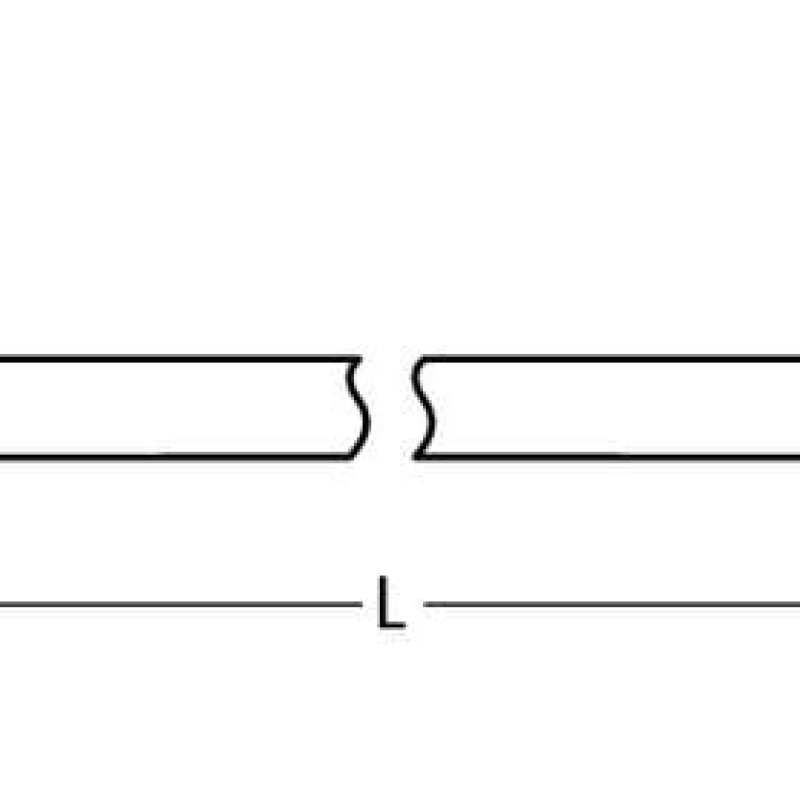

Total length
3 m
Width
17.9 mm
Plug-in connection
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
