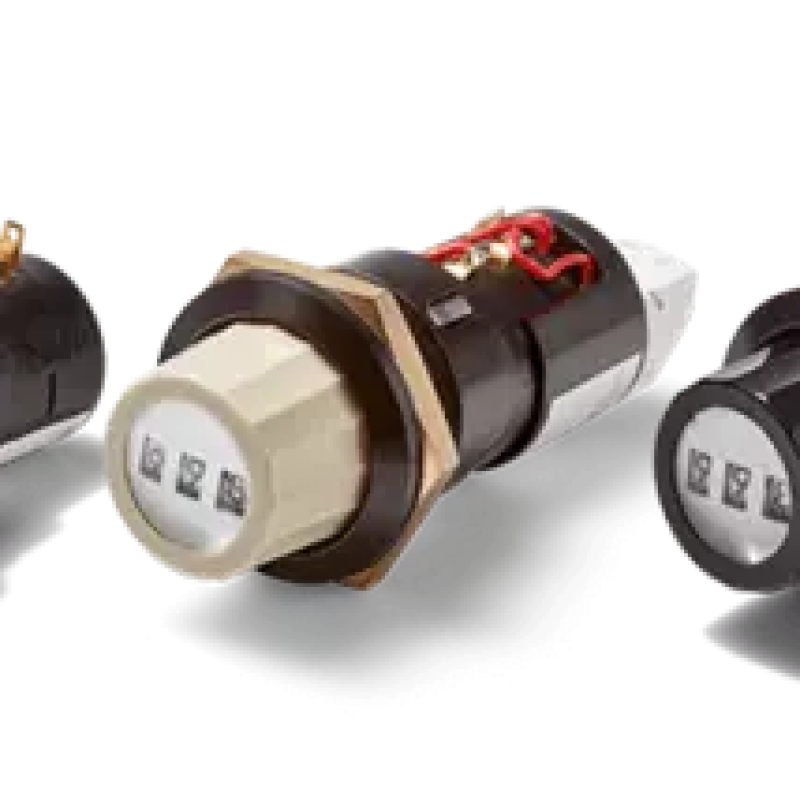

Description Multiturn Rotary Potentiometer with Knob MD22
Completely pre-assembled set, with 3-digits, button in two colours - ready for installation on the front panel
- Completely pre-assembled set
- 000...999 good readability of the digits
- Knob in grey or black
- Versions with IP65 over the front panel
- Soldering lugs or clamp connection
- With many options
The manual adjusters MD22 with adjustment knob are for applications that require a precise multi-turn rotary potentiometer.
These manual adjusters are delivered ready to install. They consist of a multiturn precision rotary potentiometer series AL17 and the adjustment knob. The potentiometer is available in a 3, 5 or 10 turn version. The radial gold-plated connection pins are suitable for flat connectors (2.8 mm according to DIN 46247 Part 3).
Main attributes Multiturn Rotary Potentiometer with Knob MD22
Technical parameters
Effective electrical angle of rotation
max. 3600°
Functions / Features
With mech. stop, Opt. multiganged/ tandem, Opt. rear shaft, With adjustment knob
Resolution
Depends on resistance value
Output signal
Analogue
Electrical connection
Radial, Solder contacts, Terminal connection
Protection class
IP65
Dimensions
Mounting
Bushing
Shaft diameter
With knob
Housing depth
≥ 25 mm
Technology
Sensor technology
Wirewound Potentiometer
