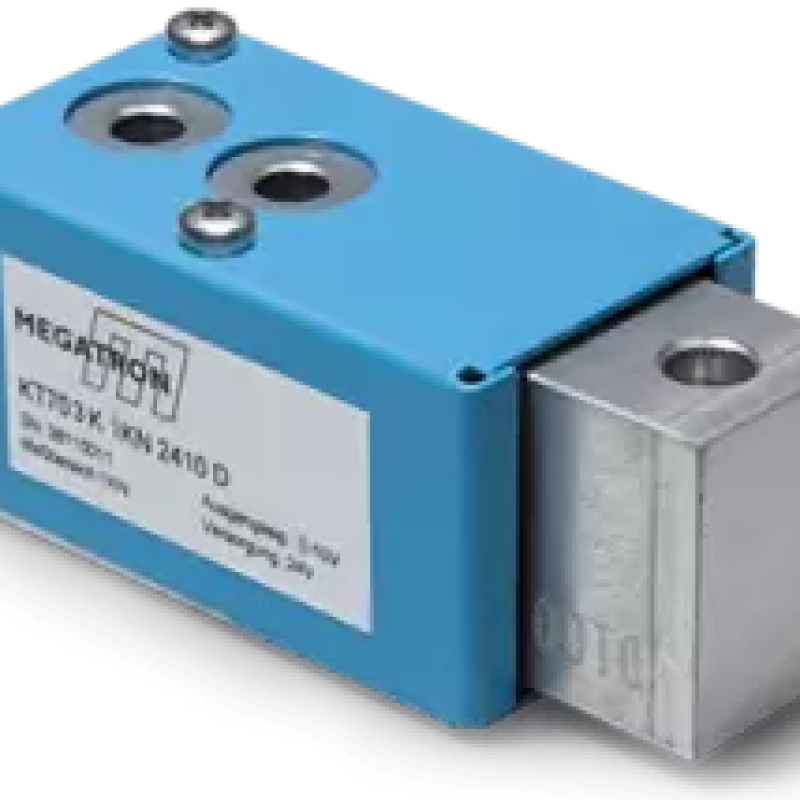

Description Shear Beam KT703
Compact force sensor with integrated digital measuring amplifier and aluminium measuring body for measuring ranges up to 1 kN
- Compact shear beam with integrated digital transducer
- Output 0…10V, 4…20 mA @24 VSUP
- Force transmission via M5-thread
- Strain gauge
- Aluminium alloy
The KT703 force transducers are characterized by their compact design, although they have an integrated digital measuring amplifier providing output signals of 0...10 V, 4...20 mA @ 24 VSUP. The force is applied via the M5 female thread for measuring ranges up to 1 kN for compressive or tensile forces. The aluminium measuring body operates on the double bending beam principle. Mounting with two screws is simple and suitable for any flat, stable surface. The Wheatstone full bridge measuring principle has been proven for decades in this type of force sensor and ensures a long service life.
Main attributes Shear Beam KT703
Technical parameters
Output signal
4..20 mA with integrated amplifier, 0..10 V with integrated amplifier
Protection class
IP40
Design
Shear Beam
Nominal Load
200 N, 500 N, 1000 N
Direction of Force
Tension and Compression
Amplifier
With Amplifier
