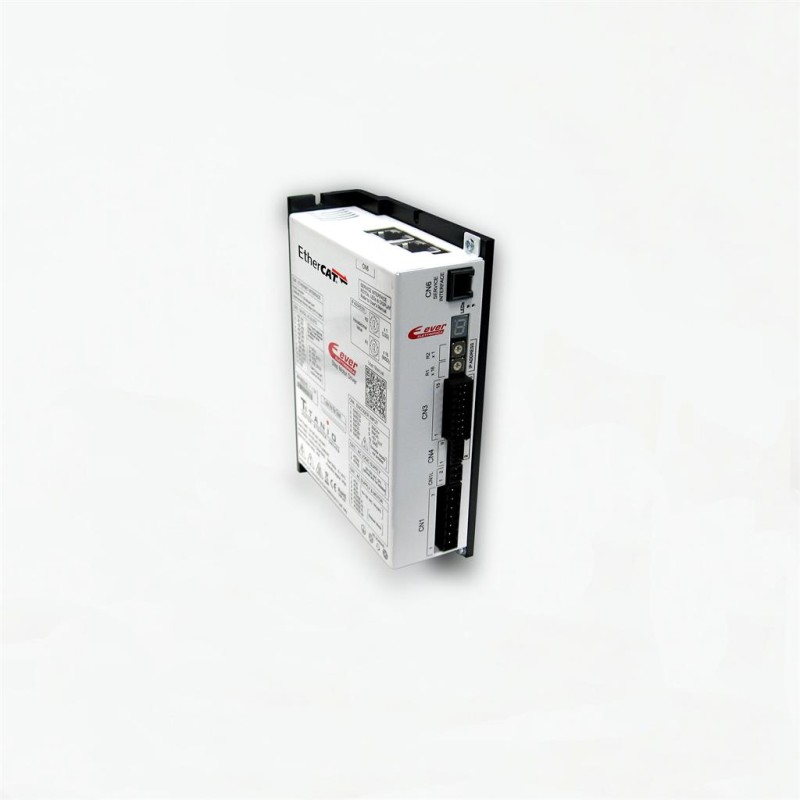

Driver SW5A4085H241-00C0690

Description Driver SW5A4085H241-00C0690

Certifications

Functions

●'Stand Alone' mode, programmable and with PLC functionalities integrated. Built in powerfull Motion Module functionality assures perfect synchronization among axes and reduces Master Controller workload.

● Wide range of Positioning Control Modes (homing, relative, absolute, target)

● Autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles

● Torque mode for operation with torque limitation

● Speed control thanks to digital inputs, analogue inputs or fieldbus

● Electronic CAM with advanced programming of internal profiles inside the drive

● Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)● Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.

● Possibility to synchronize the movements in multiaxis systems, even without fieldbus

● Enabling and on-the-fly changing of the motion control modes

● Closed loop of torque, speed and position with encoder

Main Features

● Vectorial control

● Several fieldbus

● Serial Service for real time programming and debugging

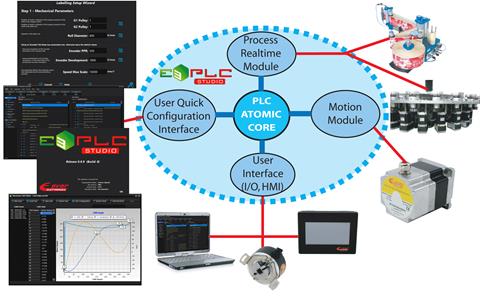

● New e3PLC Programming Environment, easy and intuitive

CONNECTORS KIT

SOFTWARE KIT FOR CONFIGURATION

Functionalities

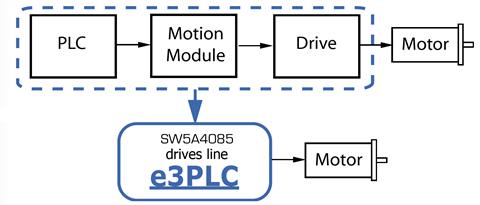

Fieldbus drives with autonomous functioning that, by integrating advanced PLC and motion controller functions in one single device, programmable by the user with the IDE for Windows PC and e3PLC, allows to reduce the traditional machine control solution.

Connections

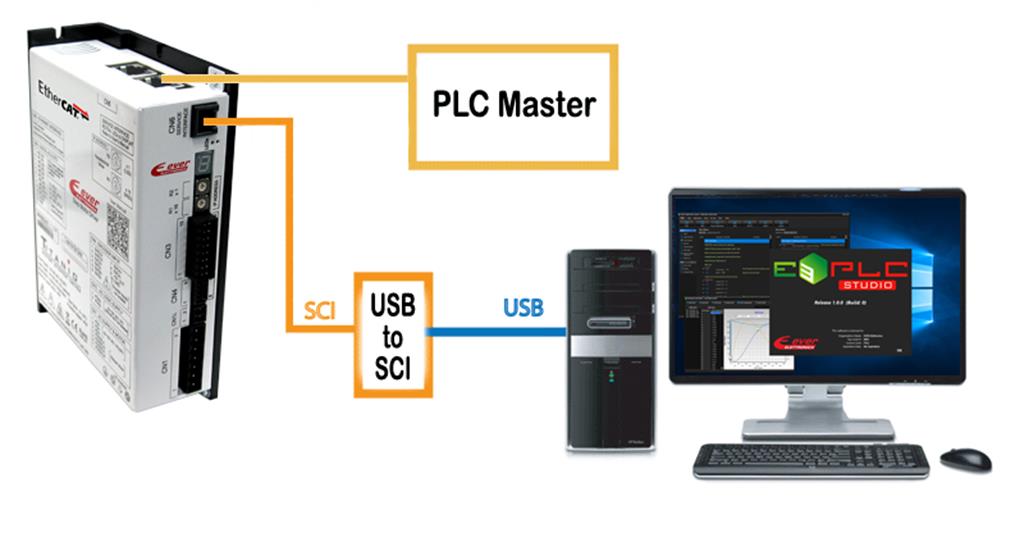

Connection for programming the unit and parameters configuration is made through SCI service serial interface and the IDE e3PLC Studio that allow easy and quick programming, a real time debug and a supervision of each system.

Fieldbus

Datasheet — PDF
