Article: 7811130
Brand: Fibox
4851.89 грн.
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
150.00 грн.
Pickup (Kyiv)
For free

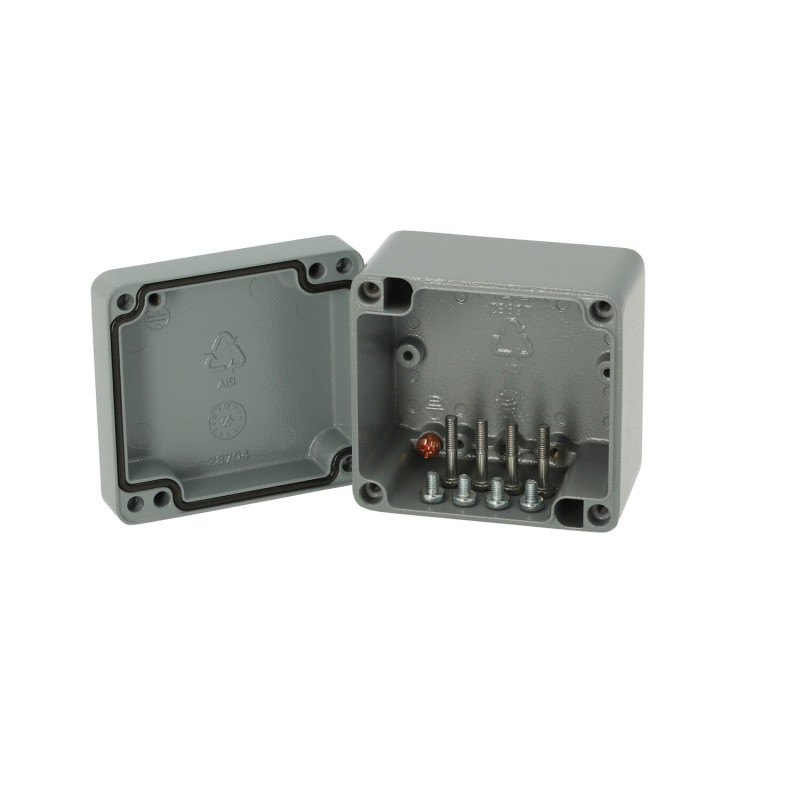

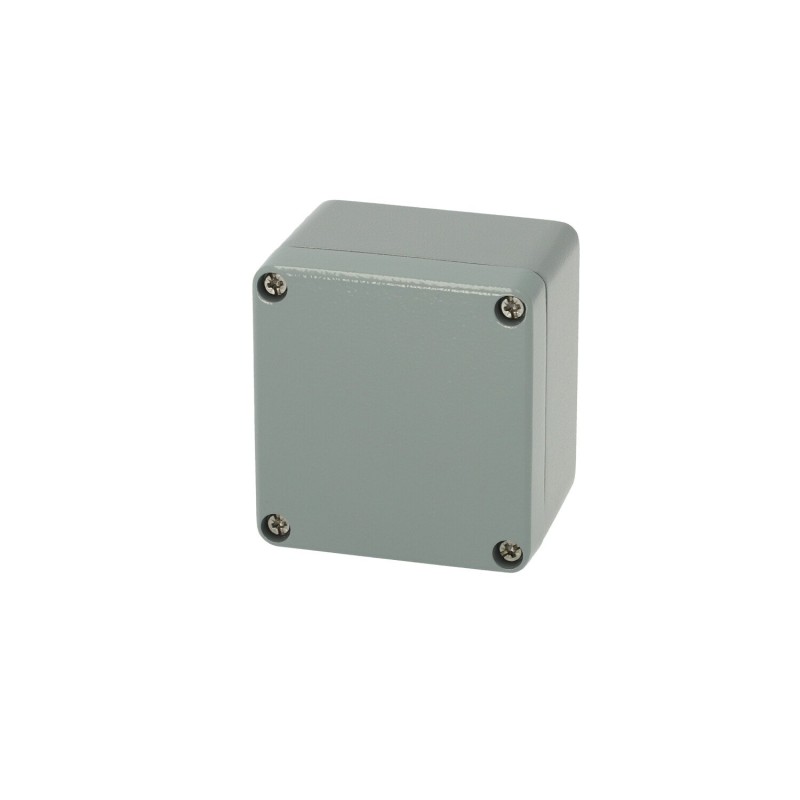

Description Enclosure, aluminium ALN 080806
UL Name : ALN UL 080806
Dimensions (mm) 82 x 77 x 57
Including :Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws. 2 grounding screws with washers assembled.
- IP66; IP67; IK08
Recommended torques: Mounting screws 2Nm, Cover screws 2Nm, Earthing screws 2Nm
Main attributes Enclosure, aluminium ALN 080806
Product
Description
Enclosure, aluminium
EAN
6418074016065
Package
4
Product nr
7811130
Remarks
Recommended torques: Mounting screws 2Nm, Cover screws 2Nm, Earthing screws 2Nm
Unit
Piece
Dimensions
Depth (mm)
57
Height (mm)
82
Width (mm)
77
Materials
Base colour
RAL_7001
Cover colour
RAL 7001
Gasket material
Polyurethane
Material
Aluminum
Temperatures
Temperature °C
-50 … 80
Ratings
Halogen free (DIN/VDE 0472, Part 815)
Yes
Impact Resistance (EN 62262)
IK08
Ingress Protection (EN 60529)
IP66IP67
UV resistance
UL 746C
