Magnetic Linear Transducer IMS

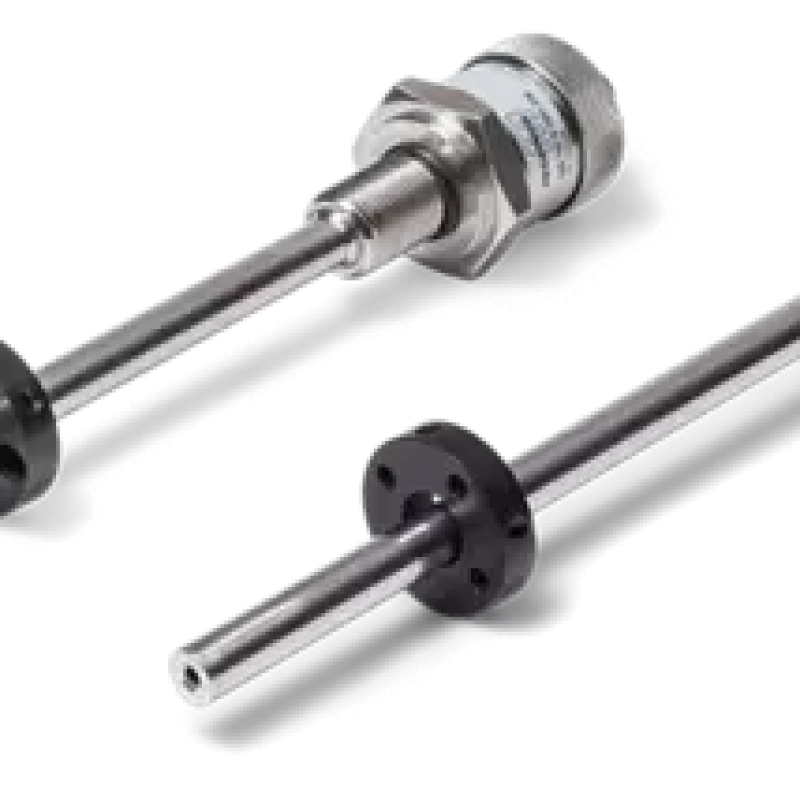

Description Magnetic Linear Transducer IMS

Absolute linear transducer with very high accuracy, IP67 protection and max. 500 bar peak for 50 to 2000 mm strokes

• Very accurate measuring principle up to 4000 mm
• Suitable for applications up to 500 bar peak
• IP67 for heavy-duty applications
• Absolute true power on signal

The displacement sensor is suitable for hydraulic applications up to 350 bar (500 bar peak). For mechanical integration, the housing provides a flange construction with a fitting gauge or thread. The mechanical detection of the linear movement is achieved by a cursor ring without pushrod. A special feature is the large vertical and horizontal tolerance of the free magnetic cursor. The position of the magnetic cursor is converted contactlessly into a linear absolute analogue signal. The very high accuracy is given by a linearity of ±0.02% and a high resolution of up to 10 µm. The IMS is also a high performer for measurement distances in excess of 300 mm. The non-contact measuring principle allows a very long life.
