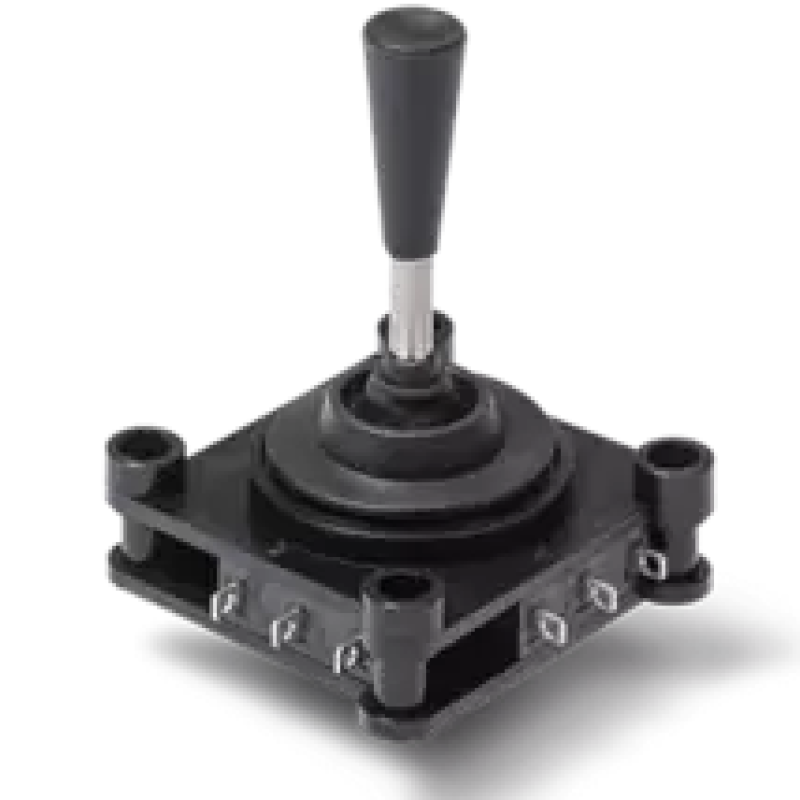

Description Switch Stick 851
Economical switch stick for one- or two-dimensional control
- Stable stainless steel shaft
- Small installation depth < 24 mm
- Spring return to centre position
- IP class 65 (above panel)
- Good cost/performance ratio
Reliable switching with spring return mechanism thanks to the 851 joystick with good price/performance ratio
The 851 switch sticks series are designed to be both functional and space-saving. Optimized mechanics, including a stainless steel metal shaft, combined with micro switches provide reliable switching for currents up to 10 A and voltages up to 240 V, while taking up less than 24 mm of space below the panel. The spring return mechanism ensures safe control of the application. Both a cross- and one-dimensional limiter are supplied with the shipment. Protection above the panel is IP65. Gold-plated contacts are available on request for use in corrosive environments.
Main attributes Switch Stick 851
Technical parameters
Supply voltage
Switches up to 250 VAC
Axes
1, 2
Return Mechanism
Spring Return
Output interface
Switch
Sealing above panel
IP65
Limiter plate
Delivered with square limiter, additional limiter elements supplied
Dimensions
Size
Fingertip Joystick
Housing depth under panel
≤ 20 mm
Technology
Technology
Switch
