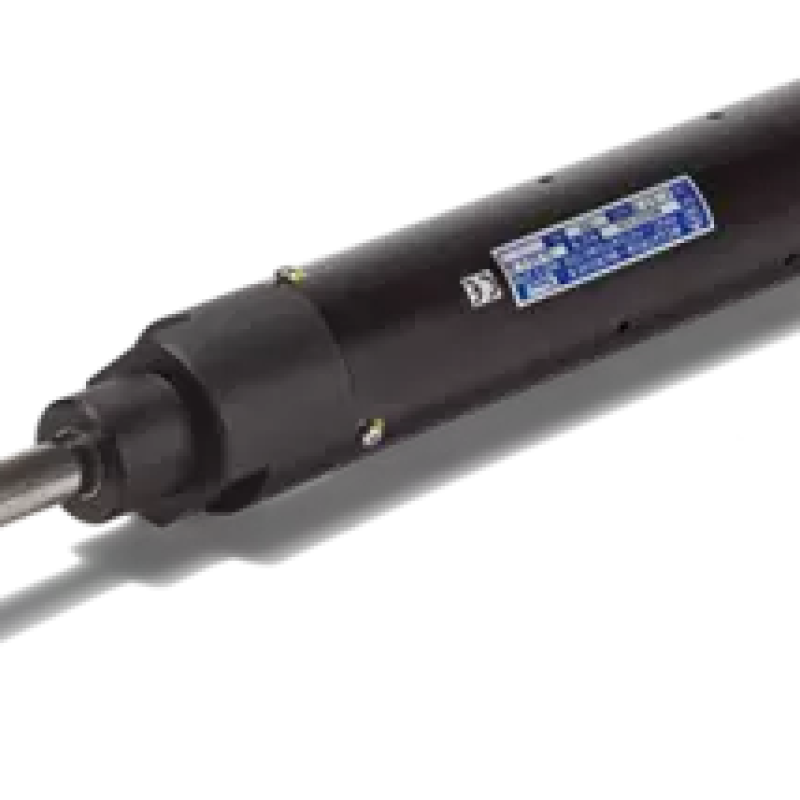

Description Potentiometric oil filled linear position sensor WGO40
Potentiometric linear position sensor with oil filling in measuring lengths of 100...500 mm for use in difficult environmental conditions
- Oil filling
- Hermetically sealed
- Measuring length 100…500
The WGO40 series is a hermetically sealed, oil filled wirewound linear potentiometer. The transducer is largely insensitive to environmental conditions, making it ideal for use in extreme environments.
Main attributes Potentiometric oil filled linear position sensor WGO40
Technical parameters
Resolution
Analogue stepped, dep. on resistance value
Protection class
IP55
Effective electrical travel
From 100 to 500 mm in 5 variants
Mechanical Detection Type
Front side rod without spring return
Electrical Outlet Type
Solder contacts, Round Cable, Connector
Electr. output signal
(voltage - potentiometric)
Ind. linearity (best)
±0.1% … ±0.5% (dep. o. travel & option)
Actuating speed
< 2 m/s
Supply voltage
Potentiometric
Dimensions
Mounting
Ball Joints
Minimum overall length
Medium (15 to 50 cm), Long (> 50 cm)
Temperatures
Max. operating temperature
60 °C
Min. operating temperature
-30 °C
Technology
Sensor technology
Potentiometric
