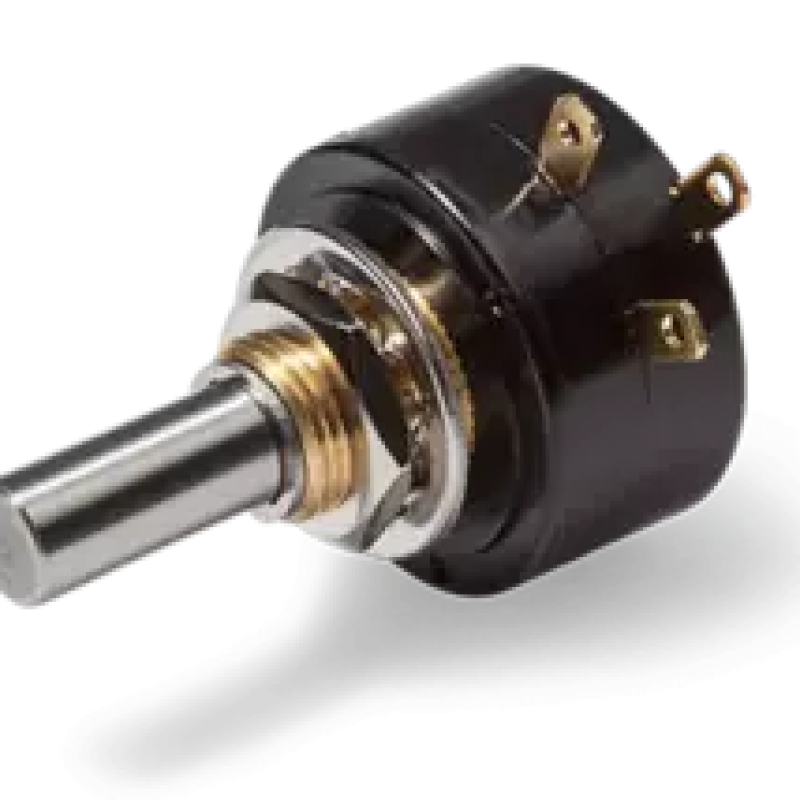

Rotary potentiometer RP19

Description Rotary potentiometer RP19

Compact rotary potentiometer with low installation depth

• With mechanical end stop 320°
• Compact sensor with 12 mm installation depth
• With many options

The RP19 rotary potentiometers in Ø22 mm housing are suitable for applications where a compact sensor with low installation depth is required.

The RP19 rotary potentiometer convinces by its accuracy and low installation depth. The radial gold-plated connection pins are suitable for flat connectors (2.8 mm according to DIN 46247 part 3).

• With mechanical end stop 320°
• Compact sensor with 12 mm installation depth
• A rotary potentiometer with many options

Options:

• Front shaft sealing
• Front shaft adjustment
• Screwdriver slot
• Improved Linearity
• Improved resistance tolerance
• Back shaft
• Center tap

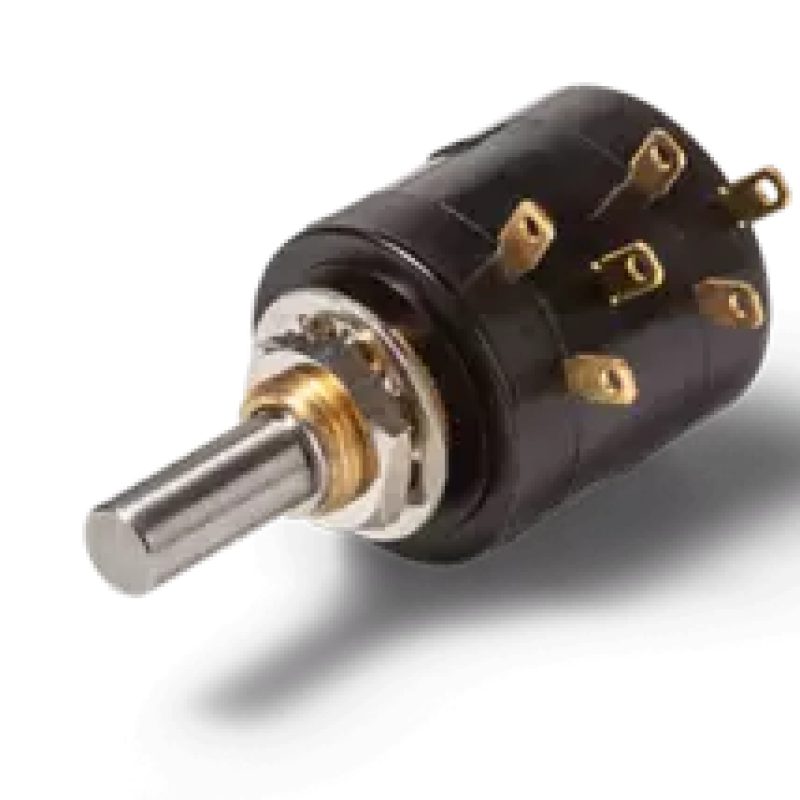

• Tandem version

We offer many adaptations on request: Multi ganged potentiometers, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.

Application example rotary potentiometer in mobile machines
