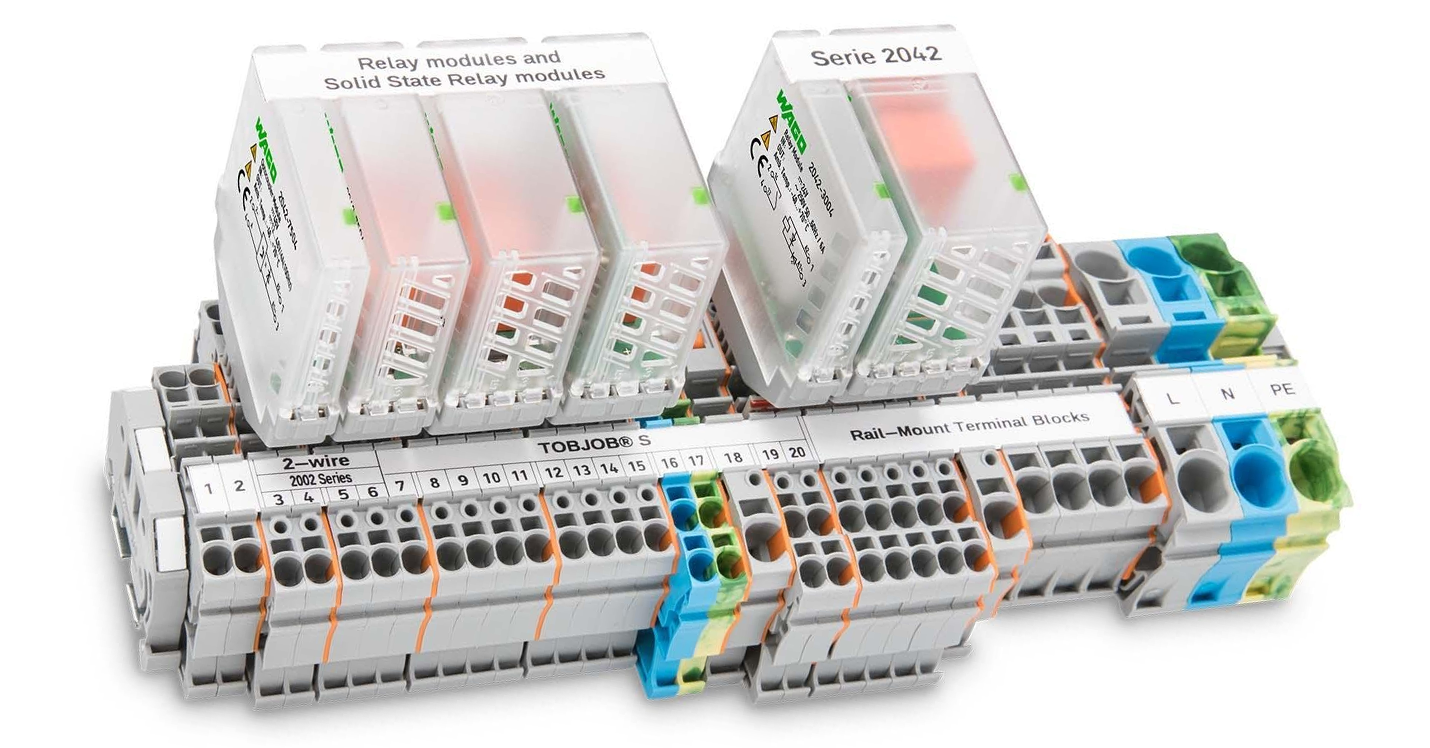

Taking Productivity to the Next Level with WAGO TOPJOB® S Rail-Mount Terminal Blocks

Contents:

• TOPJOB® S Rail-Mount Terminal Blocks Have Numerous Advantages:
• TOPJOB® S Product Family
• Rail-Mount Terminal Blocks with Levers, Push-buttons, or Operating Slots.
• Feedthrough Terminal Blocks.
• Distribution Terminal Blocks for Potential Distribution.
• Installation Terminal Blocks for Rail Mounting.
• Disconnect (Test) Terminal Blocks.
• Fuse Terminal Blocks.
• Current and Voltage Transformer Terminal Blocks.
• Sensor and Actuator Terminal Blocks.
• Diode and LED Terminal Blocks.
• Pluggable Diode and LED Modules.



TOPJOB® S Rail-Mount Terminal Blocks Have Numerous Advantages:

• actuation variants for any application: lever, push-button, or operating slot;
• Push-in CAGE CLAMP®: the universal connection technology for all conductor types;
• fast connection with push-in termination of solid, stranded, and fine-stranded conductors with ferrules;
• the multifunctional jumper range offers the right solution for any commoning task;
• the fast marking system saves time and money in all areas;
• industry-best safety margins: use a single rail-mount terminal block system worldwide for virtually any application;
• perfect coordination: TOPJOB® S Rail-Mount Terminal Blocks, marking, and the WAGO Smart Designer Configurator.



TOPJOB® S Product Family

With the expansion of the TOPJOB® S rail-mount terminal block range, you can now choose from three actuation variants: lever, push-button, and operating slot. You can choose the models that are best suited for your specific technical task.
Advantages:

• levers: all conductor types can be easily and intuitively connected and disconnected by hand;
• push-button: any standard tool can be used to open the clamping point with the push-button;
• operating slot: the operating tool remains in the operating slot as long as the open state exists.



Rail-Mount Terminal Blocks with Levers, Push-buttons, or Operating Slots.

Rail-mount terminal blocks are available in three different actuation variants: lever, push-button, or operating slot.
The marking system and multifunctional jumper range for the well-known TOPJOB® S rail-mount terminal blocks can also be used in the new rail-mount terminal blocks with levers.

Advantages:

• three actuation variants: lever, push-button, operating slot;
• continuous marking capability;
• one TOPJOB® S jumper range for all three variants;
• Push-in connection technology: direct insertion of solid and fine-stranded conductors with ferrules;
• testing for all variants.



Feedthrough Terminal Blocks.

TOPJOB® S feedthrough terminal blocks are available in single-, double-, and triple-deck versions, as well as four-deck terminal blocks, for example, for electric motor wiring.

Advantages:

• single-deck terminals connect wires from 0.14 mm² to 25 mm²;
• clear identification thanks to central slots for continuous multi-line marking strips and WMB markers;
• Ex i and Ex e versions available for use in hazardous areas;
• variants approved for rated voltages of 800 V (IEC) and 600 V (UL).



Distribution Terminal Blocks for Potential Distribution.

TOPJOB® S distribution terminal blocks provide extremely compact voltage distribution over a distance of just 9 mm using a single terminal block. The terminal blocks are mainly used in applications where many signals need to be connected in a very small space, for example, in the processing industry, marine and offshore sectors, railway systems, and the manufacturing industry.

Advantages:

• compact design saves space;
• molded conductor entry marking for CAE-compliant marking of connection points;
• easy identification of potentials thanks to different terminal block colors;
• the perfect complement to power supplies and electronic circuit breakers;
• can be combined with all TOPJOB® S Series 2001 rail-mount terminal blocks and accessories (jumpers, marking strips, etc.).



Installation Terminal Blocks for Rail Mounting.

For greater efficiency, system protection against errors is essential. WAGO's installation terminal blocks for rail mounting simplify insulation resistance measurement according to standards in fire-hazardous locations and public buildings, while cutting testing time in half.

Advantages:

• extremely robust terminal blocks with the industry's highest current-carrying capacity;
• save time and money with continuous marking strips of up to three lines;
• combination into one jumper slot saves space;
• CAGE CLAMP® for solid, stranded, and fine-stranded conductors with ferrules.



Disconnect (Test) Terminal Blocks.

Disconnect (test) terminal blocks allow for quick and safe circuit disconnection. The orange-colored knife disconnects or disconnect plugs are located between the conductors and are always visible to the operator.

Advantages:

• alternative disconnection options: via a pivoting knife disconnect with an optional mechanical lock or via a disconnect plug;
• space-saving thanks to double-deck terminal blocks with a double disconnect: two potential-free disconnect terminals on two levels;
• convenient testing for possible ground faults with terminal blocks featuring a ground conductor disconnect;
• also suitable for use in the renewable energy sector with voltages up to 1500 VDC (2006 Series);
• same profile as the corresponding feedthrough terminal blocks for clear organization;
• wide range of jumpers for safe and economical circuit connection.



Fuse Terminal Blocks.

TOPJOB® S fuse terminal blocks protect electrical circuits from short circuits and ensure system reliability. These fuse terminal blocks are designed for miniature or blade-type fuses.

Advantages:

• terminal blocks can be assembled into strips;
• safe and easy fuse replacement;
• an optional LED indicator quickly identifies blown fuses;
• fuse terminal blocks can be created using carrier terminals and fuse plugs without significant time and effort for assembly and wiring.



Current and Voltage Transformer Terminal Blocks.

TOPJOB® S current transformer (disconnect/test) terminal blocks are designed for current transformer circuits. These terminal blocks are suitable for safe, automatic short-circuiting, as well as for simple measurements.:

Advantages:

• jumper slot at the top of the device to activate the short-circuit path;
• intuitive and convenient use;
• the open, touch-proof design indicates the exact switching status;
• high functionality with a compact design;
• all 2007 Series terminal blocks are rated for 30 A/500 V (IEC) and 300 V (UL).



Sensor and Actuator Terminal Blocks.

TOPJOB® S sensor and actuator terminal blocks are suitable for connecting modern machine control systems. The small spacing between terminal blocks makes them ideal for compact terminal boxes within the decentralized system periphery, as well as for centralized installation in the control cabinet.

Advantages:

• accommodate multiple sensors in the smallest possible space with a spacing of just 3.5 mm (0.138 inches) per sensor;
• commoning with standard jumpers – with no pole number limitation;
• color-coded jumpers simplify potential identification;
• clear organization thanks to multi-line marking strips that do not cover the jumper slot;
• easy to read in any terminal block mounting position thanks to two marking slots;
• simple identification: LEDs, jumpers, and markers are always visible – even when wired.



Diode and LED Terminal Blocks.

Diode terminal blocks have been specially developed for custom diode circuits, such as lamp test circuits and collective fault signaling circuits. Using LED terminal blocks, monitoring units can be designed for control and monitoring circuits.

Advantages:

• high wiring density with a width of just 5.2 mm (0.205 inches);
• plug-in type jumpers allow for the creation of individual circuits;
• double- and triple-deck diode and LED terminal blocks expand circuit design possibilities.



Pluggable Diode and LED Modules.

Pluggable diode and LED modules simplify the creation of specialized functional units – without additional time and effort for assembly and wiring. Two basic versions of each module are available: modules that can be inserted into the contacts of adjacent disconnect terminal blocks, and variants that can be inserted into the jumper sockets of standard feedthrough terminal blocks. In addition, empty component plug housings for carrier terminals can be individually equipped with resistors, diodes, or other components.

Advantages:

• no additional time and effort for assembly and wiring;
• separation into connection and functional levels;
• modules can be quickly replaced with other types – pluggable modules for feedthrough terminal blocks are ideal for simple retrofitting of existing systems;
• insulation displacement connection (IDC) simplifies the assembly of empty component plug housings – no soldering required;
• marking with marking strips or WMB markers.
