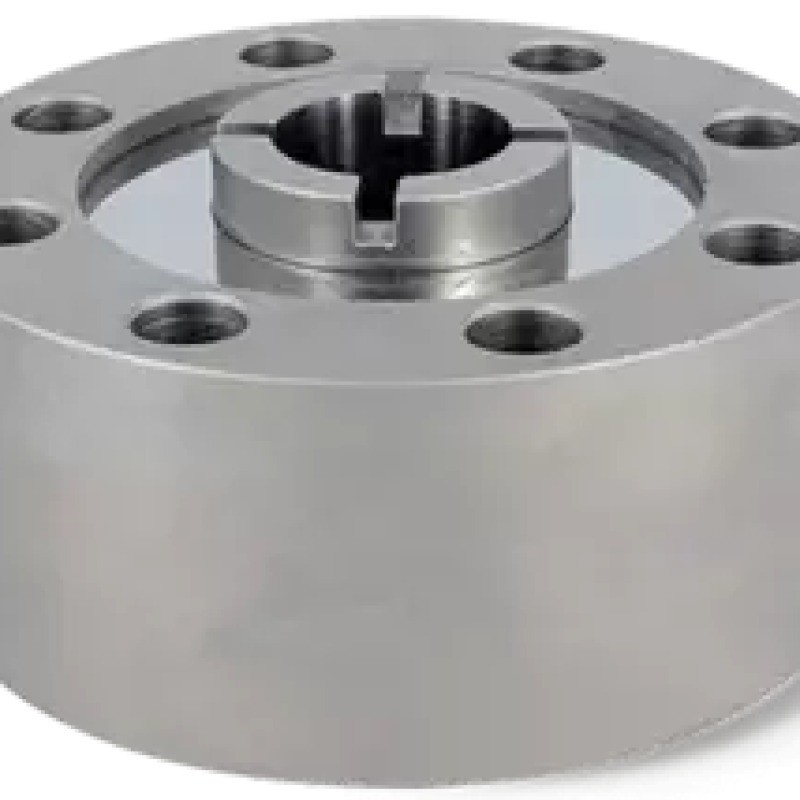

Load cell - pancake KMC130

Description Load cell - pancake KMC130

Load cells up to 300 kN with large contact surface and force transmission via through hole with groove in 2 housing sizes Ø130/182 x 55/88 mm

• Measuring range 0…300 kN
• Force transmission via through hole with groove
• 2 housing sizes
• Strain gauge
• Steel alloy
• Protection class IP66

The KMC130 force transducers are load cells (called pancakes or compression discs) with a large contact area for better force distribution. They have IP66 protection and are suitable for forces up to 300 kN. The load cells are available in 2 versions depending on the load. The force is applied via the Ø32 / 39 mm through hole with groove. The measuring body is made of steel and protected against corrosion (nickel-plated). Despite the high forces, the force sensor has a low overall height. The sensor is supplied calibrated including measurement protocol and has a 3-metre-long connection cable. The load cell is commonly used in presses, testing machines, truck scales and large container and hopper scales.
