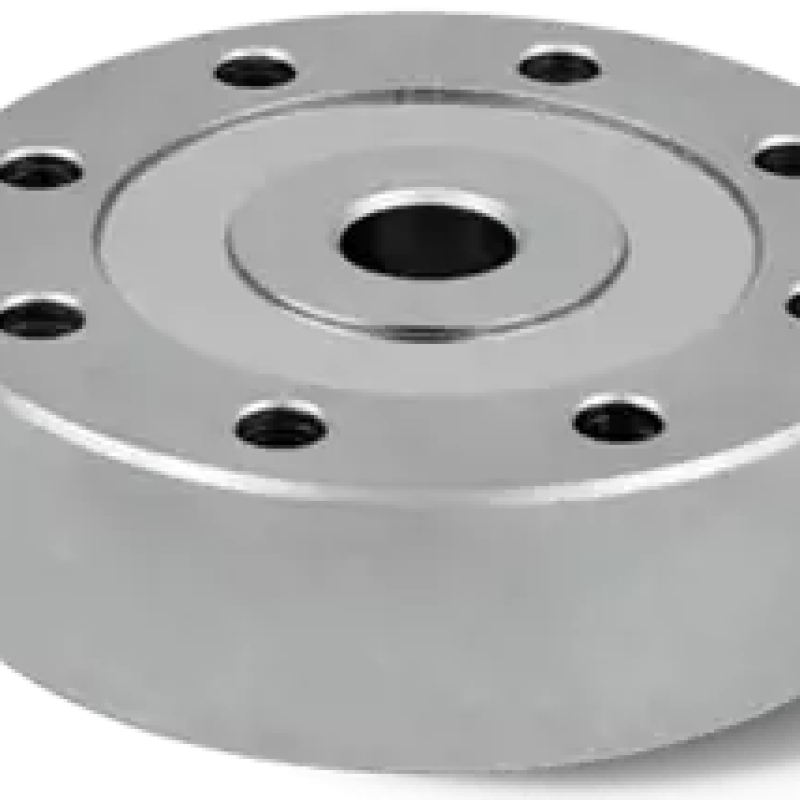

Load cell - pancake KMC180

Description Load cell - pancake KMC180

Load cell up to 300 kN with large contact surface and force transmission via through hole in Ø180 x 53 mm housing

• Measuring range 0…300 kN
• Force transmission via through hole
• With large contact surface
• Strain gauge
• Steel alloy
• Protection class IP66
• Calibration including measurement data

The KMC180 force transducers are designed with a large contact area for better force distribution. The load cells (called pancakes or compression discs) are IP66 and for forces up to 300 kN. The force is applied via the Ø30 mm through hole. The measuring body is made of steel and protected against corrosion (nickel plated). Despite the high forces, the load cell has a low overall height. The load cell is supplied calibrated with a test report and has a 3-metre connection cable. The sensor is commonly used in presses, testing machines, truck scales and large container and hopper scales.
