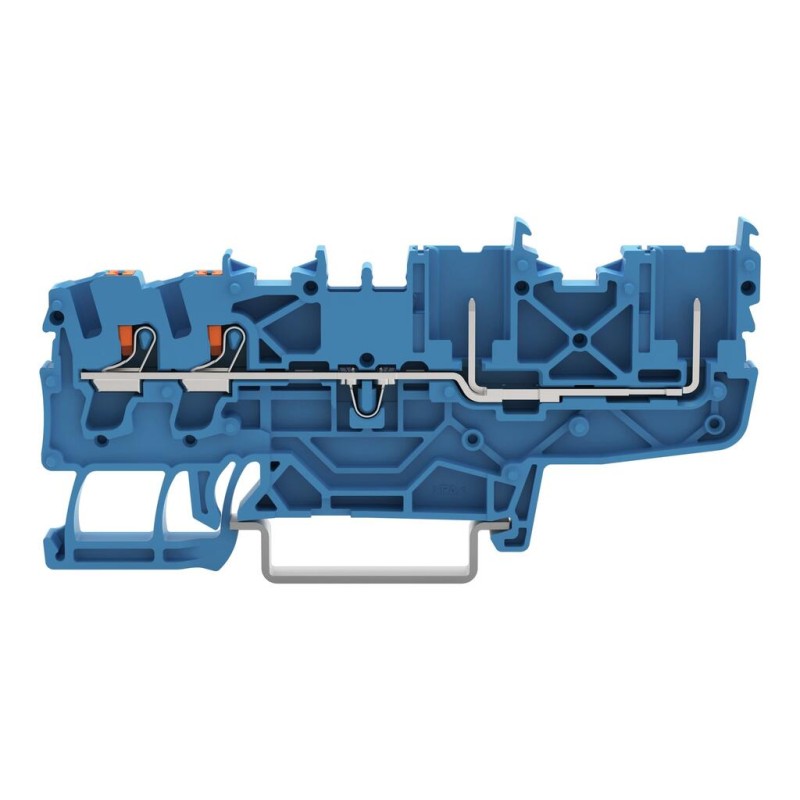

Description 2222-1404/999-953 2-conductor/2-pin carrier terminal block;with push-button;2.5 mm²;blue
Our 2-conductor/2-pin carrier terminal block (item number 2222-1404/999-953) simplifies electrical installations. Ensure that the strip lengths are between 10 and 12 mm when connecting conductors to 2-conductor/2-pin carrier terminal block. Pluggable rail-mount terminal blocks are primarily found in switchgear units and control systems, most notably in railroad technology. These innovative systems combine the properties of rail-mount terminal blocks and connectors for a flexible and reliable wiring system. You also have the option of pre-assembling installations, which not only makes production but also installation, operation, and maintenance more efficient and cost-effective. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. 2-conductor/2-pin carrier terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm².
This pluggable rail-mount terminal block is operated with a push-button. This product is designed for specific Ex applications (please refer to the product datasheet).
Main attributes 2222-1404/999-953 2-conductor/2-pin carrier terminal block;with push-button;2.5 mm²;blue
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
Push-in CAGE CLAMP®
Fine-stranded conductor
0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination
1 … 2.5 mm² / 18 … 14 AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5 mm² / 22 … 14 AWG
Nominal cross-section
2.5 mm²
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Solid conductor
0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination
0.75 … 4 mm² / 18 … 12 AWG
Strip length
10 … 12 mm
Wiring direction
Front-entry wiring
Connection data
Clamping units
2
Female plug slots
2
Number of levels
1
Total number of potentials
1
Environmental requirements
Continuous operating temperature
-60 … +105 °C
Processing temperature
-35 … +85 °C
Material data
Color
blue
Fire load
0.209 MJ
Flammability class per UL94
V0
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
9.5 g
Mechanical data
Marking level
Center/side marking
Mounting type
DIN-35 rail

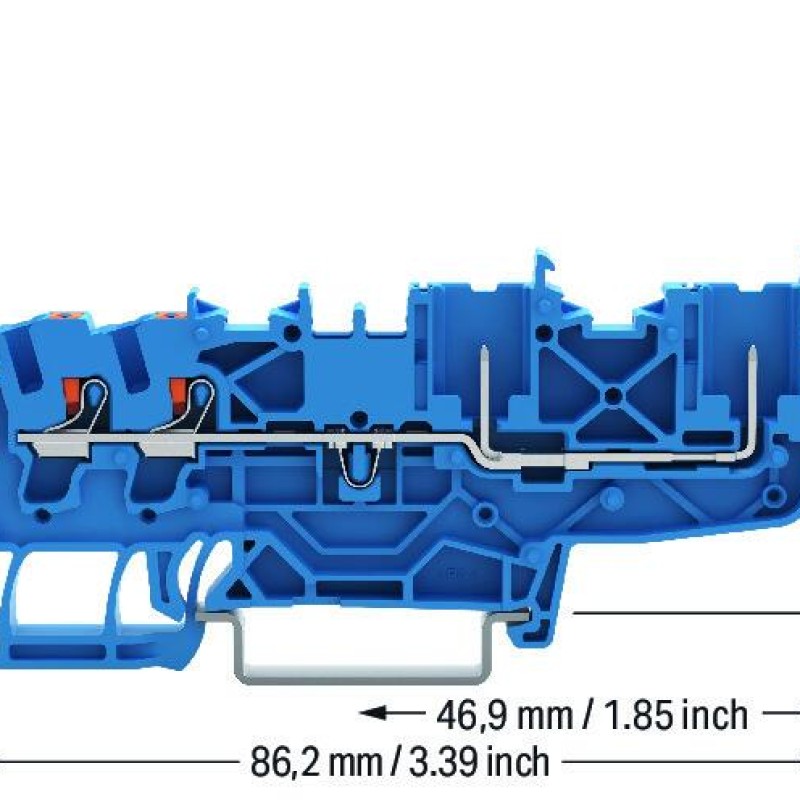

Physical data
Depth from upper-edge of DIN-rail
36.4 mm
Height
86.2 mm
Width
5.2 mm
