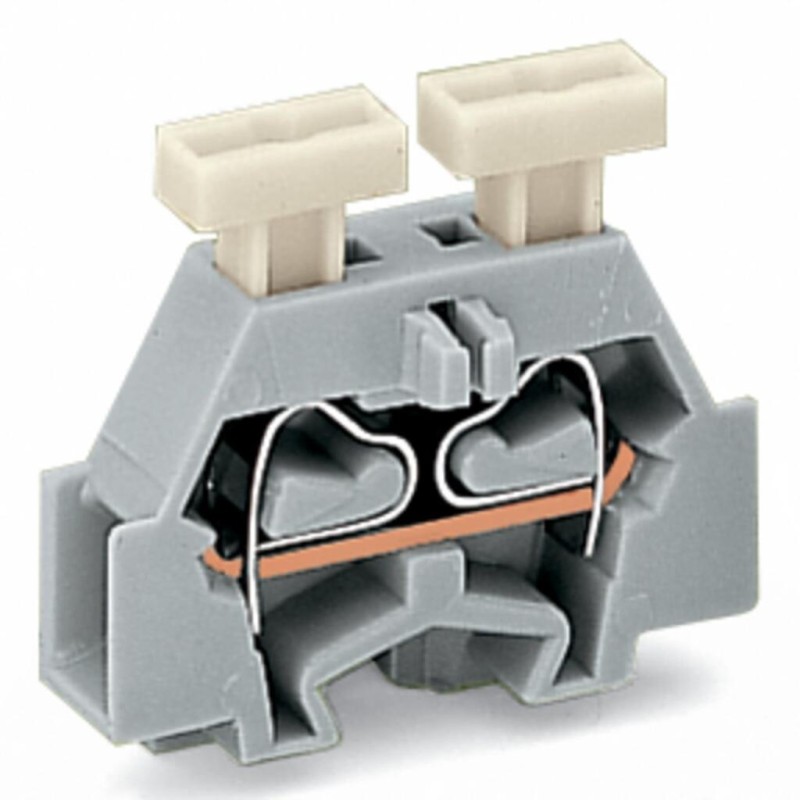

Description 261-313/341-000 2-conductor terminal block;on both sides with push-button;with snap-in mounting foot;light gray
Our through terminal block (item number 261-313/341-000) is the ideal way to connect conductors quickly and securely. Strip lengths must be between 8 and 9 mm when connecting conductors to this through terminal block. Whether for use in industry or building installations, our rail-mount through terminal blocks allow you to quickly and securely connect electrical conductors. They’re perfect for either classic through-wiring or distributing potential, depending on the variant. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection provides a convenient and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The dimensions are (6 x 28 x 27.7) mm (width x height x depth). Depending on the conductor type, this through terminal block is designed for conductor cross sections ranging from 0.08 mm² to 2.5 mm².
A push-button is used to operate this mini rail-mount terminal block.
Main attributes 261-313/341-000 2-conductor terminal block;on both sides with push-button;with snap-in mounting foot;light gray
Connection 1
Actuation type
Push-button
Connectable conductor materials
Copper
Connection technology
CAGE CLAMP®
Fine-stranded conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Pole number
1
Solid conductor
0.08 … 2.5 mm² / 28 … 14 AWG
Strip length
8 … 9 mm
Wiring direction
Side-entry wiring
Connection data
Clamping units
2
Number of levels
1
Total number of potentials
1
Material data
Color
light gray
Fire load
0.066 MJ
Flammability class per UL94
V0
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Material group
I
Weight
2.6 g
Mechanical data
Design
horizontal type
Marking level
Side marking
Mounting type
Snap-in foot
Physical data
Depth
28.1 mm
Height from the surface
23.3 mm
Width
6 mm
