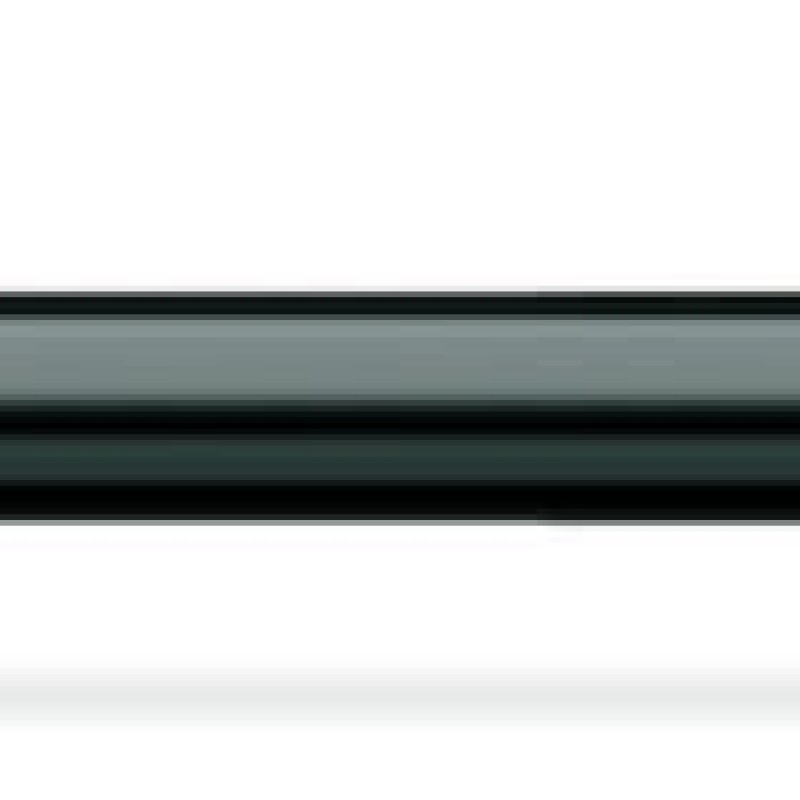

771-9393/166-501 pre-assembled connecting cable;Cca;Socket/open-ended;black

Name: 771-9393/166-501 pre-assembled connecting cable;Cca;Socket/open-ended;black
Brand: Wago
Price: 1012.20 UAH
Availability: OutOfStock

New

Pre-Order

Date Available: 28/06/2026

Article: 771-9393/166-501

Brand: Wago

1,012.20 грн.

Found it cheaper?

Short description

Cable assembly WINSTA® MIDI 3-poleUse effective pluggable connections instead of laborious screw connections: With the WINSTA® MIDI cable assembly rated current 16 A. On PCBs, in control cabinets or for connecting lights...

Description 771-9393/166-501 pre-assembled connecting cable;Cca;Socket/open-ended;black

Cable assembly WINSTA® MIDI 3-pole

Use effective pluggable connections instead of laborious screw connections: With the WINSTA® MIDI cable assembly rated current 16 A. On PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to establish connections according to an enormous variety of requirements in seconds. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). Standard mains applications for almost any domain of use can be realised with WINSTA® MIDI pluggable installation connectors with A coding. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in can be found in a variety of projects you can use for quick, easy, secure, tailored installation. If you need to meet stricter safety standards, you should use cables with fire class C. These are suitable for use in buildings with particularly high demands on safety. In the manufacturing of this cable assembly, we eliminated the use of halogen. That is an important contribution to climate protection.

Fast, secure pluggable connections – cable assemblies from WAGO

The cable assembly is equipped with a socket and a free end. The WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO.

pluggable installation connectors with protection against mismating
for automation controllers
with A coding for a great number of applications
ready to install and use immediately
fast, secure installation

Main attributes 771-9393/166-501 pre-assembled connecting cable;Cca;Socket/open-ended;black

Connection 1

Connection type Socket - Free end

Pole number 3

Strip length 9 mm

Strip length (outer insulation) 55 mm

Wire cross-section 1.5 mm²

Connection data

Conductor preparation ultrasonically tip-bonded

PE function Preceding PE contact

Total number of potentials 3

Environmental requirements

Continuous operating temperature -35 … +85 °C

Note on continuous operating temperature Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C

Processing temperature -5 … +40 °C

Material data

Color black

Connector color black

Contact material Copper or copper alloy; surface-treated

Contact plating Tin

Copper weight of the pipe 0.043 kg/m

Fire class per EN 50575 C_ca

Fire load 48.656 MJ

Flammability class per UL94 V0

Halogen-free Yes

Insulation material (main housing) Polyamide (PA66)

Printing color of sheathed cable white

Printing color of strain relief white

Rubber cable No

Sheath material Halogen-free

Sheathed cable color black

Silicon-free Yes

Strain relief color black

Weight 516.2 g

Mechanical data

Cable type H05Z1Z1-F 3G1.5

Coding A

Connection type Socket - Free end

Marking L ⏚ N

Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)

Number of mating cycles 200, without resistive load

Potential marking L ⏚ N

Protection type IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Retention force of a plug-in connection when locked: > 80N

Type of pre-assembled cable Connecting cable

Unmating force of a plug-in connection when unlocked: approx. 20 … 70 N (depending on pole number)

Use General mains applications

Variable coding Yes

Physical data

Height 12.9 mm

Pin spacing 10 mm

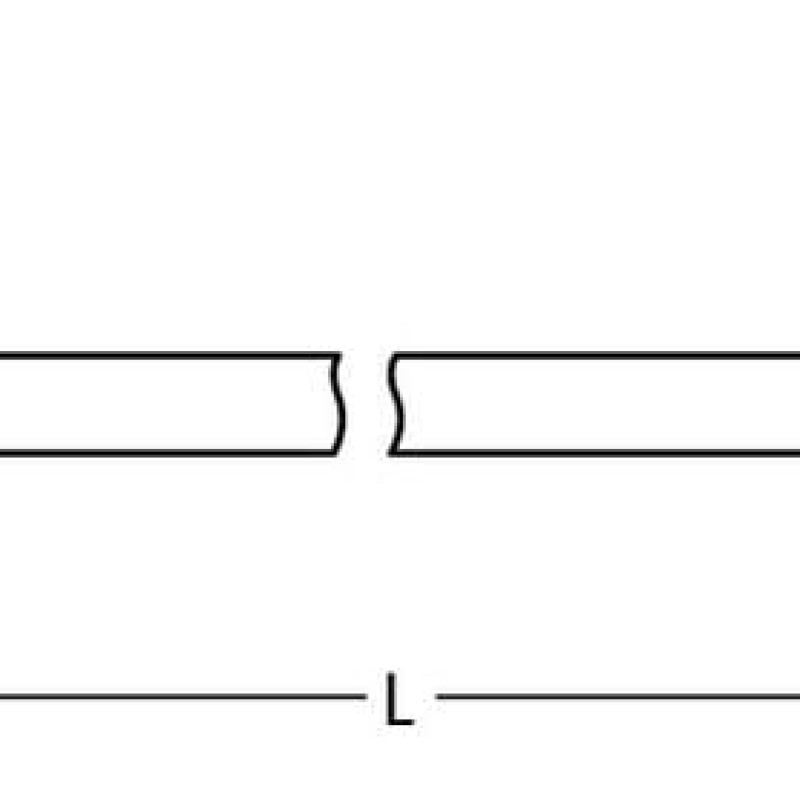

Total length 5 m

Width 27 mm

Plug-in connection

Locking lever Can be retrofitted

Locking of plug-in connection locking lever

Mismating protection Yes

Note on locking system All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers

Note on mismating protection All WINSTA^® components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180  
c.) plugging while laterally staggered
d.) plugging one pole 
