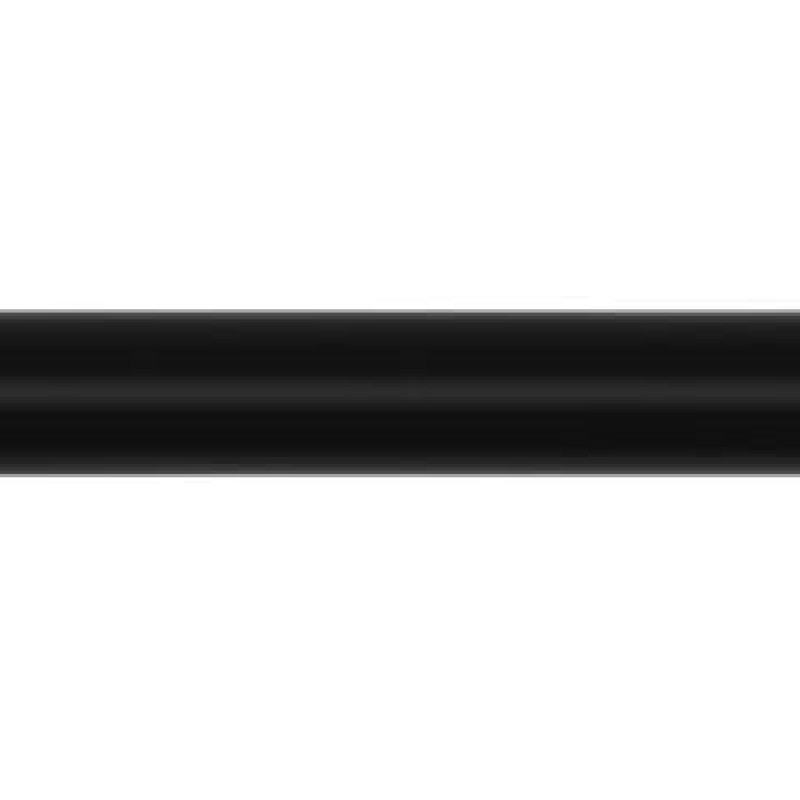

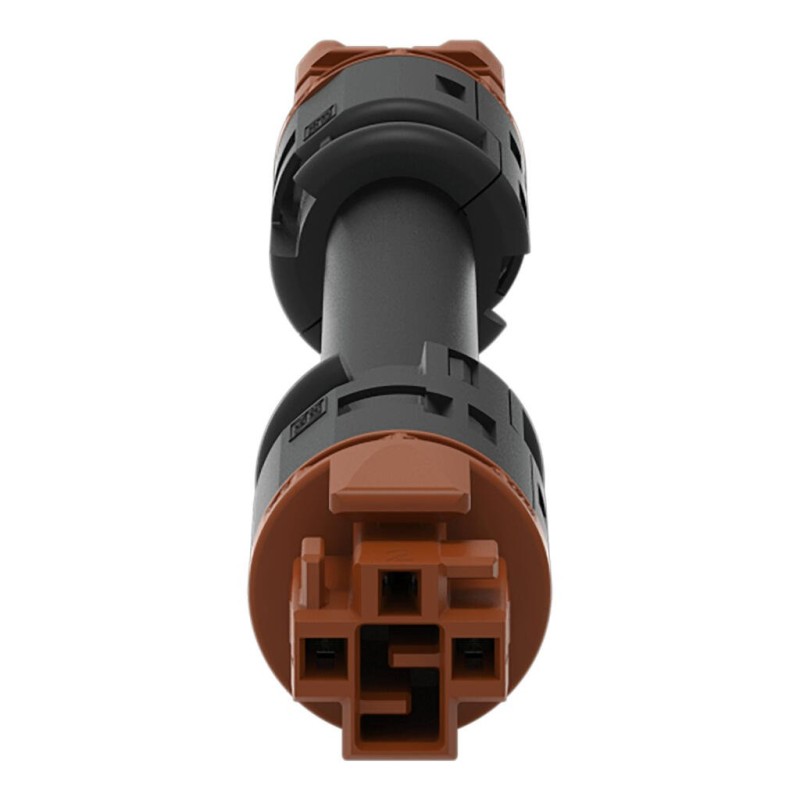

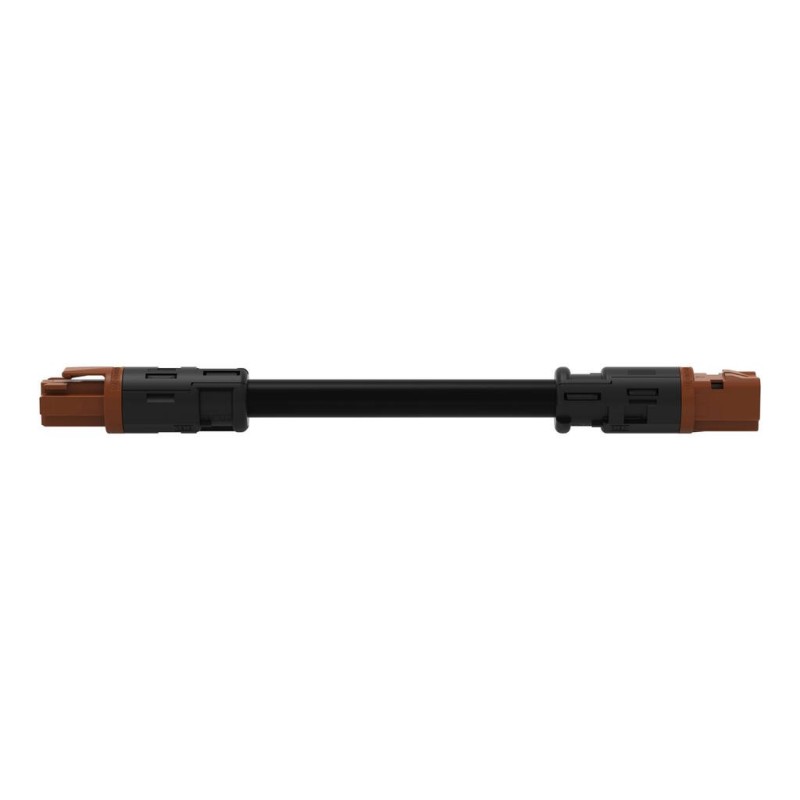

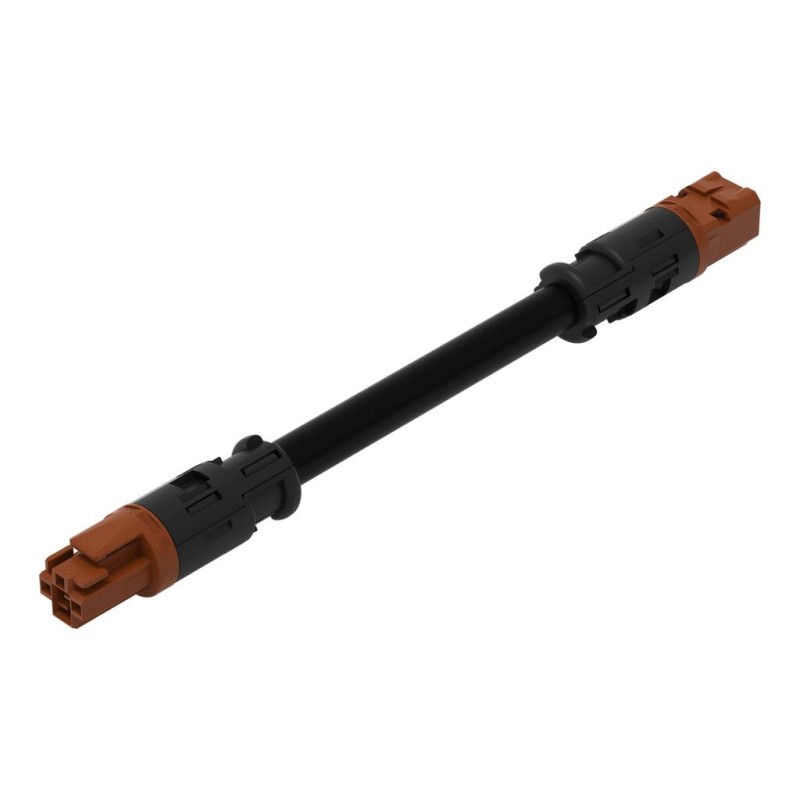

Description 774-9973/016-405 pre-assembled interconnecting cable; Eca; Socket/plug; 3-pole; Cod. S; H05Z1Z1-F 3x1,5 mm²; 4 m; 1,50 mm²; brown
Cable assembly WINSTA® RD with protection against mismating
The WINSTA® RD cable assembly 3-pole supports fast, reliable installation. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). The WINSTA® RD offers a round design that is very good for use in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector. This product meets all the mandatory fire protection requirements of fire class E; thus it can be used in areas where fire safety is relevant. The cable assembly is halogen-free. This eliminates the addition of environmental pollutants during production. It also achieves a higher fire class, since halogen-free materials do not easily ignite.
Fast, error-free assembly thanks to cable assemblies from WAGO
The cable is pre-assembled with a socket and a plug. The WINSTA® Pluggable Connection System is ideally tailored to the strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Use of this pre-assembled system reduces time spent on assembly and installation errors at the construction site. Now you can also cut installation costs without compromising safety and quality: with protection type IP20 reduces the need for servicing and prevents unnecessary downtime.
- effective protection against mismating
- products perfectly tailored to your requirements guarantee safe use
- with S coding for AC applications of distributed components
- ready to install and use immediately
- rapid, structured electrical installation
Main attributes 774-9973/016-405 pre-assembled interconnecting cable; Eca; Socket/plug; 3-pole; Cod. S; H05Z1Z1-F 3x1,5 mm²; 4 m; 1,50 mm²; brown
Connection 1
Connection type
Socket - Plug
Pole number
3
Wire cross-section
1.5 mm²
Connection data
Total number of potentials
3
Environmental requirements
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Insulating parts for temperatures ≤ 105 °C
Processing temperature
-5 … +40 °C
Material data
Color
brown
Connector color
brown
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Copper weight of the pipe
0.043 kg/m
Fire class per EN 50575
Eca
Fire load
118.738 MJ
Halogen-free
Yes
Insulation material (main housing)
Polyamide (PA66)
Printing color of sheathed cable
white
Rubber cable
No
Sheath material
Halogen-free
Sheathed cable color
black
Silicon-free
Yes
Strain relief color
black
Weight
399.1 g
Mechanical data
Cable type
H05Z1Z1-F 3x1.5
Coding
S
Connection type
Socket - Plug
Marking
1 2 L
Mating force of a plug-in connection
approx. 30 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Retention force of a plug-in connection
when locked: > 80N
Type of pre-assembled cable
Interconnecting cable
Unmating force of a plug-in connection
Unlocked: approx. 30 … 70 N (depending on pole number)
Use
Switching function
Variable coding
No
Physical data
Height
17.5 mm

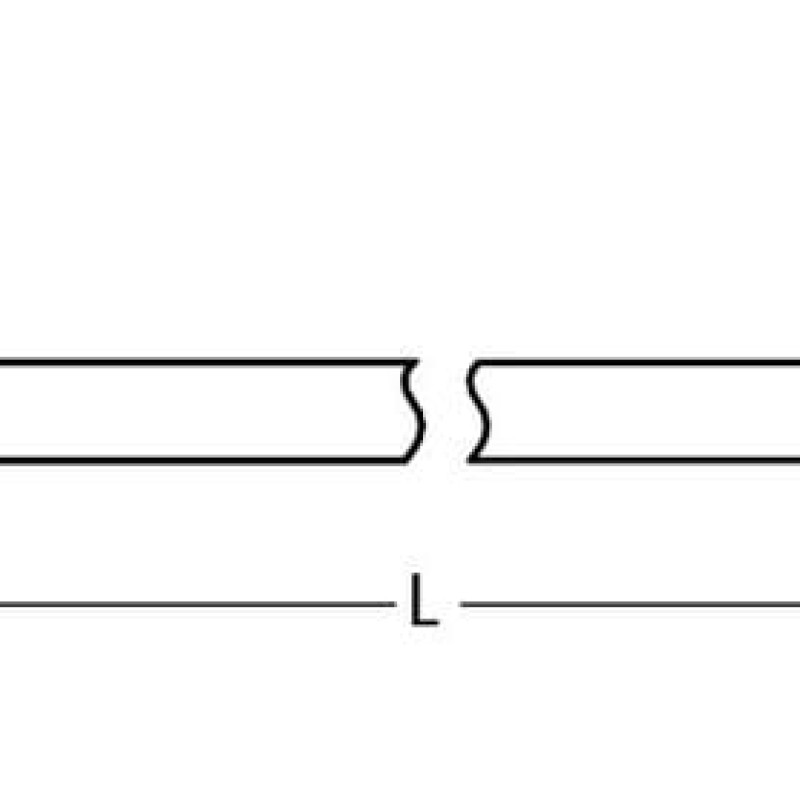

Total length
4 m
Width
17.5 mm
Plug-in connection
Locking lever
yes
Locking of plug-in connection
locking lever
Mismating protection
Yes
Note on mismating protection
All WINSTA® components are 100% protected against mismating
when:
a.) plugging different numbers of poles
b.) plugging while incorrectly rotated
c.) plugging while laterally staggered
a.) plugging different numbers of poles
b.) plugging while incorrectly rotated
c.) plugging while laterally staggered
